DGX-I-DXL

Enova® DGX DXLink™ Twisted Pair Input Board

Limited Availability
Larger Images

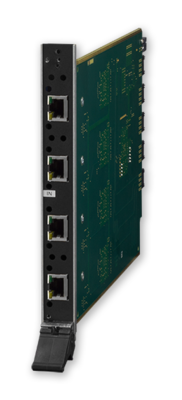

The DGX-I-DXL is a HDCP compliant twisted pair cable input board for the Enova DGX 8, 16, 32 and 64 Digital Media Enclosures. It has four connections per board designed to receive audio and video from DXLink Twisted Pair Transmitters while passing bi-directional control and Ethernet signals over one standard twisted pair cable up to 100m. DXLink Power is available from the DXLink Input Board to power DXLink Twisted Pair Transmitters.
