RMBK-1001
Tidak diproduksi

10.1” AMX RoomBook Scheduling Touch Panel

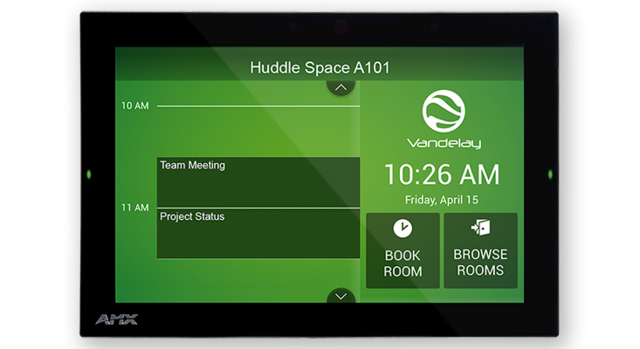

RMBK-1001_Front
Gambar Lebih Besar

Produk Pengganti

  • ACB-2110

    ACB-2110

    Panel Sentuh Penjadwalan Acendo Book 10.1"

The AMX RoomBook 10.1" Touch Panel is a standalone scheduling panel that integrates directly with popular room scheduling software like Microsoft Exchange, Office 365, and Google Calendar without additional system hardware requirements. The user interface background color and built-in room availability bars change between red and green to show room availability so users can easily locate and book an available room directly from the panel and, if that room is currently booked, users can quickly locate the nearest available room or the next available time with ease.

Leveraging the style and cost-efficiency of our award winning Modero S Series Touch Panel, RMBK-1001 includes SmoothTouch™ Technology, a brilliant full-color high-resolution display, wide viewing angle of screen and availability bar LEDs, and a low profile design for a subtle aesthetic. The RMBK-1001 can be mounted on any flat surface, including glass or stone, inside or outside a conference room or classroom.

RMBK-1001 is easy to install using a one-time, panel-based configuration wizard, to get the panel operational in a matter of minutes with minimal training.

Keterangan Lebih Lanjut

Ideal for small/medium businesses wishing to optimize room utilization by implementing facility-wide room scheduling on a budget

Unduhan

Dokumen
  Ukuran Diunggah
file type icon Data Sheet
diperbarui: Apr 2026
284 KB Apr 2026
CAD Drawings
  Ukuran Diunggah
278 KB Okt 2020
1,86 MB Okt 2020
BIM Objects
  Ukuran Diunggah
file type icon RMBK-1001 - BIM Object
diperbarui: Agu 2019
Agu 2019
Firmware
  Versi Ukuran Diunggah
1.1.22   159 MB Agu 2018
1.3.49   171 MB Okt 2019
Quick Start Guides
  Ukuran Diunggah
796 KB Mar 2018

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Fitur

  • Standalone Scheduling Panel that's Quick and Easy to Install – Reduces cost by streamlining installation, simplifying configuration, and eliminating the need for a controller and monitoring software
  • Directly Integrates with Microsoft Exchange, Office 365 and Google Calendar – Synchronizes with the most popular scheduling platforms without additional software or configuration complications
  • Based on Modero S Hardware – Provides all the benefits of our most popular Modero S Scheduling Panels including award-winning industrial design, SmoothTouch™ Technology, and brilliant full-color display
  • On-Panel Room Booking – Quickly book available rooms directly from the panel
  • Diverse Mounting Options – Mount the panel virtually anywhere, including glass
  • Available Room Locator – Panel will suggest other currently available rooms at the push of a button
  • Availability Indicators on the Front and Sides of the Panel – 180 degree Visibility allows users to easily determine whether the room is currently available

Spesifikasi

Display Size (WH) 9.1" x 5.9" (230 mm x 149 mm), 10.8" (274 mm) diagonal
Viewable Area (WH) 8.5" x 5.4" (217 mm x 136 mm ), 10.0" (256 mm) diagonal
Resolution 1280x800
Viewing Angle Vertical: ± 85°, Horizontal: ± 85°
Aspect Ratio 16:9
Touch Overlay Resistive
Front Panel Components Sleep Button, Programmable Red/Green LEDs. See Data Sheet for details.
Power Consumption Full-On: 14.5 W (max)
FG Numbers FG2265-40
