EXB-COM2 (停产)

 ICSLan 串联接口,2 个端口

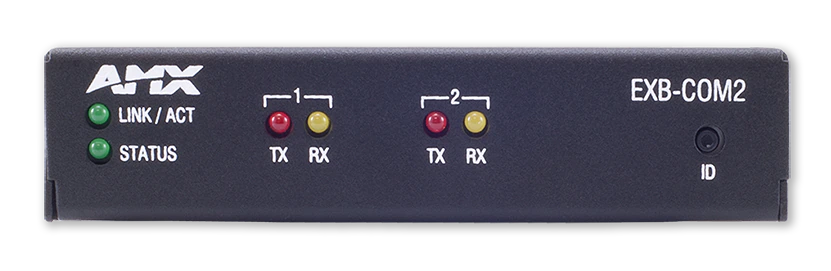

EXB-COM2
较大的图像

ICSLan 设备控制箱方便用户利用控制器并通过以太网络对设备进行远程管理,为集中控制环境提供了一种极其简便的方法,允许用户以一个控制器管理多个小型房间,而不是在每个房间都设置控制器。以太网已成为设备连接方面的行业标准,而 ICSLan 设备控制箱则便于控制距控制器较远的投影仪等设备。此外,当 AMX 控制器上所有端口被完全占用时,端口数量还可进行扩增。由于端口采用本地 NetLinx 技术,因此向 AMX 设施增置 EXB 操作起来非常简便。

更多详情

利用单个控制器管理投影仪等多台设备或向 AMX 中央控制器增置其他端口的会议室、教室或礼堂。

下载

  Version Language Size Uploaded
file type icon Data Sheet
updated: 3月 2024
    309.5 KB 3月 2024
file type icon EXB-COM2 快速入门指南
updated: 3月 2024
    127.7 KB 3月 2024
Manuals
file type icon Instruction Manual - ICSLan Device Control Boxes
updated: 10月 2020
    854.2 KB 10月 2020
CAD Drawings
file type icon Pictorial Drawings - EXB-COM2, ICSLan Serial Interface, 2 Ports (DWG)
updated: 4月 2018
    13.7 MB 4月 2018
file type icon Pictorial Drawings - EXB-COM2, ICSLan Serial Interface, 2 Ports (DXF)
updated: 4月 2018
    50.4 MB 4月 2018
file type icon Pictorial Drawings - EXB-COM2, ICSLan Serial Interface, 2 Ports (PDF)
updated: 4月 2018
    147.6 KB 4月 2018
BIM Objects
file type icon EXB-COM2 - BIM Object
updated: 8月 2019
    8月 2019
Firmware
platform icon ICSLan Device Control Boxes Firmware
version 1.0.49, updated: 9月 2018
1.0.49     232.3 KB 9月 2018
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - EXB-COM2 ICSLan Serial Interface, 2 Ports
updated: 6月 2018
    38.5 KB 6月 2018
Certifications
file type icon ICSLan Device Control Boxes UL Certificate of Compliance
updated: 4月 2018
    242.8 KB 4月 2018
file type icon ICSLan Device Control Boxes CE Declaration of Conformity
updated: 4月 2018
    255.3 KB 4月 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: 10月 2020
    2.6 MB 10月 2020
Quick Start Guides
file type icon Quick Start Guide - ICSLan Device Control Boxes
updated: 10月 2020
    127.7 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • 启用以太网端口 - 提供一种经得起未来考验的解决方案,方便在任何位置添加端口
  • 便于编程 – 编程方法与控制器上其他任何设备端口完全相同
  • 以太网供电 – 无需在安装位置设置电源
  • 形状系数较小 – 紧凑型设计便于隐蔽安装,从而确保环境整洁
  • NetLinx Studio 工具 – 配置工具方便部署 ICSLan 设备控制箱

性能

尺寸(高宽厚) 1" x 4 3/8" x 5 1/8" (2.5 cm cm x 11.1 cm x 13.00 cm),RU: 1
重量 1 lb (454 g)
以太网供电 (PoE) 无需本地电源
功率消耗 1.9 W
接头 (1) RJ-45 ICS-LAN 以太网连接器,(1) 10 针 3.5mm 外加螺丝接线端(RS-232/422/485 端口),(1) 5 针 3.5mm 外加螺丝接线端(RS-232 端口)
FG Numbers FG2100-22
