HPX-U100-2BTN

HydraPort® 两键式键盘模块

HPX-U100-2BTN
较大的图像

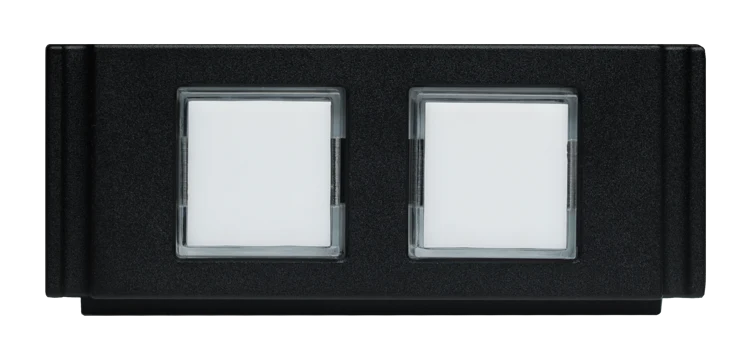

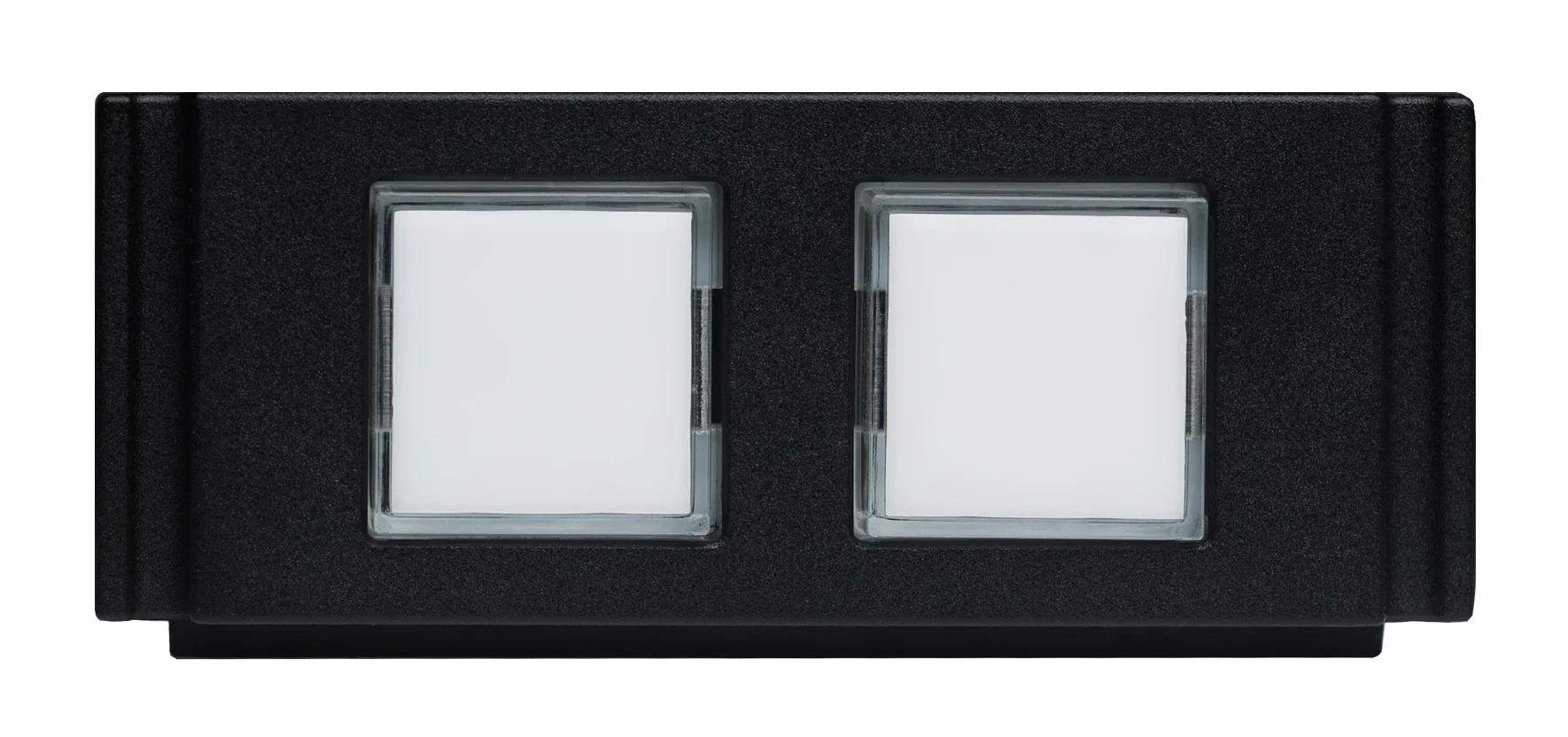

带 LED 指示灯的 HPX-U100-2BTN HydraPort 两键式键盘模块是一个 HydraPort 模块,带有两个按钮,用户可以在按下时切换到特定设备。可选按钮插件 (FG554-08) 采用颜色编码,以匹配类似颜色的标签,这些标签夹在电缆末端,插入设备,方便用户识别哪个按钮选择哪个设备。当特定设备处于活动状态时,按钮会亮起,从而可以在任何给定时间轻松确定显示器上显示的设备内容。

每个 HPX-U100-2BTN 包含 2 个按钮,并且仅需 1 个 HydraPort 装置。可以堆叠多个模块以容纳大量设备。每个模块都带有一组彩色按钮标签和匹配标签。

更多详情

  • 此解决方案非常适合人们通过在多个设备之间切换来查看内容的会议空间或教室
  • 适用于多个学生同时连接的主动学习环境

Videos





configuration_tool

下载

  Version Language Size Uploaded
Data Sheets
file type icon HPX-1200 12 Module Connection Ports (english)
updated: 10月 2020
    1.0 MB 10月 2020
file type icon HPX-900 9 Module Connection Ports (english)
updated: 10月 2020
    1.1 MB 10月 2020
file type icon HPX-600 6 Module Connection Ports (english)
updated: 10月 2020
    1007.4 KB 10月 2020
Quick Start Guides
file type icon Quick Start Guide - HPX-U100-2BTN Hydraport Two-Button Module
version B, updated: 10月 2020
  380.2 KB 10月 2020
Safety Sheets
file type icon Safety Instructions - HydraPort
version E, updated: 1月 2024
  1.2 MB 1月 2024
Configuration Tools
file type icon HydraPort Connection Preview Configuration Tool
updated: 3月 2021
    3月 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • 直接在 HydraPort 上切换 - 只需按下 HydraPort 模块中的按钮即可立即切换到特定设备并在显示器上显示其内容
  • HydraPort 模块的按钮布局清晰 - 可选配件 (FG554-08) 带有彩色按钮插件和以及带有匹配标签的匹配电缆带,这些标签可以夹在每个设备电缆接口的末端,便于选择和切换到任何连接的设备
  • 堆叠多个模块 – 可根据需要安装尽可能多的 HydraPort 模块,以容纳大量设备。每个模块仅占用 1 个 HydraPort 装置并包含 2 个按钮

性能

尺寸

1 HydraPort Unit
电源
  • Accepts +12 VDC nominal voltage
  • Supports an input voltage range of 8 - 18 V
  • Must be used in conjunction with a compatible AMX device that can power the LEDs, including:
    • Solecis using the LED Control Connection port ("LED") for power
    • NX Master or DVX using the GND from the I/O Port connector
前面板组件
  • Two Button LED input buttons with white LED back-light
  • Must be used in conjunction with a compatible AMX device that can sense the contact closure of the button being pressed, including:
    • Solecis using the External Button/switch (“SW”) input for contact closure
    • NX Master or DVX using the I/O Channels from the I/O Port connector
后面板组件 5-position Phoenix screw-terminal connector for LED, contact closure (for button press), and power
FG Numbers FG554-02
