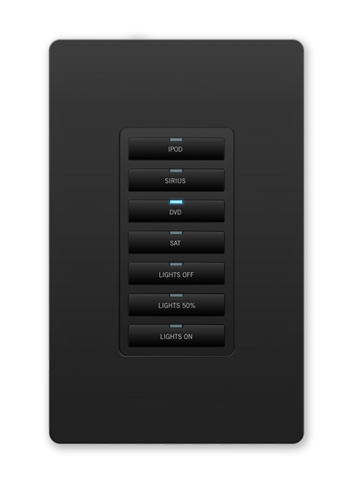

Metreau 7 按钮 AxLink 键盘设有 7 个双宽按钮，既可用作独立键盘，又可与 6 按钮和 13 按钮 Metreau 配置配合使用。
较大的图像
更多详情
该款功能强大的键盘可在医院、住宅、多住宅单元和其他应用环境中控制各类设备。
Recommended For
Explore more
harman_professional_solutions
下载
| Size | ||||
Data Sheet
updated: 9月 2023
|
520.1 KB | |||
Manuals | ||||
|
Instruction Manual - Metreau Keypads
updated: 3月 2018
|
2.6 MB | |||
CAD Drawings | ||||
|
Pictorial Drawing - MET-7 Metreau 7-Button Keypad (PDF)
updated: 10月 2020
|
79.0 KB | |||
Pictorial Drawing - MET-7 Metreau 7-Button Keypad (DXF)
updated: 10月 2020
|
1.7 MB | |||
BIM Objects | ||||
|
MET-7 - BIM Object
updated: 8月 2019
|
||||
Safety Sheets | ||||
|
Safety Instructions - Metreau Keypads
updated: 3月 2018
|
80.8 KB | |||
Certifications | ||||
|
Metreau Keypads MET-6N/MET-7/MET-13 CE Declaration of Conformity
updated: 4月 2018
|
254.9 KB | |||
Information documents | ||||
|
Metreau Series Keypad Button Ordering
updated: 10月 2020
|
92.7 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
特点
- 适用于装饰壁板
- AxLink 连接至 NetLinx Master
- 标准按钮包括“调节器”、“DVD”、“灯”、“风扇”、“遮光板”、“显示器”和“+/-”
- 蓝色 LED 亮起指示按钮选择
- 方便匹配 NI-3101-SIG 控制器
- 底部按钮用作一个或两个按钮
注：未包含键盘壁板。参见 ALD-CW-1 和 ALD-CW-2。
性能
| 尺寸（高宽厚） | 键盘和安装板：4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm) |
| 装配 | 装入标准的装饰风格墙板 |
| 前面板组件 | 7 个带蓝色 LED 指示灯的触控式按钮 |
| 后面板组件 | DIP 开关，AxLink 连接器 |
| 电源 | 12 VDC, 30mA |
| FG Numbers | FG5794-03-WH (White) |
Dealer Finder
Have a Question?
Consultant SupportNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
MET-7 (停产)
Metreau 7 按键 AxLink 键盘
