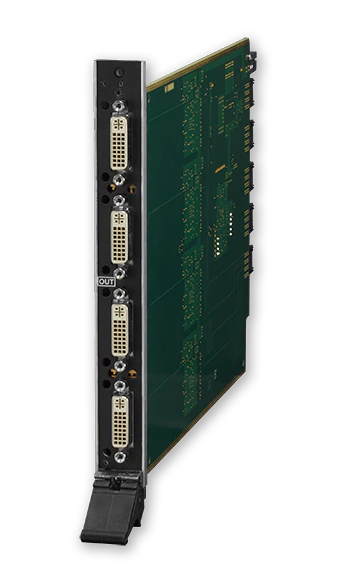

The DGX-O-DVI is a HDCP compliant DVI output board for the Enova DGX 8, Enova DGX 16, Enova DGX 32, and Enova DGX 64. It has four DVI connections per board and supports HDMI or DVI signals. The DGX-O-DVI features SmartScale® Technology which outputs video that is perfectly scaled for each connected display, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions.
Gambar Lebih Besar
Keterangan Lebih Lanjut
The Enova DGX DVI Output Board is ideal for applications where destinations are located within 15 meters of the Enova DGX Digital Media Switcher, eliminating the need for external receivers. Integrated SmartScale Technology provides optimal display resolution for each connected display.
configuration_tool
Unduhan
Dokumen
| Ukuran | |
Data Sheet
diperbarui: Apr 2026
|
292 KB |
Manuals
| Ukuran | |
|
|
16,4 MB |
|
|
868 KB |
|
|
46,4 KB |
Certifications
| Ukuran | |
|
|
276 KB |
|
|
201 KB |
|
|
143 KB |
|
|
176 KB |
Whitepapers
| Ukuran | |
|
|
484 KB |
Quick Start Guides
| Ukuran | |
|
|
419 KB |
Comparison Charts
| Ukuran | |
|
|
159 KB |
Configuration Tools
| Ukuran | |
|
|
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
Fitur
- InstaGate Pro® Technology – Easily integrate HDMI/HDCP into system designs and enjoy hassle-free matrix switching to all compliant displays. No tools, no delays, and no key constraints – it just works
- SmartScale Technology – Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup; this prevents inferior video quality when sources are forced to lower resolutions to support the least capable display in the system
- Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
- 3D Support – Pass through latest video formats including 3D and Deep Color
- Surround Sound Support – Pass through high definition surround sound including Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2-channel through 8-channel L-PCM
Spesifikasi
| FG Numbers | FG1058-610 |
Dukungan KonsultanNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
