AMX MXD-2000XL-PAN

Gambar Lebih Besar

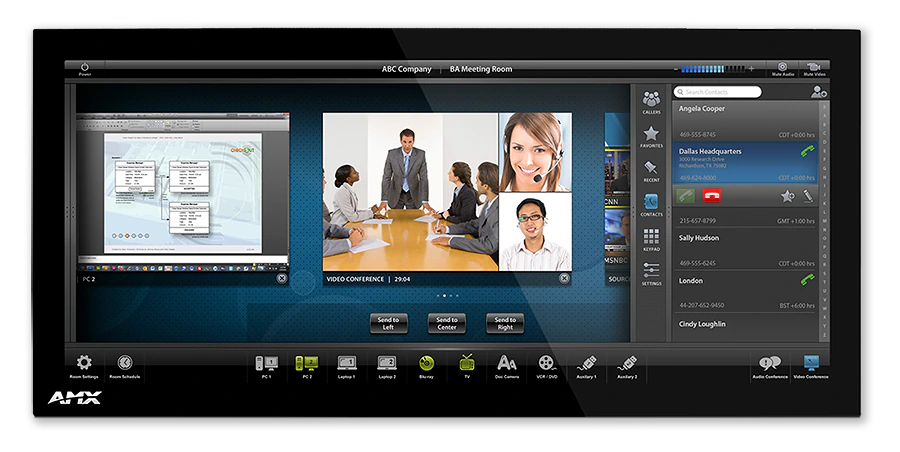

The MXD-2000XL-PAN / 20.3" Modero X^® Series Wall Mount Touch Panel is a premium user interface designed for dedicated room control or scheduling. This elegantly-styled touch panel provides fast and smooth animations and transitions, along with elegant styling that looks great in any setting.

The Modero X Series G5 Touch Panels provide several industry firsts including a beautiful, panoramic capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive appearance will complement even the most sophisticated meeting facilities and homes, with a variety of mounting options for added security and convenience.

Keterangan Lebih Lanjut

The MXD-2000XL-PAN is ideal for boardrooms, conference rooms or auditoriums where a panoramic control surface is needed to provide access to multiple functions simultaneously while remaining elegantly unobtrusive.
In Higher Education, the MXD-2000XL-PAN is ideal for lecture halls, auditoriums, performing arts theaters and boardrooms that require extensive control capabilities.
In residences, it is perfect for main living areas such as kitchens, living rooms, home theaters or home offices where the panoramic control surface can be used to manage systems throughout the house.
The MXD-2000XL-PAN can be used as a scheduling panel for high-end meeting rooms and auditoriums.
All Modero X Series Wall Mount panels are ideal for reception areas or other gathering places for displaying master calendars and other information.

Unduhan

Dokumen

	Ukuran	Diunggah
Data Sheet diperbarui: Apr 2026	447 KB	Apr 2026
Comparison Chart diperbarui: Apr 2026	173 KB	Apr 2026

BIM Objects

	Ukuran	Diunggah
MXD-2000XL-PAN - BIM Object diperbarui: Agu 2019		Agu 2019

Software

	Versi	Ukuran	Diunggah
G4 Support Files versi 3.3.62, dirilis: Jul 2018	3.3.62	35,7 MB	Jul 2018
TPDesign4 versi 3.3.674, dirilis: Des 2019	3.3.674	68,9 MB	Des 2019

Firmware

	Versi	Ukuran	Diunggah
Modero X Series G4 Touch Panels Firmware versi 2.104.134, dirilis: Mar 2018	2.104.134	47,2 MB	Mar 2018

Quick Start Guides

	Ukuran	Diunggah
Quick Start Guide - MXD-2000XL-PAN Modero X Series Panoramic Wall Touch Panel diperbarui: Okt 2020	275 KB	Okt 2020

Certifications

	Ukuran	Diunggah
Modero X Series 19.4"/20.3" Touch Panels UL Certificate of Compliance diperbarui: Apr 2018	417 KB	Apr 2018
Modero X Series 20.3" Touch Panel CE Declaration of Conformity diperbarui: Apr 2018	255 KB	Apr 2018
Modero X Series 19.4"/20.3" Touch Panels IECEE CB Test Certificate diperbarui: Apr 2018	125 KB	Apr 2018

Whitepapers

	Ukuran	Diunggah
Digital Media Capabilities of the Modero X Series Touch Panels diperbarui: Apr 2018	1,22 MB	Apr 2018

Safety Sheets

	Ukuran	Diunggah
Safety Instructions - Modero X Series G4 Touch Panels diperbarui: Okt 2020	103 KB	Okt 2020

Touch Panel Files

	Ukuran	Diunggah
MXT/D-2000XL-PAN/PAN-NC Page Transitions Demo Touch Panel File (1920x800) diperbarui: Jul 2018	3,92 MB	Jul 2018
MXD-2000XL-PAN Portrait Demo Touch Panel File (800x1920) diperbarui: Jul 2018	3,93 MB	Jul 2018
MXT/D-2000XL-PAN Landscape Demo Touch Panel File (1920x800) diperbarui: Jul 2018	12,2 MB	Jul 2018
MXD-2000XL-PAN RMS Scheduling Touch Panel File (800x1920) diperbarui: Jul 2018	3,05 MB	Jul 2018

Device Modules

	Ukuran	Diunggah
Panel-to-Panel Video Chat Module diperbarui: Okt 2020	7,46 MB	Okt 2020
Modero X Residential Demo diperbarui: Okt 2020	52,8 MB	Okt 2020
Near Field Communications (NFC) Module diperbarui: Okt 2020	4,81 MB	Okt 2020
AMX Communications Application diperbarui: Okt 2020	16,9 MB	Okt 2020
MET-ECOM/D Metreau Entry Communicator Device Module diperbarui: Okt 2020	2,72 MB	Okt 2020

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Fitur

G5 Graphics Engine and Quad Core Processing – The most powerful processing in the industry delivers smooth gesturing, swiping, dynamic reordering, enhanced animation with transitions all at higher speeds for an experience any user will enjoy
Simplified Enterprise Touch Panel Updates – Deploy and update touch panel files from a network URL for simplified company-wide updates
Built-in Web Browser and Document Viewers – Conveniently simplifies accessing and presenting real-time content and documents during meetings
Multitasking with the Panoramic Control Surface – The panoramic aspect ratio of the Modero X G5 touch panels provides dedicated space to perform multiple activities at once
Perfect From Any Angle – Includes In-Plane Switching (IPS), which delivers the widest viewing angles and the most accurate color reproduction on the market
Generous Mounting Options – In addition to wall mount, you can mount the 10.1" Modero X Series Landscape Wall/Flush Mount Touch Panel directly to an equipment rack using the optional MXA-RMK-10 Modero X Series Rack Mount Kit (FG5969-62)

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Spesifikasi

Display Size (WH)	Landscape: 20.4" x 9.5" (519 mm x 242 mm), 21.3" (541 mm) diagonal, Portrait: 9.5" x 20.4" (242 mm x 519 mm), 21.3" (541 mm) diagonal
Viewable Area (WH)	Landscape 18.7" x 7.8" (475 mm x 198 mm ), 20.3" (514 mm) diagonal, Portrait 7.8" x 18.7" (198 mm x 475 mm), 20.3" (514 mm) diagonal
Resolution	Landscape: 1920x800, Portrait: 800x1920
Viewing Angle	Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio	Landscape: 12:5, Portrait: 5:12
Touch Overlay	Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine	AMX G4
Front Panel Components	Light Sensor, Proximity Detector, Camera, LED Indicators, Sleep button. See Data Sheet for details.
Power Consumption	Full-On: 32W (12 VDC, 2.7 A)
Temperature Range	Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers	FG5968-05 (Portrait) FG5968-11 (Landscape)
