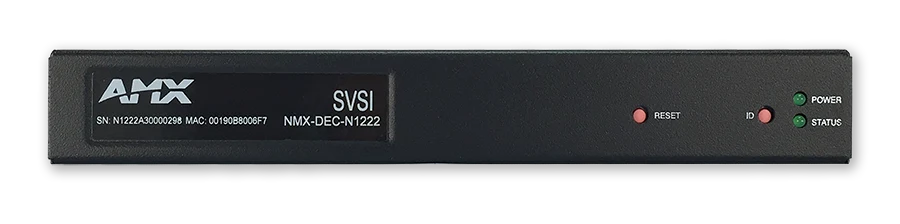

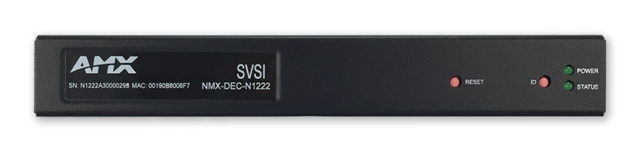

AMX NMX-DEC-N1222 Decoder

Gambar Lebih Besar

Produk Pengganti

NMX-DEC-N1222A Decoder

Dekoder Video Over IP dengan Kompresi Proprietary Minimal, Dukungan PoE, dan AES67

The new NMX-DEC-N1222 model features improved digital pixel reproduction and reduces latency to an industry leading 10-ms for gigabit links. Packetized video streams not only remain visually lossless throughout distribution, they also arrive instantly.

The N1000 Series Encoders and Decoders are an affordable local AV over IP switching solution that packetizes video into a minimally compressed IP format to create anywhere from a small 2×1 seamless presentation switcher up to a large 32×32 matrix switcher by connecting them directly to off-the-shelf layer-3 network switches.

The ability to send IP Media for distribution using common managed network switches in any size and configuration makes N1000 solutions extremely flexible and easy to deploy.

Keterangan Lebih Lanjut

The NMX-DEC-N1222 is the perfect solution for any low-latency application and video matrix smaller than 32x32. Common applications include classrooms, conference rooms, performing arts, and sports bars.

Unduhan

Dokumen

	Ukuran	Diunggah
Data Sheet diperbarui: Apr 2026	730 KB	Apr 2026

Manuals

	Ukuran	Diunggah
Instruction Manual - SVSI N1000 Minimal Compression Video over IP diperbarui: Jun 2020	6,76 MB	Jun 2020
NetLinx Control for N-Series Products Documentation Addendum diperbarui: Okt 2020	1,05 MB	Okt 2020

BIM Objects

	Ukuran	Diunggah
NMX-DEC-N1222 - BIM Object diperbarui: Agu 2019		Agu 2019

Firmware

	Versi	Ukuran	Diunggah
SVSI N1x22 Encoder and Decoder Firmware Updater versi 1.15.18, dirilis: Nov 2021	1.15.18	67,8 MB	Nov 2021

Quick Start Guides

	Ukuran	Diunggah
Quick Start Guide - SVSI N1000 MPC Series diperbarui: Okt 2018	369 KB	Okt 2018

Product Guides

	Versi	Ukuran	Diunggah
Product Guide - N-Series Video Wall/Crop Limitation diperbarui: Okt 2020		72,8 KB	Okt 2020
N-Series Stream Compatibility diperbarui: Jun 2024		431 KB	Jun 2024
Product Guide - N-Series Minimum Network Requirement versi D, diperbarui: Okt 2025	D	201 KB	Okt 2025

Install Guides

	Ukuran	Diunggah
SVSI Networked AV - Pre-Implementation Guide diperbarui: Jun 2024	1,17 MB	Jun 2024

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Fitur

Output Scaling – Video scaling at output allows seamless switching from any source, at any resolution, to any display or projector, while preserving video fidelity
1 Frame Latency – Same as HDBaseT
Minimal Proprietary Compression (MPC) – Visually lossless MPC algorithm
Optional Compression – Available option to disable all compression
Power Over Ethernet (PoE) – PoE eliminates the need for power supply
Infrared (IR) – Infrared emitter connection allows control of low-cost, IR-only display devices
Onboard Control – All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices
Unmatched Flexibility – Highly competitive pricing for matrices up to 32x32
Two RJ45 Ports – Decoder features two RJ45 network ports (one PoE)
Stand Alone or Card – Available as a stand alone device, or card for use with NMX-ACC-N9206

Spesifikasi

Digital Video Input	Network video over Ethernet via RJ45 port or fiber via 1G SFP port
Video Outputs	HDMI, DVI-D (through adapter)
Video Formats	HDMI, DVI-D (through adapter), HDCP content protection support
Output Resolutions	Supports most common HD up to 1920x1200. See Data Sheet for details.
Audio Input Signal Types	Network video over Ethernet via RJ45
Audio Output Signal Types	Embedded audio on DVI-D or HDMI (through adapter)
HDMI Audio Formats	8ch PCM
Analog Audio Formats	Stereo 2-channel
Audio Digital-to-Analog Conversation	16-bit 32 kHz, 44.1 kHz and 48 kHz (matched to Encoder settings)
Latency	10 ms at 60 fps. See Data Sheet for details.
Communications	Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP. See Data Sheet for details.
FG Numbers	FGN1222-SA
