EXB-IRS4
단종됨

ICSLan IR/S 인터페이스, 4개 IR/S 및 4개 입력

EXB-IRS4_Front
더 큰 이미지

대체 제품

  • CE-IRS4

    CE-IRS4

    IR/S 포트 4개를 갖춘 범용 컨트롤 확장기

ICSLan Device Control Boxes allow users to manage devices remotely from a Controller over an Ethernet network. This provides a beautifully simple method for a centralized control environment allowing users to share a controller among multiple smaller rooms versus controllers in every room. Ethernet has become the industry standard for connecting devices and the ICSLan Device Control Boxes make it easy to introduce control to equipment such as projectors located extended distances from a Controller. Additionally, the number of ports on an AMX Controller can be expanded when all ports are fully populated. Because they employ Native NetLinx technology, it is extremely simple to add an EXB to an AMX installation.

상세 정보

Conference rooms, classroom or auditoriums where a single controller is used to manage multiple devices such as projectors spread throughout a facility or to add additional ports to an AMX Central Controller.

다운로드

문서
  크기 업로드됨
file type icon Data Sheet
업데이트됨: 2026년 4월월
314KB 2026년 4월월
file type icon EXB-IRS4 빠른 시작 안내서
업데이트됨: 2026년 4월월
128KB 2026년 4월월
Manuals
  크기 업로드됨
file type icon Instruction Manual - ICSLan Device Control Boxes
업데이트됨: 2020년 10월월
854KB 2020년 10월월
CAD Drawings
  크기 업로드됨
144KB 2018년 4월월
50.7MB 2018년 4월월
BIM Objects
  크기 업로드됨
file type icon EXB-IRS4 - BIM Object
업데이트됨: 2019년 8월월
2019년 8월월
Firmware
  버전 크기 업로드됨
download icon for ICSLan Device Control Boxes Firmware ICSLan Device Control Boxes Firmware
버전 1.0.49, 출시: 2018년 9월월
1.0.49   232KB 2018년 9월월
Quick Start Guides
  크기 업로드됨
file type icon Quick Start Guide - ICSLan Device Control Boxes
업데이트됨: 2020년 10월월
128KB 2020년 10월월
Certifications
  크기 업로드됨
255KB 2018년 4월월
243KB 2018년 4월월
A&E (Architectural & Engineering) Specifications
  크기 업로드됨
51.5KB 2018년 6월월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하십시오.

기능

  • Enable Ports over Ethernet – Provides a future proof solution to add ports anywhere
  • Easy to Program – Programming is identical to any other device ports on the Controller
  • Power over Ethernet – Eliminate the need for a power source at the install location
  • Small Form Factor – Compact design makes it easy to hide for a clean installation
  • NetLinx Studio Tools – Configuration tools make ICSLan Device Control Boxes easy to deploy

사양

Dimensions (HWD) 1" x 4 3/8" x 5 1/8" (2.5 cm cm x 11.1 cm x 13.00 cm), RU: 1
Weight 1 lb (454 g)
Power Over Ethernet (PoE) No local Power Supply needed
Power Draw Typical power draw: 1.9 Watts, Max power draw: 2.4 Watts

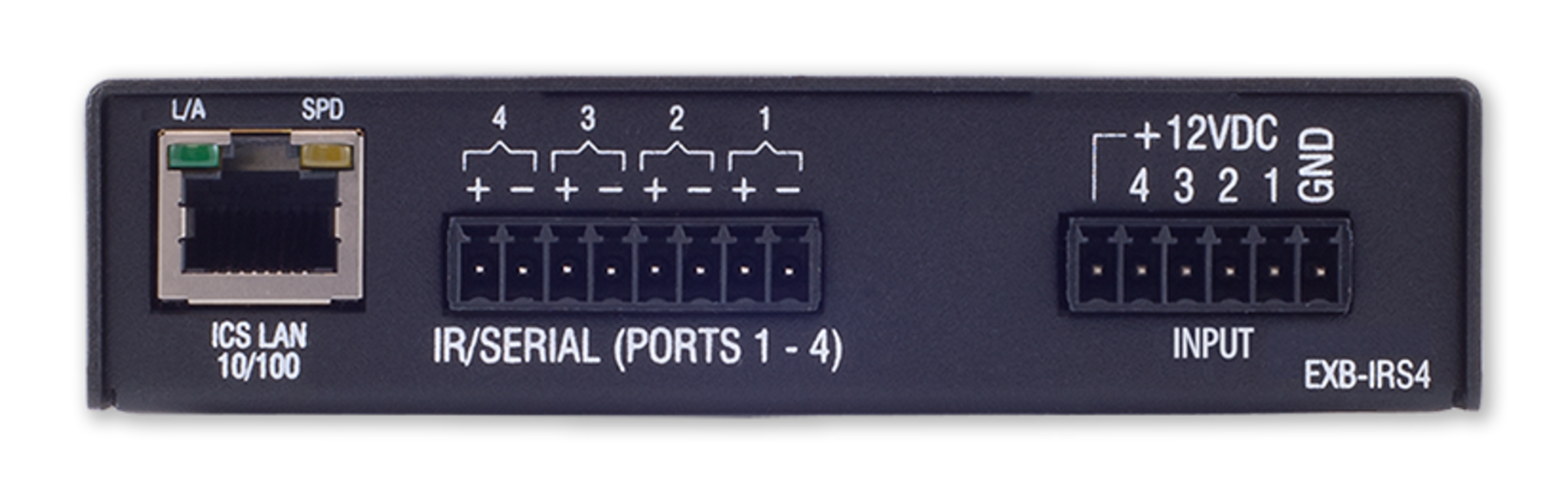

Connectors (1) RJ-45 ICS-LAN Ethernet Connector, (1) 8-Pin 3.5mm captive-screw terminal for I/R ports, (1) 6-Pin 3.5mm captive-screw terminal for inputs
FG Numbers FG2100-23
