MXA-FMK-07
단종

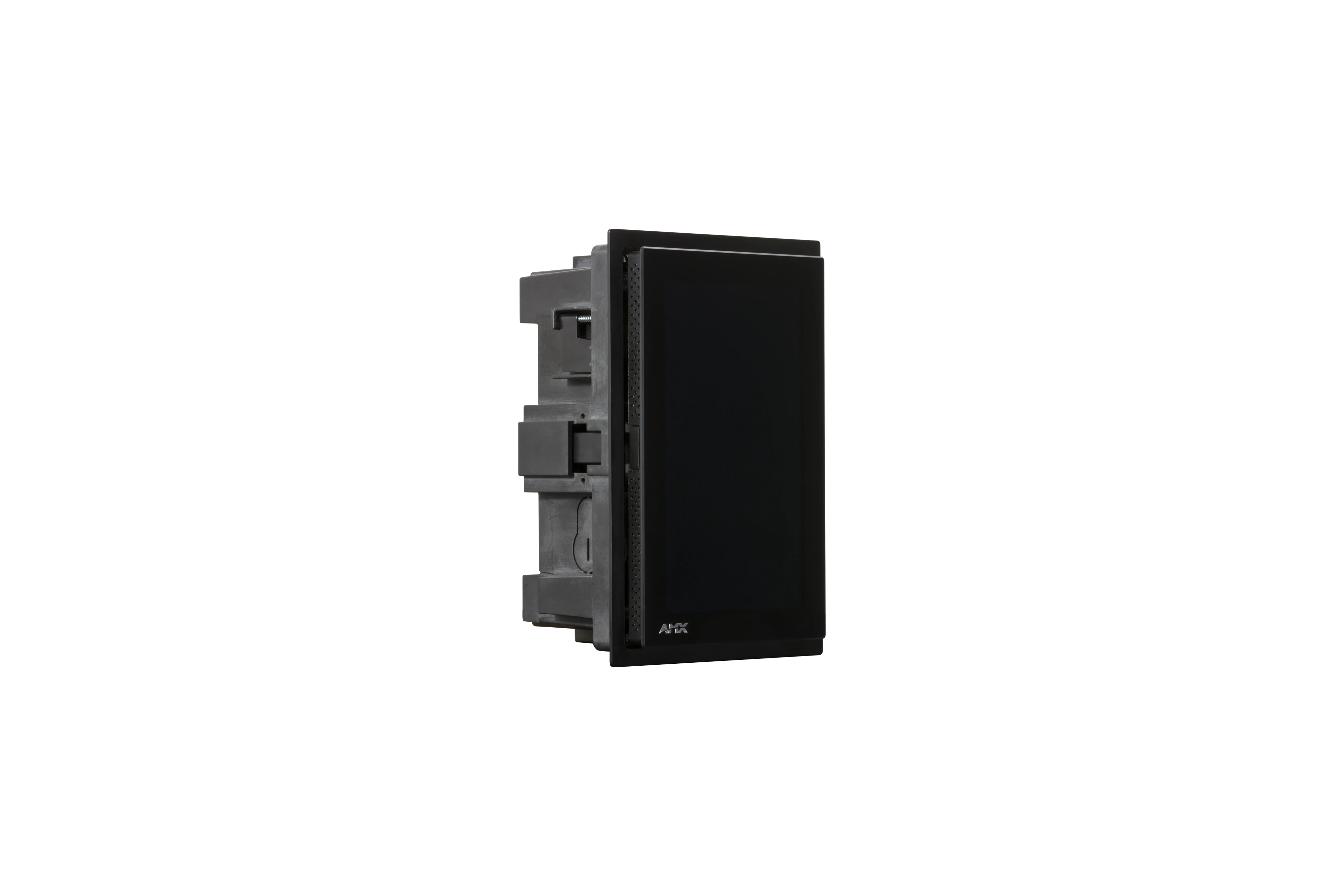

Flush Mount Kit for 7" Modero X® Series Wall Mount Touch Panels

MXA-FMK-07.panel.pushed.out

대체 제품

  • CB-MXP-07-F

    CB-MXP-07-F

    Flush Mount Rough-In Box and Cover Plate, for use with MXA-FMK-07 Flush Mount Kit for 7" Modero X® Series Wall Mount Touch Panels

The MXA-FMK-07 Flush Mount Kit allows the Modero X 7” Wall Mount Touch Panels to be installed totally flush with the wall. Once installed, simply press lightly on the touch panel and the spring-loaded mechanism extracts the panel just slightly for access to the side buttons and enhanced speaker exposure. MXA-FMK-07 is compatible with all Modero X 7” Wall Mount Touch Panels including MXD-701-P (FG5968-54), MXD-701-L (FG5968-55), MXD-700-P (FG5968-08), MXD-700-L (FG5968-14), MXD-700-P-NC (FG5968-28) and MXD-700-L-NC (FG5968-29)

다운로드

CAD Drawings
  크기 업로드 날짜
208KB 2018년 7월
939KB 2018년 7월
263KB 2018년 7월
375KB 2018년 7월
1.64MB 2018년 7월
1010KB 2018년 7월
BIM Objects
  크기 업로드 날짜
file type icon MXA-FMK-07 - BIM Object
업데이트: 2019년 8월
2019년 8월
Quick Start Guides
  크기 업로드 날짜
233KB 2018년 7월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

사양

FG Numbers FG5968-71
