DGX-O-DXL-4K (停产)

 Enova® DGX DXLink™ 双绞线 4K 输出板

DGX-O-DXL-4K

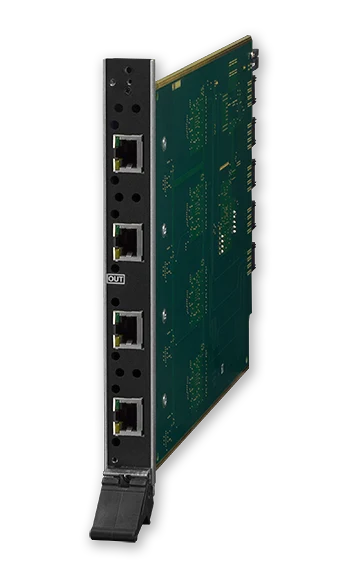

较大的图像

DGX-O-DXL-4K 适用于 4K 和超高清 (UHD) 内容,是一款符合 HDCP 的双绞线电缆输出板,专为 Enova DGX 800、Enova DGX 1600、Enova DGX 3200 和 Enova DGX 6400 数字媒体 Enclosure 而开发。每个输入板设置四个连接,用于将音频和视频传送至 DXLink 双绞线接收器,借助一条屏蔽 6A 类或 7 类标准双绞线电缆最多可将双向控制和以太网信号传送 70m。DXLink Power 可通过 DXLink 输出板为 DXLink 双绞线接收器供电。

更多详情

Enova DGX DXLink 双绞线输出板非常适合目标设备距离 Enova DGX 数字媒体切换器不超过 70 米且需要在整个商业或住宅环境中馈送的应用情形。

下载

  Version Language Size Uploaded
file type icon Data Sheet
updated: 3月 2024
    323.2 KB 3月 2024
Manuals
file type icon Support Guide - Enova DGX Board Replacement
version P, updated: 3月 2021
  868.0 KB 3月 2021
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: 2月 2021
    46.4 KB 2月 2021
Certifications
file type icon Enova DGX 100 Series Enclosure UL Certificate of Compliance
updated: 2月 2021
    175.9 KB 2月 2021
file type icon Enova DGX 100 Series CB Test Certificate 62368
updated: 2月 2021
    143.3 KB 2月 2021
file type icon Enova DGX 100 Series CB Test Certificate 60950
updated: 2月 2021
    200.8 KB 2月 2021
file type icon Enova DGX 100 Series CE Declaration of Conformity
updated: 2月 2021
    276.2 KB 2月 2021
Comparison Charts
file type icon Comparison Chart - DGX Video Boards
updated: 12月 2020
    158.7 KB 12月 2020
Product Guides
file type icon DXLink Compatibility Tool
updated: 4月 2021
    4月 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • 4K 和超高清 (UHD) 支持 —体验适用于 4K 设备的超高清视频解析度
  • 只需一条电缆 – 使用一条双绞线电缆发送音频和视频并传输控制、以太网和电源
  • HDMI 信号发送距离最远可达 70 – 带 HDCP 信号的 HDMI 发送距离远超普通 HDMI 电缆线路
  • 标准双绞线电缆 – 利用具有成本效益的双绞线,节省安装所需的时间和精力,请参见《Cabling for Success with DXLink》白皮书以了解更多详情。
  • 热插拔 – 部署后随时轻松添加或更换输入/输出板,系统可自动识别新配置并启用各板
  • 兼容 HDCP

性能

FG Numbers FG1061-580
