HPX-U100-BTN

单键式模块（配有 LED 指示灯）

Limited Availability
较大的图像

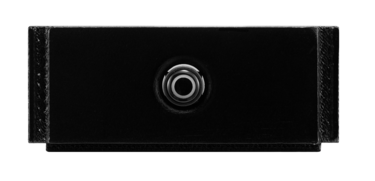

HPX-U100-BTN 模块为 HydraPort® 机箱提供独立的按钮控制。

更多详情

如需掌握重要的安装、配置和编程技巧，请学习哈曼专业大学的以下课程：

  • HydraPort 入门

如需了解本课程以及哈曼专业大学其他课程的时间安排和注册事宜，请访问 AMX 学院。

Videos





configuration_tool

HydraPort Connection Preview Configuration Tool

下载

  Version Language Size Uploaded
Data Sheets
file type icon HPX-1600 16 Module Retractable Connection Ports (english)
updated: 10月 2020
    838.3 KB 10月 2020
file type icon HPX-1200 12 Module Connection Ports (english)
updated: 10月 2020
    1.0 MB 10月 2020
file type icon HPX-900 9 Module Connection Ports (english)
updated: 10月 2020
    1.1 MB 10月 2020
file type icon HPX-600 6 Module Connection Ports (english)
updated: 10月 2020
    1007.4 KB 10月 2020
Quick Start Guides
file type icon Quick Start Guide - HPX-U100-BTN Single Button Module
version E, updated: 10月 2020
E    267.0 KB 10月 2020
Safety Sheets
file type icon Safety Instructions - HydraPort
version B, updated: 10月 2020
B    90.8 KB 10月 2020
Configuration Tools
file type icon HydraPort Connection Preview Configuration Tool
updated: 3月 2021
    3月 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

尺寸

1 HydraPort Unit (See the HPX-1600 specifications section for an explanation of HydraPort units)
前面板组件
  • Single push-button with LED back-light
  • Button LED inputs accept +12 VDC nominal voltage, and support an input voltage range of 8 - 18 V
后面板组件
  • 2-position Phoenix screw-terminal connector for LED
  • 2-position Phoenix screw-terminal connector for push-button closure
FG Numbers FG554-01
