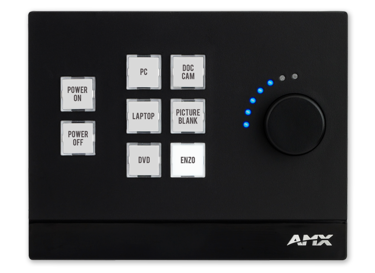

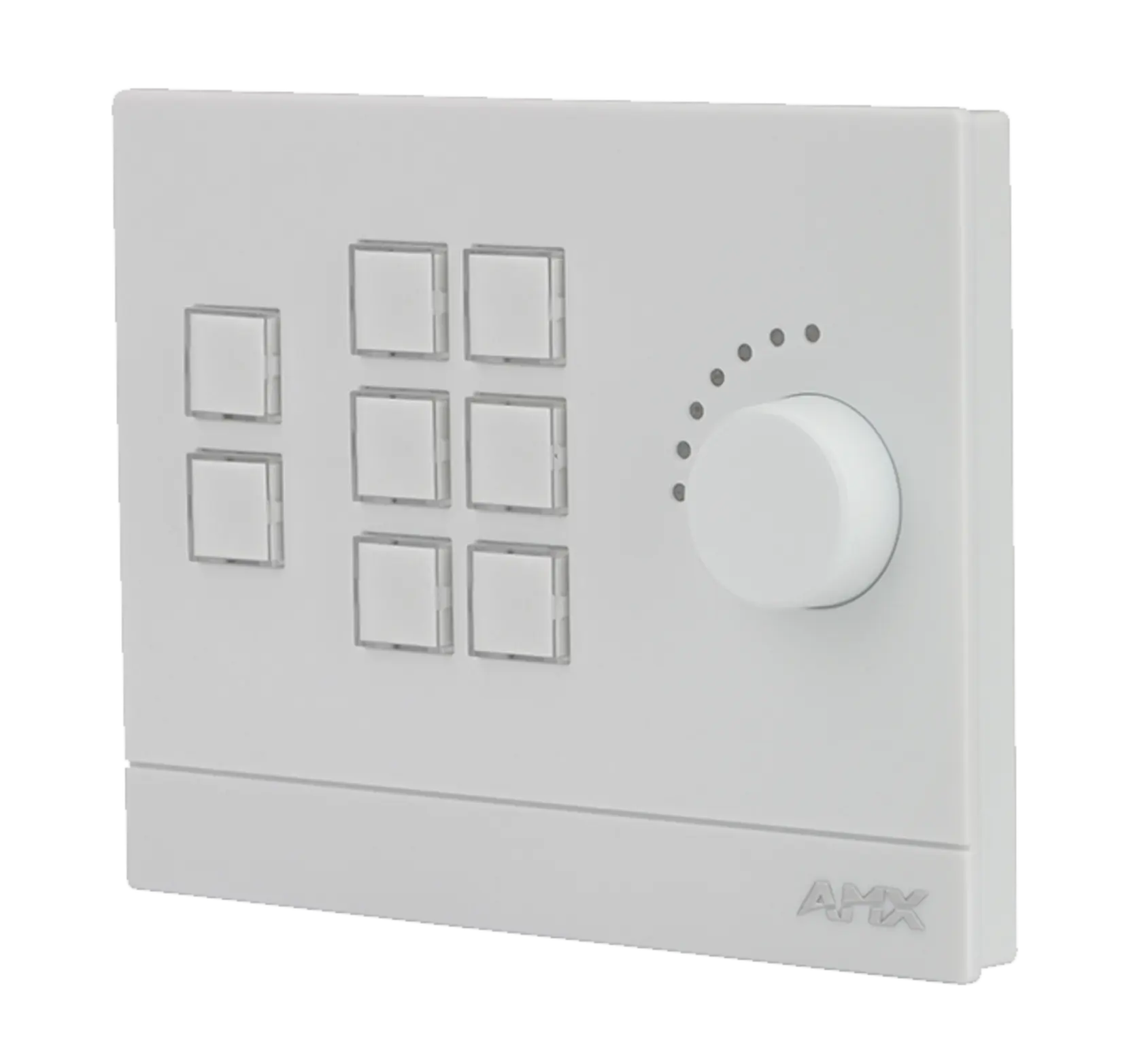

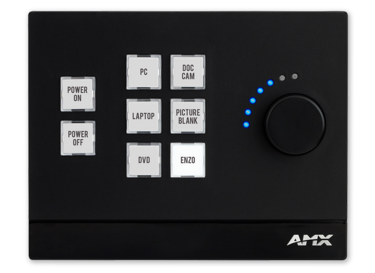

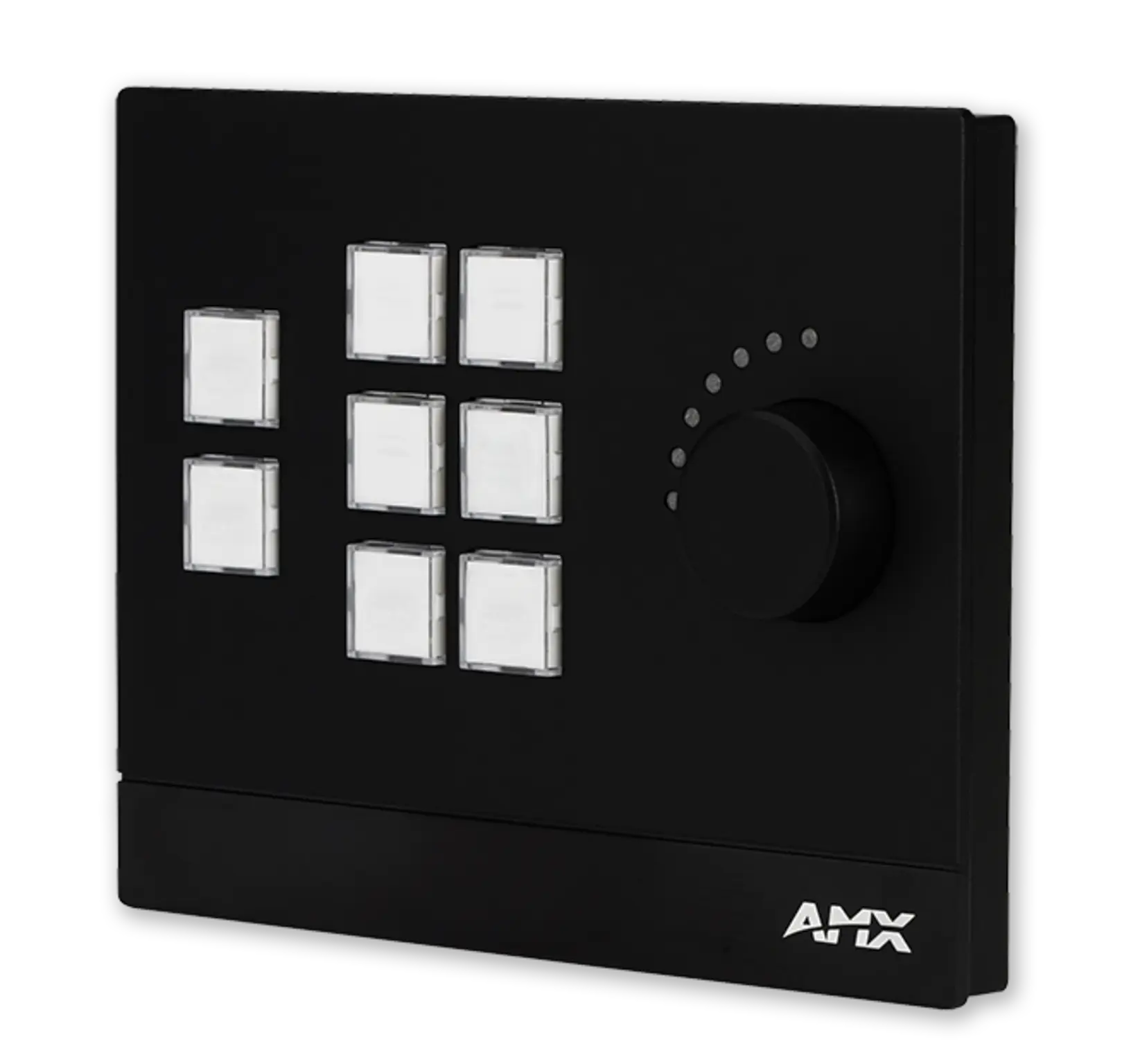

带旋钮的 Massio™ 8 按键控制板(美英欧洲)

Mcp 108 front vert medium

MCP-108/8 按钮带旋钮 Massio™ 控制板将 AMX 控制和外形时尚的小键盘融入一台设备,可安装在标准 2 组美式、英式或欧式后部箱内实现专用房间控制。Massio 控制板性能极高,操作直观,采用现代设计风格,可借助 AMX 快速项目制作器快速完成配置,或利用 NetLinx Studio 软件进行自定义编程。MCP-108 与 AMX 旗舰版 NX 系列产品共享控制器技术,使其能够提供最新网络和安全功能以及出色的处理能力。


  • NX Master Security 固件完美适用于需要按企业所用任何设备 IT 行业安全标准,通过计算机网络实现安全通信的企业、教育机构和政府部门。
  • Massio 控制板完美适合拥挤空间及小型会议室,Massio 控制器、用户界面和配置与 RPM 相融合后可通过低成本方式向小型空间添加音视控制
  • MCP-108 的安全功能和安全壁装选项使其特别适合用于高等教育分组讨论室和小型教室。
  • MCP-108 坚固耐用的设计和极具吸引力的价格也非常适合 K-12(初等教育)教室应用。


  • Cryptographic Support – In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
  • IPv6 – Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
  • IEEE 802.1X – Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
  • X.509 Certificate Services – NX supports customer-provided certificates for access to protected networks
  • TLS / SSH Client – Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
  • Network Syslog – The Central Controller generates an audit record of events using syslog, a standard for message logging
  • Unrivaled Network Security – With IPv6 and wired 802.1X for protected network access and user-defined LDAP login group support, Massio ControlPads provide rock-solid security
  • All-in-one Keypad/Controller – Unique product combines an elegant yet rugged user interface with an onboard controller
  • Includes AMX Control – Incorporates AMX's flagship NX-series control technology, including the latest networking and security features and outstanding processing power
  • One Tool to Program - RPM – Radically reduces total cost of ownership by reducing the time and cost required to configure or program a system from days to less than an hour
  • Simple Integration with RMS – Using RPM, easily integrate RMS with the MCP-108 to provide a platform for real-time performance monitoring and maintenance
  • Elegant Industrial Design – Complement the rest of the AMX user interface product family and look great in any room
  • Large Buttons / Larger More Descriptive Text – All buttons are easy to read with large supplied labels, or easily make your own for a customized solution
  • Display Monitoring – Use the ControlPad with RMS to monitor power status, input status, lamp hours and filter hours
  • Web-based Control – Remotely login to ControlPads and execute button presses
  • Inactivity Timer – Turn off equipment after lack of activity (timeouts) to save energy
  • Built In Control Ports – Serial and IR ports available to communicate and control common presentation equipment
  • Backlit Buttons – Can flash or turn on/off when pressed
  • Execute Multiple Functions at Once – Macros can be written to trigger multiple functions through a single button press
  • Works with AMX IR Files – Leverage thousands of pre-existing AMX IR files on
  • Standard Enclosures – Standard back box mounting options for US, UK and EU
  • Native Direct Connection to RMS – No proxy required



Dimensions (HWD) 4 11/16" x 6" x 1" (119 mm x 152.5 mm x 26 mm)
重量 Approximately .41 lbs (.19 kg)
Mounting Mount onto standard 2 gang US, UK, or EU back boxes


Typical: 5 Watts, Voltage, DC (Typical): PoE (37V-57V), Voltage DC Range: 37 V-57 V per 802.3af spec, Power Connector: (1) RJ-45 Ethernet
Memory Flash: 4 GB, Memory Card: 4 GB SD, DDRAM: 256 MB
RS-232 Port (2), 3-position 3.5mm Screw Terminal; 300 - 115,200 baud
IR/Serial (2), 2-position 3.5mm Screw Terminal; IR Transmit / 1-way Serial ports, Support high-frequency carriers up to 1.142 MHz
I/O Channels (2) 4-position 3.5 mm Screw Terminal, 2-channel binary I/O port for contact closure with each input being capable of voltage sensing
Relay Connection (1) 4-position 3.5mm Screw Terminal, (2) single-pole, single-throw relays, Each relay can switch up to 24 VDC or 28 VAC @ 1 A, Each relay is independently controlled
Program Port (1) USB Mini-B, USB
ID Pushbutton Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode
