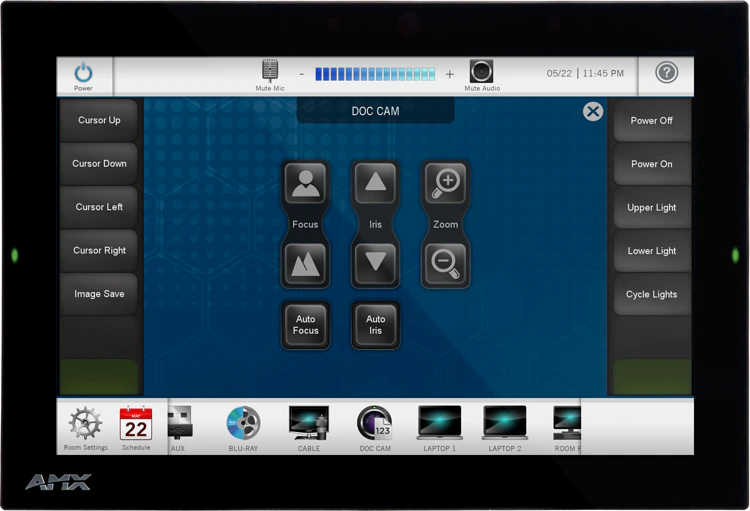

MD-1002

10.1” Modero G5 壁挂式触控面板

MD-1002
较大的图像

经过全新设计的 Modero G5 10” 壁挂式触控面板不仅配置了人性化的用户界面,而且价格实惠,可满足任何空间的需求。此款外形优雅的触控面板专为专用房间控制或调度而设计,提供了快速平稳的过渡和切换动画,内置的强劲四核处理器足以应对当前和未来最严苛应用环境的需求。此外,Modero G5 还设有内置网页浏览器和文件阅读器,方便用户在会议或讲座过程中实时获取信息。

Modero G5 实用性一流,提供具备多点触控功能的边到边电容触控玻璃屏。出众的外观使设备可融入最先进的会议设施和家居布置,另有诸多安装选件可供选用以提高安全性和便利性。

  • THE FACE OF INDUSTRY-LEADING SECURITY

    Facilities around the world place their trust in the industry-leading security of AMX control systems. Modero G5 panels allow users to securely control their devices and environment via a single, streamlined interface.

  • SINGLE POINT OF CONTROL

    A control panel integrates all the functionality you need into a single point of control. Manage meeting spaces, classrooms, briefing rooms, auditoriums and more with intuitive user selections that get complicated technology interactions out of the way.

  • SIMPLIFY STARTING THE MEETING

    Automation lets you combine all of the actions at the start of a meeting into a single button press. Simply press "ON" and the lights come on, the display powers up and switches to the correct input and your meeting is ready to begin.

  • QUICK ROOM SCHEDULING

    Modero G5 wall-mount panels can be configured to run the Acendo Book interface, providing the option to deploy them as dedicated scheduling panels. These panels include capacitive touch glass, large side LEDs, and our popular Acendo Book functionality.

featured content

THE FACE OF INDUSTRY-LEADING SECURITY

Facilities around the world place their trust in the industry-leading security of AMX control systems. Modero G5 panels allow users to securely control their devices and environment via a single, streamlined interface.

featured content

SINGLE POINT OF CONTROL

A control panel integrates all the functionality you need into a single point of control. Manage meeting spaces, classrooms, briefing rooms, auditoriums and more with intuitive user selections that get complicated technology interactions out of the way.

featured content

SIMPLIFY STARTING THE MEETING

Automation lets you combine all of the actions at the start of a meeting into a single button press. Simply press "ON" and the lights come on, the display powers up and switches to the correct input and your meeting is ready to begin.

featured content

QUICK ROOM SCHEDULING

Modero G5 wall-mount panels can be configured to run the Acendo Book interface, providing the option to deploy them as dedicated scheduling panels. These panels include capacitive touch glass, large side LEDs, and our popular Acendo Book functionality.

更多详情

  • Modero G5 完美适用于需要利用高级控制界面的董事会议室、会议室或礼堂,可在使用多种功能时又保持优雅低调的风格。
  • 在高等教育领域,Modero G5 非常适合需用到大量控制功能的讲堂、礼堂、表演艺术剧院和董事会议室。
  • 在住宅领域,该产品特别适用于厨房、卧室或家庭办公室,可实现整个住宅内各种系统的管理。
  • MD-1002 可用作会议室和礼堂的调度面板。
  • 所有 Modero 面板均可完美安装于接待区或其他人员聚集场所,用于显示主日程表以及天气和股票行情等网络信息。

下载

  Version Language Size Uploaded
Manuals
file type icon Installation Hardware Reference Manual – Modero G5 Series
updated: 10月 2020
    1.3 MB 10月 2020
file type icon Configuration & Programming Manual - Modero G5 Touch Panels
updated: 10月 2020
    7.5 MB 10月 2020
CAD Drawings
file type icon MD-1002 - Pictorial Drawing (PDF)
updated: 9月 2019
    174.7 KB 9月 2019
file type icon Pictorial Drawing - MD-1002 (DXF)
updated: 3月 2019
    4.8 MB 3月 2019
file type icon Pictorial Drawing - MD-1002 (DWG)
updated: 3月 2019
    940.1 KB 3月 2019
BIM Objects
file type icon MD-1002 - BIM Object
updated: 8月 2019
    8月 2019
Firmware
platform icon Modero G5 (MD & MT) Touch Panel Firmware
version 1.8.55, updated: 10月 2022
1.8.55     276.2 MB 10月 2022
Certifications
file type icon MD-1002-BL UL Notice of Completion and Authorization To Apply The UL Mark
updated: 10月 2020
    24.0 KB 10月 2020
file type icon MD-1002-BL CE Declaration of Conformity
updated: 10月 2020
    613.0 KB 10月 2020
file type icon MD-1002-BL IECEE CB Test Certificate 62368
updated: 10月 2020
    175.3 KB 10月 2020
Data Sheets
file type icon MD-1002 - Data Sheet
version 10/25/19, updated: 10月 2019
10/25/19    738.0 KB 10月 2019
Quick Start Guides
file type icon MD-1002 - Quick Start Guide
updated: 9月 2019
    772.6 KB 9月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

MD-1002 新增功能

  • 配置灵活 – 使用内置配置工具即可将 Modero G5 控制界面转换为 Acendo Book 调度面板,无需编程或增设额外硬件
  • 麦克风配置 - 壁挂式触摸屏附带的麦克风支持拆卸,或通过软件禁用,用户可根据具体需求对其做任一处理

MD-1002 和原型 MXD-1001 的标配功能

  • G5 图形引擎和四核处理器 - 业内最强大的处理性能确保了流畅的手势操作、滑动、动态调整以及增强切换动画,以更快的处理速度提升用户体验
  • 电容式触摸屏 - 触摸屏响应快速且无延迟,其耐用性、防涂抹和抗划伤性能均得到大幅提升
  • 简化的企业触控面板和固件更新 - 通过专门的网址部署并更新触控面板文件和固件文件,简化全公司的更新工作
  • 内置网页浏览器、文件阅读器和 Enzo 共享 - 会议过程中更方便用户实时获取并演示内容和文件。只需预览通过本地网页浏览器、USB 或云存储应用获取的文件,接着即可直接发送内容至 Enzo
  • 可调安全模式 - 管理员可在高安全性或自定义模式之间作出选择,从而规定面板在存取、联网和通信方面的安全等级
  • 完美可视角度 - 屏幕采用面内切换 (IPS),可提供目前市场上最广的视角和最准确的色彩再现
  • 增强用户体验 - Modero 系列产品采用直观的用户界面,包括: 手势、滑动、动态重排序以及增强的动画功能
  • 丰富的安装选件 - 提供各种安装选件以满足任何安装需求
  • 利用列表视图按钮查看并选择动态数据 - 显示由动态数据源(例如电话簿联系人、通话记录、RSS 内容或其他实时数据源)生成的条目列表,用户可通过滚动或搜索进行选择

性能

Display Size (WH) Landscape 9.1" x 5.9" (230 mm x 149 mm), 10.8" (274 mm) diagonal
Viewable Area (WH) Landscape 8.5" x 5.4" (217 mm x 136 mm ), 10.0" (256 mm) diagonal
分辨率 1280x800
触控覆盖 Capacitive
FG Numbers FG5969-49BL
