MET-13 (停产)

 Metreau 13 按键 AxLink 键盘

较大的图像

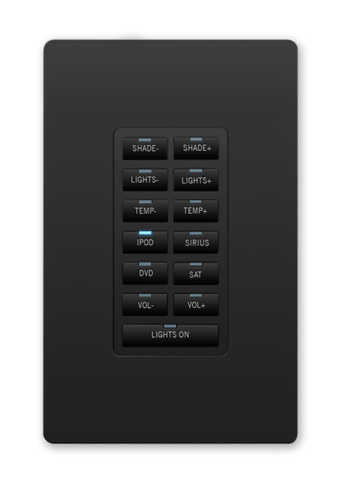

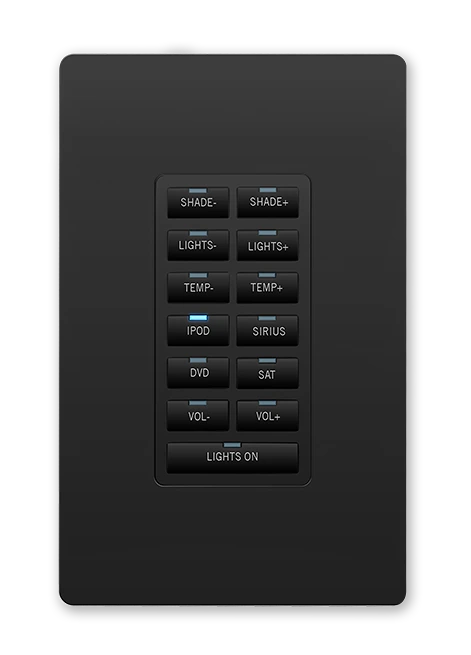

Metreau 13 按钮 AxLink 键盘设有 13 个按钮(12 个单宽按钮和 1 个双宽按钮),既可用作独立键盘,又可与 6 按钮和 7 按钮 Metreau 配置配合使用。

更多详情

非常适合需要对各类所连系统设备实施简化控制的厨房、卫生间、教室及其他应用环境的高性价比控制。

下载

  Version Language Size Uploaded
file type icon Data Sheet
updated: 12月 2023
    520.1 KB 12月 2023
Manuals
file type icon Instruction Manual - Metreau Keypads
updated: 3月 2018
    2.6 MB 3月 2018
CAD Drawings
file type icon Pictorial Drawing - MET-13 Metreau 13-Button Keypad (PDF)
updated: 10月 2020
    90.9 KB 10月 2020
file type icon Pictorial Drawing - MET-13 Metreau 13-Button Keypad (DXF)
updated: 10月 2020
    2.2 MB 10月 2020
BIM Objects
file type icon MET-13 - BIM Object
updated: 8月 2019
    8月 2019
Safety Sheets
file type icon Safety Instructions - Metreau Keypads
updated: 3月 2018
    80.8 KB 3月 2018
Certifications
file type icon Metreau Keypads MET-6N/MET-7/MET-13 CE Declaration of Conformity
updated: 4月 2018
    254.9 KB 4月 2018
Information documents
file type icon Metreau Series Keypad Button Ordering
updated: 10月 2020
    92.7 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • 适用于装饰壁板
  • AxLink 连接至 NetLinx Master

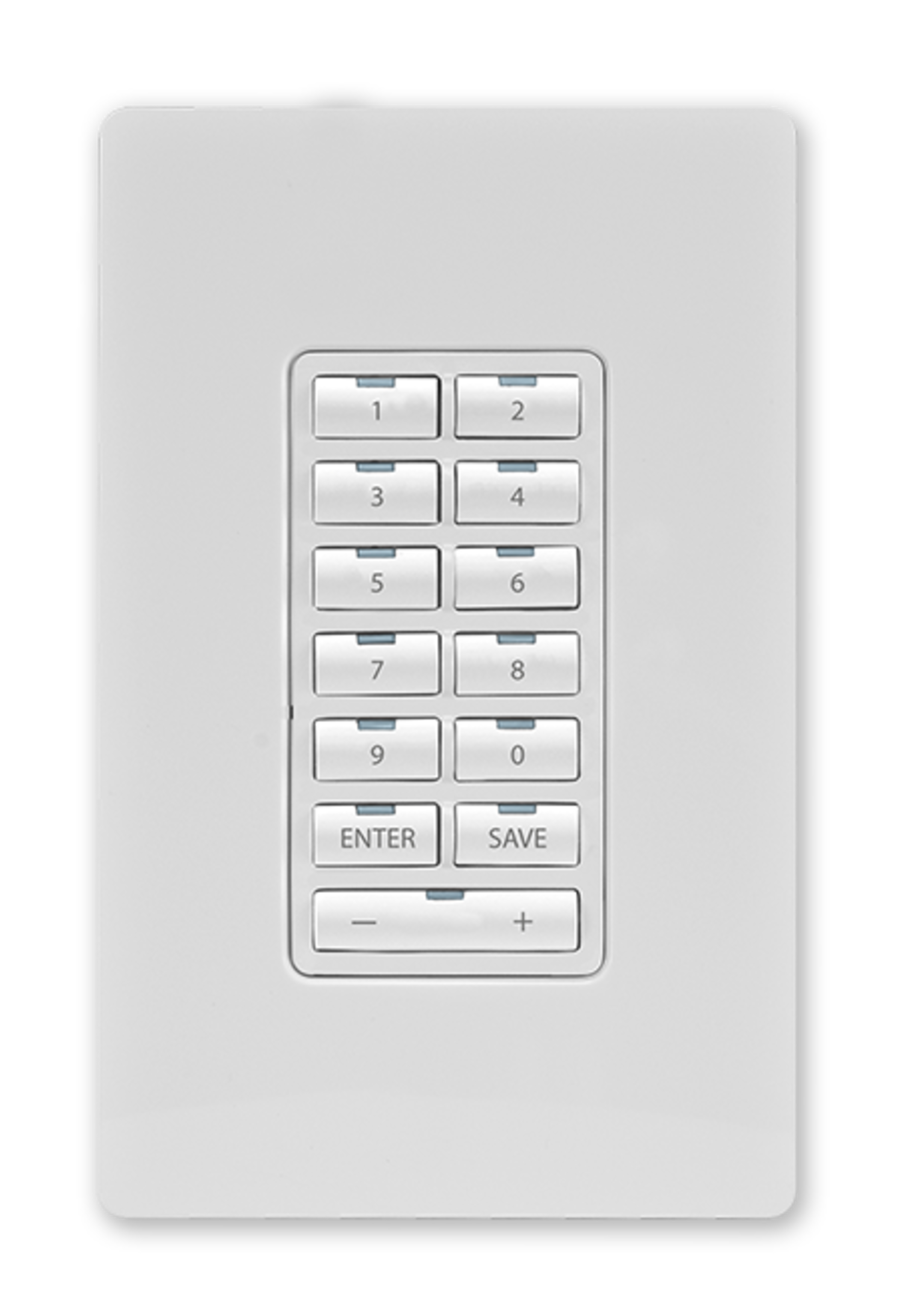

  • 标准按钮包括“1-9”、“0”、“回车”、“保存”和“+/-”
  • 蓝色 LED 亮起指示按钮选择
  • 方便匹配 NI-3101-SIG 控制器
  • 底部按钮用作一个或两个按钮



注:未包含键盘壁板。参见 ALD-CW-1 和 ALD-CW-2。

性能

尺寸(高宽厚) 键盘和安装板:4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm)
装配 装入标准的装饰风格墙板
前面板组件 13 个带蓝色 LED 指示灯的触控式按钮
后面板组件 DIP 开关,AxLink 连接器
电源 12 VDC, 30mA
FG Numbers

FG5794-02-WH (White)
FG5794-02-BL (Black)
FG5794-02-LA (Light Almond)
