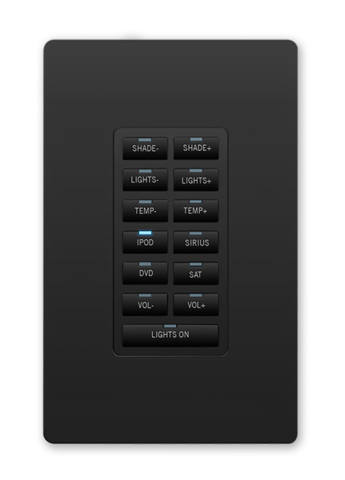

The Metreau 13-Button AxLink Keypad offers 13 buttons (12 single-width and 1 double-width) and can be used as in individual keypad or in conjunction with the 6- and 7-button Metreau configurations.
Larger Images
Common Applications
Ideal for cost effective control for kitchens, bathrooms, classrooms and other applications requiring simplified control of a variety of connected system devices.
Configuration Tool
Downloads
| Size | ||||
Data Sheet
updated: Nov 21, 2020
|
520 KB | |||
Manuals | ||||
|
|
2.57 MB | |||
CAD Drawings | ||||
|
|
90.9 KB | |||
|
|
2.19 MB | |||
Bim Objects | ||||
|
|
||||
Safety Sheets | ||||
|
|
80.8 KB | |||
Certifications | ||||
|
|
255 KB | |||
Configuration Tools | ||||
|
|
||||
Information Documents | ||||
|
|
92.7 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Features
- Fits in decor-style wallplates
- AxLink connectivity to NetLinx master
- Standard buttons include 1-9, 0, ENTER, SAVE, and +/-
- Blue LEDs glow to indicate button selection
- Conveniently matches the NI-3101-SIG Controller
- Bottom button can act as a single button or as two buttons
NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2.
Specifications
| Dimensions (HWD) | Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm) |
| Mounting | Mounts into standard decor-style wallplates |
| Front Panel Components | 13 tactile pushbuttons with blue LED indicators |
| Rear Panel Components | DIP switch, AxLink connector |
| Power | 12 VDC, 30mA |
| FG Numbers | FG5794-02-WH (White) |
NOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
