The AMX SVSI NMX-ENC-N2615D-WP is a cost-effective, powerfully robust encoder wallplate. It features a high-quality, low-latency 4K60 4:4:4 MWC codec that is ideal for encoding both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.
N2600D models support our Virtual Network USB 2.0 Hub technology. These models not only support transport of full-bandwidth USB 2.0 signals, but also enable USB device signals from up to four decoders to be combined and connected to a single USB host on an encoder. A laptop on the meeting room table can now simultaneously connect to multiple remote USB devices such as a camera near the display and an audio DSP in an equipment closet.

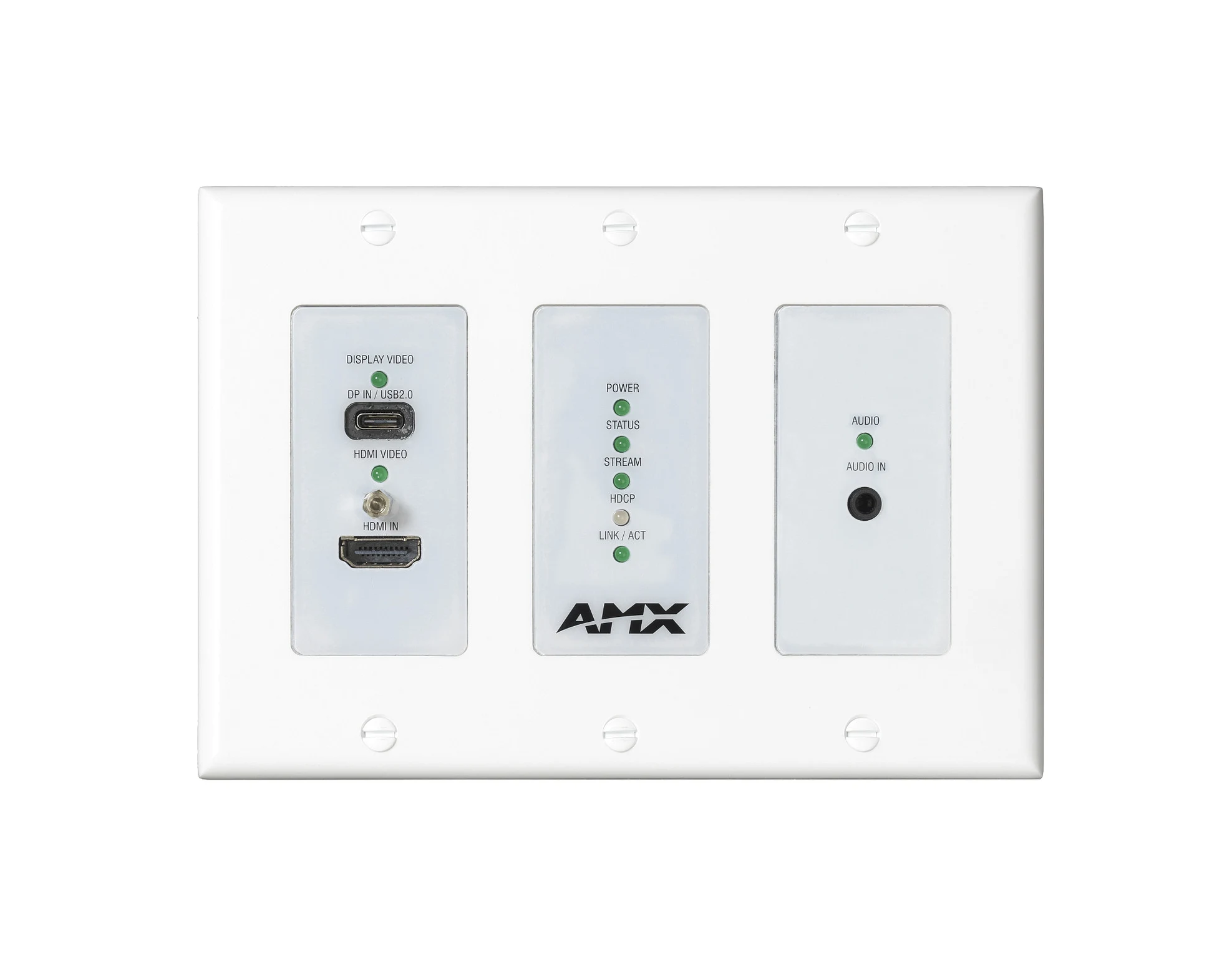

Additional features include video preview images, viewable from the built-in web interface or from a touch panel, and enhanced support for high-security networks. The wallplate includes an HDMI input and a USB-C input which supports both video and USB 2.0 on a single connector.
The NMX-ENC-N2615D-WP supports Dante AV-A, a standard for AVoIP devices created to allow for the interoperability of multiple devices on the network. With Dante AV-A, the NMX-ENC-N2615D-WP is compatible with Dante Controller, Dante Domain Manager, and Dante Director. All signal routing, configuration, and IT-level management for your audio and video devices can now be managed using the same tools.
These Encoder Wallplates are available in two models: NMX-ENC-N2615D-WP-NA (US Version) and NMX-ENC-N2615D-WP-EK (EU/UK Version). Models include both black and white faceplate inserts and wallplate covers to ensure they blend seamlessly within modern decors.
DANTE AV-A
N2600 models feature up to 4K60 4:4:4 Video and Audio interoperability with other products based on Dante AV-A technology. Dante Controller, Dante Domain Manager, and Dante Director can be used to manage signal routing, configuration, and IT-level management.
High-Quality, Low-Latency 4K60 4:4:4 MWC Streaming
High-quality, low-latency 4K60 4:4:4 MWC streaming delivers excellent video quality for transmitting both live video and detailed content within classrooms, meeting spaces, courtrooms, bars, and other applications.

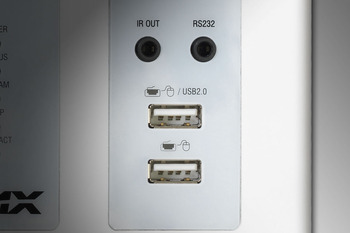

Virtual Network USB 2.0 Hub
Full-bandwidth USB 2.0 routing allows USB devices such as cameras and conferencing soundbars to be easily integrated into room solutions. Virtual Network USB Hub technology allows the USB signal from up to four decoders to be combined and delivered to a USB host on any encoder.
WALLPLATE ENCODING AND DECODING FOR SEAMLESS INSTALLS
Wallplates create far cleaner and more secure installations for many applications. Installing a wallplate decoder behind a display reduces installation time, requires fewer cables, and solves the challenge of where and how to mount a box.
Enterprise Networking Features
Multicast support, VLAN tagging, QoS, and the latest N2600 integrated security features ease enterprise IT teams’ ability to manage network traffic effectively, which can allow SVSI AVoIP solutions to share the enterprise network with other systems.

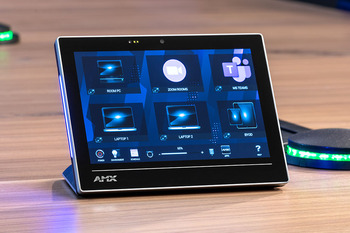

OPEN DIRECT-CONTROL API
An open API makes it possible for any control system or application, such as Zoom Rooms, to control the device. Whether N2600 is being included in the project as part of a larger HARMAN Professional installation, or it’s the only AMX product in an installation with many other control and audio products from various manufacturers, the open API will allow it to be integrated seamlessly.
