PS-POE-AT-TC

大功率 PoE 供电器,符合 802.3AT 标准

PS-POE-AT-TC

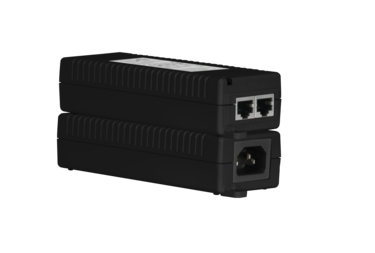

较大的图像

使用高功率 PS-POE-AT-TC 供电器,即可通过单根电缆将电力和数据传输到远程的以太网供电 (PoE) 触控面板。需要与 MVP-9000i 和 DXLink 双绞线发射器和接收器搭配使用,另外还兼容 MXT-1000、MXD-1000、MXT-700、MXD-700 和 MXD-430。这种独立的单端口 PoE 千兆电源将直流电源和数据“注入”同一条双绞线电缆,最远距离可达 100 米。

更多详情

PS-POE-AT-TC PoE 供电器通过单个以太网连接按需将电源和数据发送到兼容触控面板的墙壁或桌面扩展坞。

下载

  Version Language Size Uploaded
CAD Drawings
file type icon Pictorial Drawing - PS-POE-AT-TC High-Power 802.3at Compliant PoE Injector (PDF)
updated: 7月 2018
    143.5 KB 7月 2018
file type icon Pictorial Drawing - PS-POE-AT-TC High-Power 802.3at Compliant PoE Injector (DXF)
updated: 7月 2018
    248.2 KB 7月 2018
file type icon Pictorial Drawing - PS-POE-AT-TC High-Power 802.3at Compliant PoE Injector (DWG)
updated: 7月 2018
    99.0 KB 7月 2018
BIM Objects
file type icon PS-POE-AT-TC - BIM Object
updated: 8月 2019
    8月 2019
Quick Start Guides
file type icon Quick Start Guide - PS-POE-AT-TC High-Power 802.3at Compliant PoE Injector
version D, updated: 7月 2018
  123.3 KB 7月 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • 数据传输速率达到 10/100/1000 (MbPS)
  • 符合 IEEE802.3at 要求
  • 具有加载诊断 LED 指示灯
  • 100/240 VAC 通用输入

性能

尺寸(高宽厚) 5 1/2" x 2 1/8" x 1 1/4" (14 cm x 5.3 cm x 3.25 cm)
重量 .44 lbs (200 g)
环境
  • Temperature (Operating):
    • -4°F to 104°F (-20°C to 40°C) @ 30W
    • -4°F to 131°F (-20°C to 55°C) @ 22.5W
  • Temperature (Storage): -4°F to +158°F (-20°C to +70°C)
  • Relative Humidity (Operating): Maximum 90%, Non-Condensing
  • Thermal Rating: 20 BTU/hr (@240VAC)
  • Operating Altitude: -1000 to 10,000 ft. (-304.8 to 3048 m)
General
  • LEDs:
    • Yellow (On): power is on and active
    • Green (On): A remote terminal is connected
    • Green (Blinking): Overload state or short circuit
  • Enclosure: Molded black matte plastic
  • Cord and Connectors: Dual shielded RJ45 jacks built into the enclosure, EIA 568A and 568B
  • Approvals:
    • IEEE 802.3at (PoE)
    • RoHS / WEEE compliant
    • CE
    • FCC Part 15, Class B
    • EN 55022 Class B (Emissions)
    • EN 55024 (Immunity)
    • VCCI (Japan)
    • C-Tick
    • UL/cUL per IEC 60950-1
    • GS Mark per IEC 60950-1

输入

  • LEDs:
    • Yellow (On): power is on and active
    • Green (On): A remote terminal is connected
    • Green (Blinking): Overload state or short circuit
  • Enclosure: Molded black matte plastic
  • Cord and Connectors: Dual shielded RJ45 jacks built into the enclosure, EIA 568A and 568B
  • Approvals:
    • IEEE 802.3at (PoE)
    • RoHS / WEEE compliant
    • CE
    • FCC Part 15, Class B
    • EN 55022 Class B (Emissions)
    • EN 55024 (Immunity)
    • VCCI (Japan)
    • C-Tick
    • UL/cUL per IEC 60950-1
    • GS Mark per IEC 60950-1

输出

  • Pass Through Data Rates: 10/100/1000 Mbps
  • Output Voltage: 55 VDC Nominal
  • Output Power: 30 Watts (Guaranteed)
  • Output Current: 0.6A (max)
  • Ripple and Noise: Below the IEEE802.3af requirements
    • f<500Hz: Vp-p 0.5
    • 500Hz to 150kKHz: Vp-p 0.2
    • 150KHz to 500KHz: Vp-p 0.15
    • 500KHz to 1MHz: Vp-p 0.1
  • Transient Response: Meets IEC61000-4-4 (1Kv)
  • DXLink Transport Layer Throughput: 10.2 Gbps pass thru (only applicable to DXLink signals)
兼容的 AMX 产品
  • DX-TX, DXLink™ Multi-Format Transmitter Module (FG1010-310)
  • DX-TX-DWP, DXLink Multi-Format Decor Style Wallplate Transmitters (US) (FG1010-325-BL/-WH)
  • DX-TX-WP, DXLink Multi-Format Wallplate Transmitters (FG1010-320-BL/WH)
  • DX-RX, DXLink HDMI Receiver Module (FG1010-500)
  • MVP-9000i, 9” Modero® ViewPoint® Touch Panel with Intercom (FG5967-01/02)
FG Numbers FG423-84
