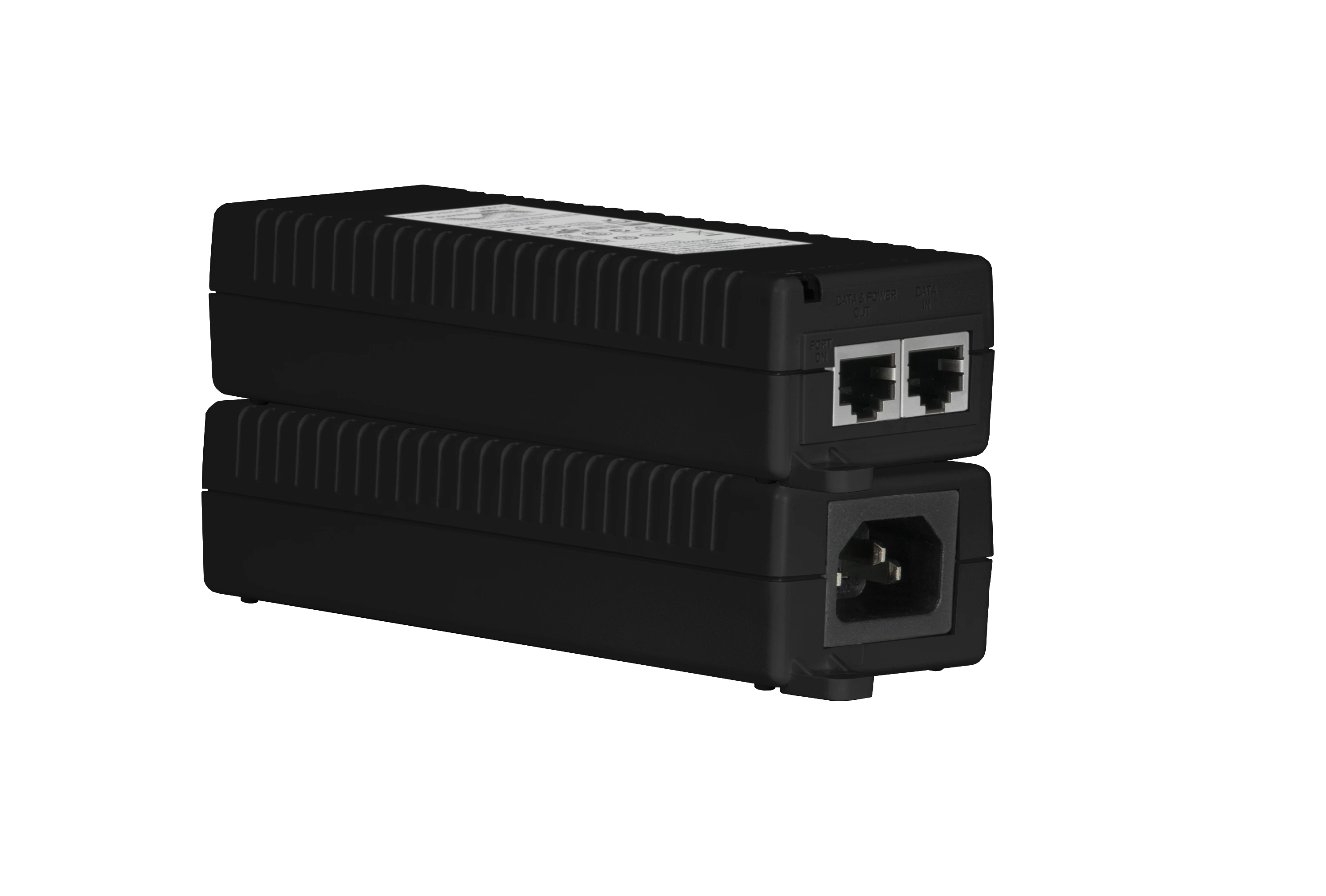

PS-POE-AT-TC

High Power PoE Injector, 802.3AT Compliant

PS-POE-AT-TC
Larger Images

With the high power PS-POE-AT-TC Injector, transmit both power and data through a single cable to a remotely located Power-over-Ethernet (PoE) touch panel. Required for use with the MVP-9000i and DXLink Twisted Pair Transmitters and Receivers, it is also compatible with the MXT-1000, MXD-1000, MXT-700, MXD-700 and MXD-430. This self-contained single-port PoE gigabit power supply "injects" DC power and data into the same twisted pair cable at a distance of up to 100 meters (328 feet).

Common Applications

The PS-POE-AT-TC PoE Injector sends power and data on demand to wall or table docking stations of compatible touch panels via a single Ethernet connection.

Downloads

  Version Language Size Uploaded
CAD Drawings
file type icon Pictorial Drawing - PS-POE-AT-TC High-Power 802.3at Compliant PoE Injector (PDF)
updated: Jul 2018
    144 KB Jul 2018
file type icon Pictorial Drawing - PS-POE-AT-TC High-Power 802.3at Compliant PoE Injector (DXF)
updated: Jul 2018
    248 KB Jul 2018
file type icon Pictorial Drawing - PS-POE-AT-TC High-Power 802.3at Compliant PoE Injector (DWG)
updated: Jul 2018
    99 KB Jul 2018
Bim Objects
file type icon PS-POE-AT-TC - BIM Object
updated: Aug 2019
    Aug 2019
Quick Start Guides
file type icon Quick Start Guide - PS-POE-AT-TC High-Power 802.3at Compliant PoE Injector
version D, updated: Jul 2018
  123 KB Jul 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • 10/100/1000 (MbPS) Data Rates
  • Meets IEEE802.3at requirements
  • Load Diagnostic LED
  • 100/240 VAC Universal Input

Specifications

Dimensions (HWD) 5 1/2" x 2 1/8" x 1 1/4" (14 cm x 5.3 cm x 3.25 cm)
Weight .44 lbs (200 g)
Environmental
  • Temperature (Operating):
    • -4°F to 104°F (-20°C to 40°C) @ 30W
    • -4°F to 131°F (-20°C to 55°C) @ 22.5W
  • Temperature (Storage): -4°F to +158°F (-20°C to +70°C)
  • Relative Humidity (Operating): Maximum 90%, Non-Condensing
  • Thermal Rating: 20 BTU/hr (@240VAC)
  • Operating Altitude: -1000 to 10,000 ft. (-304.8 to 3048 m)
General
  • LEDs:
    • Yellow (On): power is on and active
    • Green (On): A remote terminal is connected
    • Green (Blinking): Overload state or short circuit
  • Enclosure: Molded black matte plastic
  • Cord and Connectors: Dual shielded RJ45 jacks built into the enclosure, EIA 568A and 568B
  • Approvals:
    • IEEE 802.3at (PoE)
    • RoHS / WEEE compliant
    • CE
    • FCC Part 15, Class B
    • EN 55022 Class B (Emissions)
    • EN 55024 (Immunity)
    • VCCI (Japan)
    • C-Tick
    • UL/cUL per IEC 60950-1
    • GS Mark per IEC 60950-1
Input
  • LEDs:
    • Yellow (On): power is on and active
    • Green (On): A remote terminal is connected
    • Green (Blinking): Overload state or short circuit
  • Enclosure: Molded black matte plastic
  • Cord and Connectors: Dual shielded RJ45 jacks built into the enclosure, EIA 568A and 568B
  • Approvals:
    • IEEE 802.3at (PoE)
    • RoHS / WEEE compliant
    • CE
    • FCC Part 15, Class B
    • EN 55022 Class B (Emissions)
    • EN 55024 (Immunity)
    • VCCI (Japan)
    • C-Tick
    • UL/cUL per IEC 60950-1
    • GS Mark per IEC 60950-1
Output
  • Pass Through Data Rates: 10/100/1000 Mbps
  • Output Voltage: 55 VDC Nominal
  • Output Power: 30 Watts (Guaranteed)
  • Output Current: 0.6A (max)
  • Ripple and Noise: Below the IEEE802.3af requirements
    • f<500Hz: Vp-p 0.5
    • 500Hz to 150kKHz: Vp-p 0.2
    • 150KHz to 500KHz: Vp-p 0.15
    • 500KHz to 1MHz: Vp-p 0.1
  • Transient Response: Meets IEC61000-4-4 (1Kv)
  • DXLink Transport Layer Throughput: 10.2 Gbps pass thru (only applicable to DXLink signals)
Compatible AMX Products
  • DX-TX, DXLink™ Multi-Format Transmitter Module (FG1010-310)
  • DX-TX-DWP, DXLink Multi-Format Decor Style Wallplate Transmitters (US) (FG1010-325-BL/-WH)
  • DX-TX-WP, DXLink Multi-Format Wallplate Transmitters (FG1010-320-BL/WH)
  • DX-RX, DXLink HDMI Receiver Module (FG1010-500)
  • MVP-9000i, 9” Modero® ViewPoint® Touch Panel with Intercom (FG5967-01/02)
FG Numbers FG423-84
