PR01-0808

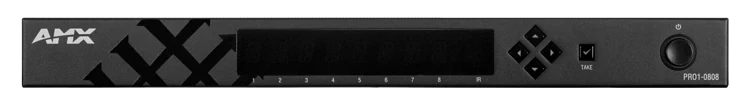

Precis® 8x8 4K60 HDMI 矩阵切换器

PR01-0808

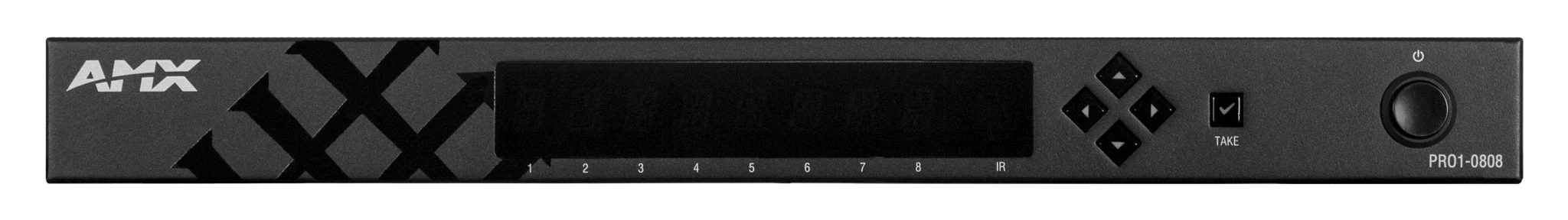

较大的图像

AMX Precis 8x8 矩阵切换器是具有 8 个 HDMI 输入和输出的经济高效的 4K60 4:4:4 固定矩阵切换解决方案。 其中 4 个输出还具有镜像 HDBaseT 输出,可直接连接到支持标准 HDBaseT 的显示器或投影仪,或与 AMX PR01-RX HDBaseT 接收器和缩放器配合使用。 内置 HDBaseT 镜像输出的添加为长距离传输视频提供了一种经济高效的解决方案,而不会降低视频质量。

Precis 支持 4K60 4:4:4 和 HDCP 2.2,可在经济实惠的固定矩阵解决方案中与最新的信号源和显示分辨率兼容。 由于 Precis 包含动态音频去嵌入能力,因此切换器可用于更多应用而无需额外的复杂配置。 凭借其固定的配置,AMX Precis 提供了一种具有成本效益且易于指定、采购和安装的切换解决方案。

更多详情

Precis 8x8 4K60 HDMI 矩阵切换器是用于礼堂、演讲厅、礼拜堂、大厅和企业场地的经济高效、美观的 HDMI 矩阵切换的基本解决方案。 与 PR01-RX Precis 缩放接收器配合使用时,4 个镜像 HDBaseT 输出提供远程传输。

下载

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual – PR01-0808
version 1.0.6, updated: 9月 2021
1.0.6    2.7 MB 9月 2021
CAD Drawings
file type icon Pictorial Drawing (DXF) – PR01-0808
updated: 3月 2021
    9.3 MB 3月 2021
file type icon Pictorial Drawing (DWG) – PR01-0808
updated: 3月 2021
    1.6 MB 3月 2021
file type icon Pictorial Drawing (PDF) – PR01-0808
updated: 3月 2021
    263.7 KB 3月 2021
Firmware
platform icon PR01-0808 Firmware
version 1.42, updated: 6月 2021
1.42     21.0 MB 6月 2021
Quick Start Guides
file type icon Quick Start Guide – PR01-0808
version B, updated: 12月 2018
  2.0 MB 12月 2018
Certifications
file type icon PR01-0808 CE Declaration of Conformity
updated: 10月 2020
    680.3 KB 10月 2020
file type icon PR01-0808 IECEE CB Certificate
updated: 10月 2020
    811.5 KB 10月 2020
Product Guides
file type icon DXLink Compatibility Tool
updated: 4月 2021
    4月 2021
Data Sheets
file type icon Data Sheet – PR01-0808
updated: 9月 2021
    523.1 KB 9月 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • 4K60 4:4:4 支持- 体验具有完整 4:4:4 色彩空间的 4K60 源视频的像素级视频还原。
  • HDCP 2.2 支持- 支持最新的源设备。
  • 镜像 HDBaseT 输出- 可连接到 PR01-RX 接收器或直接连接到支持标准 HDBaseT 的显示器或投影仪。
  • 本地 NetLinx 设备 -可与 AMX 自动化系统轻松集成。
  • 固定配置 -简单的设计和实施。
  • 音频去嵌入概念 - 适用于多种应用的灵活设计。

性能

视频输入 (8) HDMI; supports HDMI/HDCP
视频输出 (8) HDMI; supports HDMI/HDCP

(4) HDBaseT; mirror associated HDMI outputs; supports digital video, audio, Ethernet, and bi-directional control
视频分辨率支持 Various up to 4096 x 2160@ 60 Hz - Reference Data Sheet for Specific Resolution Support
输入端口 Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel, PCM Multi-Channel, Dolby TrueHD, & DTS HD MA
输出端口 (8) 3 Position 3.5mm pluggable Phoenix Terminal Block; supports Unbalanced Analog Stereo
Ports AC Power: (1) IEC Power Connector; HDMI Input: (8) HDMI Type A Socket; HDMI Output: (8) HDMI Type A Socket; HDBaseT Output: (4) RJ-45 Connector; RS-232 Pass-through: (4) 3 Position 3.5mm pluggable Phoenix Terminal Block; IR RX: (4) 3.5mm Mini-Stereo Jack; Ethernet: (1) RJ45 Connector; Analog Stereo Output: (8) 3 Position 3.5mm pluggable Phoenix Terminal Block; RS-232: (1) DB-9 Port; IR Ext.: (1) 3.5mm Mini-Stereo Jack; Program Port: (1) USB Micro-B Port
环境 Temperature (Operating): 32°F (0°C) to 122°F (50°C)
Temperature (Storage): 14°F (-10°C) to 140°F (60°C)
Humidity (Operating): 5% to 85% RH (non-condensing)
Humidity (Storage): 5% to 85% RH (non-condensing)
Thermal Dissipation (Typical): 341.2 BTU/hr
Regulatory Compliance FCC
CE
ETL
PSE
RCM
尺寸(高 x 宽 x 厚) 1.71” x 17.32” x 12.6” (4.35 x 44 x 32 cm)
重量 Approx. 4 lbs. (8.75 kg)
FG Numbers FG1020-800
