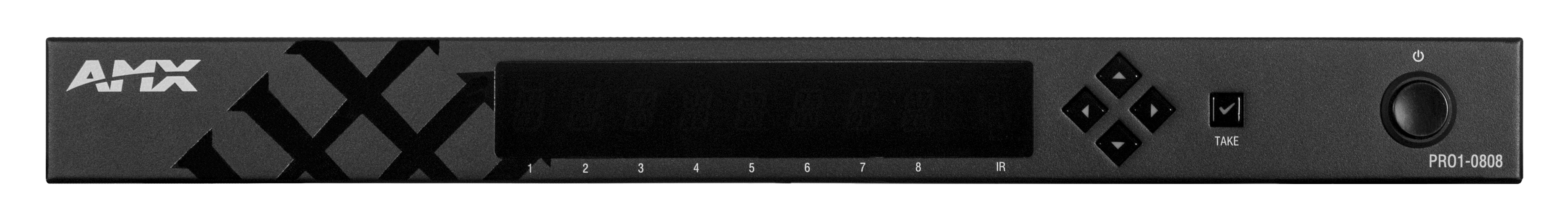

Precis® 8x8+4 4K60 HDMI Matrix Switcher

PR01-0808
Larger Images

The AMX Precis 8x8+4 Matrix Switcher is a cost effective 4K60 4:4:4 fixed matrix switching solution which features 8 HDMI inputs and outputs. 4 of the outputs feature mirrored HDBaseT outputs as well, providing connection directly to a display or projector that supports standard HDBaseT or for use with the AMX PR01-RX HDBaseT Receiver and Scaler. The addition of built-in HDBaseT mirrored outputs provides a cost-effective solution for distributing video over longer distances without degrading video quality.

The PR01-0808 supports HDMI 2.0, HDCP 2.2, and HDR providing compatibility with the latest source and display resolutions in an affordable fixed matrix solution. Because the Precis includes dynamic audio de-embedding capabilities, the switcher can be used in more applications without additional complexity. With its fixed configuration, the AMX Precis provides a switching solution that is cost-effective and easy to specify, procure, and install.

COMMON APPLICATIONS

The Precis 8x8 4K60 HDMI Matrix Switcher is the essential solution for cost effective, beautiful HDMI matrix switching for auditoriums, lecture halls, worship halls, lobbies, and corporate venues. 4 mirrored HDBaseT outputs provide distance transport when used with the PR01-RX Precis Scaling Receiver.

Downloads

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual – PR01-0808
version 1.0.6, updated: Sep 2021
1.0.6    2.71 MB Sep 2021
CAD Drawings
file type icon Pictorial Drawing (DXF) – PR01-0808
updated: Mar 2021
    9.28 MB Mar 2021
file type icon Pictorial Drawing (DWG) – PR01-0808
updated: Mar 2021
    1.59 MB Mar 2021
file type icon Pictorial Drawing (PDF) – PR01-0808
updated: Mar 2021
    264 KB Mar 2021
Firmware
platform icon PR01-0808 Firmware
version 1.42, updated: Jun 2021
1.42     21 MB Jun 2021
Quick Start Guides
file type icon Quick Start Guide – PR01-0808
version B, updated: Dec 2018
  2.04 MB Dec 2018
Certifications
file type icon PR01-0808 CE Declaration of Conformity
updated: Oct 2020
    680 KB Oct 2020
file type icon PR01-0808 IECEE CB Certificate
updated: Oct 2020
    811 KB Oct 2020
Product Guides
file type icon DXLink Compatibility Tool
updated: Apr 2021
    Apr 2021
Data Sheets
file type icon Data Sheet – PR01-0808
updated: Sep 2021
    523 KB Sep 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • 4K60 4:4:4 Support– Experience pixel-for-pixel video reproduction of 4K60 source video with full 4:4:4 color space.
  • High Dynamic Range (HDR) Support –Support for HDR
  • HDMI 2.0 & HDCP 2.2 -Supports the latest video standards to realize the full capabilities of HDMI interfaces
  • Mirrored HDBaseT Outputs– Connect to PR01-RX receivers or directly to a display or projector that supports standard HDBaseT.
  • Fixed configuration – simple design and implementation.
  • Audio De-embed capabilities – flexible design for use in more applications.
  • NetLinx Native –Easy integration with AMX automation systems.
  • Open Control API– Integrates into designs with any control system

Specifications

Video Inputs (8) HDMI; supports HDMI/HDCP
Video Outputs (8) HDMI; supports HDMI/HDCP

(4) HDBaseT; mirror associated HDMI outputs; supports digital video, audio, Ethernet, and bi-directional control
Video Resolution Support Various up to 4096 x 2160@ 60 Hz - Reference Data Sheet for Specific Resolution Support
Audio Inputs Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel, PCM Multi-Channel, Dolby TrueHD, & DTS HD MA
Audio Outputs (8) 3 Position 3.5mm pluggable Phoenix Terminal Block; supports Unbalanced Analog Stereo
Ports AC Power: (1) IEC Power Connector; HDMI Input: (8) HDMI Type A Socket; HDMI Output: (8) HDMI Type A Socket; HDBaseT Output: (4) RJ-45 Connector; RS-232 Pass-through: (4) 3 Position 3.5mm pluggable Phoenix Terminal Block; IR RX: (4) 3.5mm Mini-Stereo Jack; Ethernet: (1) RJ45 Connector; Analog Stereo Output: (8) 3 Position 3.5mm pluggable Phoenix Terminal Block; RS-232: (1) DB-9 Port; IR Ext.: (1) 3.5mm Mini-Stereo Jack; Program Port: (1) USB Micro-B Port
Environmental Temperature (Operating): 32°F (0°C) to 122°F (50°C)
Temperature (Storage): 14°F (-10°C) to 140°F (60°C)
Humidity (Operating): 5% to 85% RH (non-condensing)
Humidity (Storage): 5% to 85% RH (non-condensing)
Thermal Dissipation (Typical): 341.2 BTU/hr
Regulatory Compliance FCC
CE
ETL
PSE
RCM
Dimensions (H x W x D) 1.71” x 17.32” x 12.6” (4.35 x 44 x 32 cm)
Weight Approx. 4 lbs. (8.75 kg)
FG Numbers FG1020-800
