HDBaseT Receiver and Scaler

Larger Images

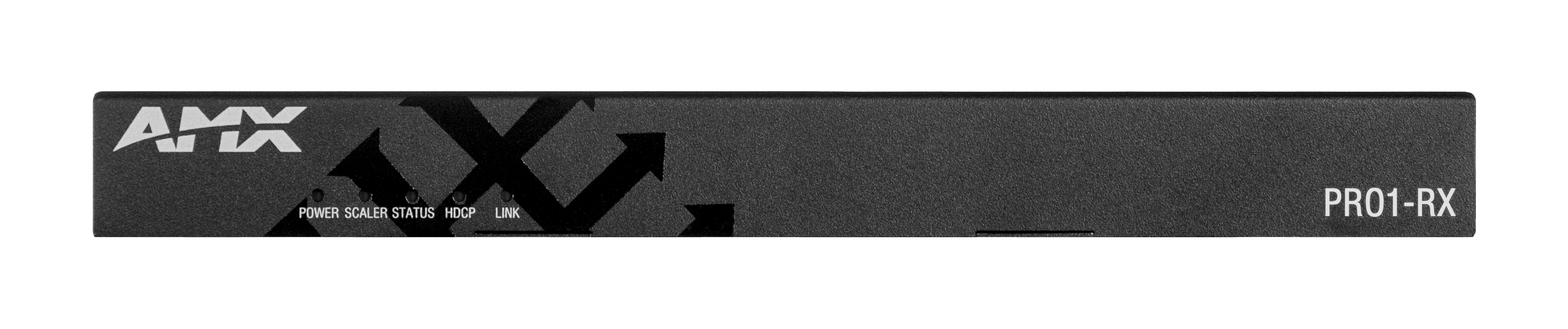

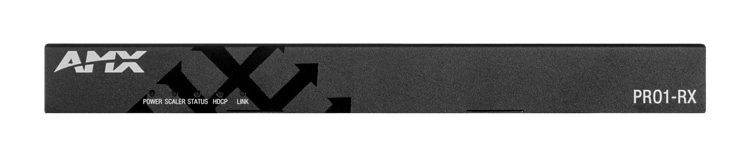

The AMX PR01-RX HDBaseT Receiver and Scaler provides a cost-effective end-point for the AMX Precis 8x8 HDMI Matrix Switcher. The affordable PR01-RX receiver provides built-in scaling, network passthrough, and network configuration, offering a cost-effective solution for distributing video outputs from the Precis 8x8 over longer distances without degrading video quality. The addition of built-in scaling on the PR01-RX provides clean transitions when switching between sources and an output that matches the display resolution regardless of the source.


The PR01-RX is designed for use with the PR01-0808 Precis 8x8 4K60 HDMI Matrix Switcher to receive signals from the Precis mirrored HDBaseT distance transport outputs.


  Version Language Size Uploaded
file type icon Data Sheet
updated: Sep 2023
    307 KB Sep 2023
file type icon Instruction Manual - PR01-RX
version 1.0.3, updated: Mar 2021
1.0.3    1.94 MB Mar 2021
Bim Objects
file type icon PR01-RX - BIM Object
updated: Aug 2019
    Aug 2019
platform icon PR01-RX Firmware
version 4.0, updated: Jun 2023
4.0     123 MB Jun 2023
Quick Start Guides
file type icon Quick Start Guide - PR01-RX
version B, updated: Dec 2018
  2.03 MB Dec 2018
file type icon PR01-RX CE Declaration of Conformity
updated: Oct 2020
    666 KB Oct 2020
file type icon PR01-RX IECEE CB Certificate
updated: Oct 2020
    462 KB Oct 2020
Product Guides
file type icon DXLink Compatibility Tool
updated: Apr 2021
    Apr 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


  • 4K60 Support with Built-in Scaling – Experience pixel-for-pixel video reproduction of 4K60 source video.
  • Scaling – Automatically converts signals up or down to match the resolution of the display.
  • HDBaseT Support – Uses the global standard for transmission of ultra-HD A/V, Ethernet, controls, USB and up to 100W of power over a single, long-distance cable.
  • NetLinx Native – Easy integration with AMX automation systems.


FG Numbers FG1020-050
