PS4.4

13.5 VDC,4.5 A 电源,含 2.1 mm 同轴桶式接口

较大的图像

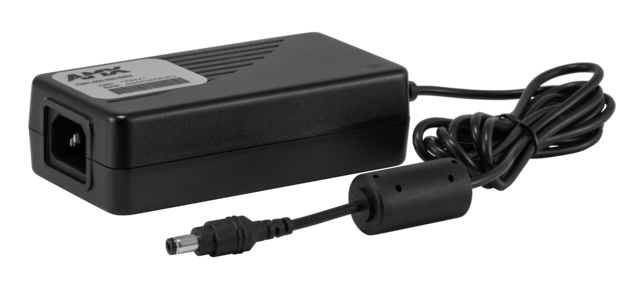

PS4.4 电源为 Modero ViewPoint 触控面板和 MVP 桌面扩展坞 (MVP-TDS) 提供 4.5 A 的直流电源。

下载

  Version Language Size Uploaded
CAD Drawings
Pictorial Drawing - PS4.4 13.5 VDC, 4.5 A Power Supply with 2.1 mm Coaxial Barrel Connector (PDF)
updated: 7月18日
    95.0 KB 7月18日
Pictorial Drawing - PS4.4 13.5 VDC, 4.5 A Power Supply with 2.1 mm Coaxial Barrel Connector (DXF)
updated: 7月18日
    148.9 KB 7月18日
Quick Start Guides
Quick Start Guide - Power Supplies
updated: 7月18日
    666.7 KB 7月18日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

尺寸(高宽厚) 4 5/8" x 2 1/4" x 1 1/2" (11.7 cm x 5.8 cm x 3.5 cm)
重量 1.1 lb (499 g)
Input Voltage 100-240 +10% VAC
Input Frequency 47-63 Hz
Input Current
  • 1.2A MAX at 115 VAC + full load
  • 0.6A MAX at 230 VAC + full load
Output Voltage 13.5 VDC
Output Current 4.5A MAX
Ripple and Noise 150 mV peak-to-peak @ full load
保护 Over-voltage, over-current, short-circuit, transient and thermal. Switching regulated, overload protected
Power Indicator Green LED indicates the presence of DC on the output
连接器 2.1 mm barrel plug
Power cables 50 mm IEC power cord terminated with a grounded Edison plug for AC input
音箱材料 Molded black matte plastic
环境 Operating Temperature: 32°F to 104°F (0°C to 40°C)
认证 UL: US listed - Class 1 Power Supply, CSA approved, CE approved
FG Numbers FG423-44
