AMX PS4.4

Larger Images

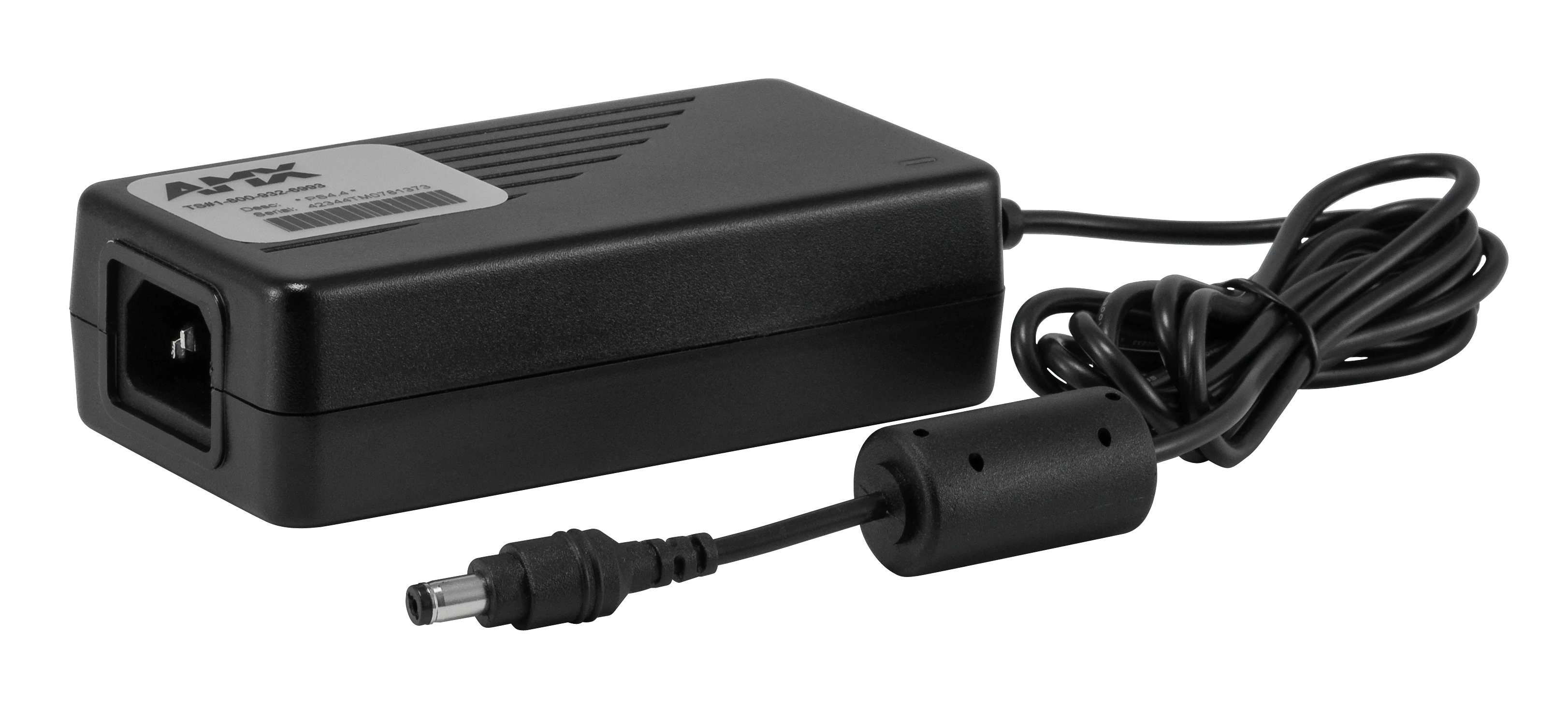

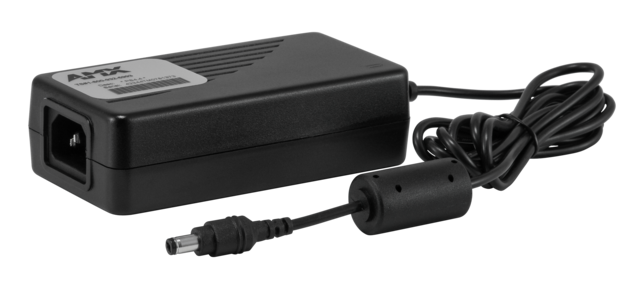

The PS4.4 power supply provides 4.5 A of DC power for Modero ViewPoint Touch Panels and MVP Tabletop Docking Station (MVP-TDS).

CAD Drawings

	Size	Uploaded
Pictorial Drawing - PS4.4 13.5 VDC, 4.5 A Power Supply with 2.1 mm Coaxial Barrel Connector (PDF) updated: Jul 2018	95 KB	Jul 2018
Pictorial Drawing - PS4.4 13.5 VDC, 4.5 A Power Supply with 2.1 mm Coaxial Barrel Connector (DXF) updated: Jul 2018	149 KB	Jul 2018

Quick Start Guides

	Size	Uploaded
Quick Start Guide - Power Supplies updated: Sep 2024	688 KB	Sep 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Dimensions (HWD)	4 5/8" x 2 1/4" x 1 1/2" (11.7 cm x 5.8 cm x 3.5 cm)
Weight	1.1 lb (499 g)
Input Voltage	100-240 +10% VAC
Input Frequency	47-63 Hz
Input Current	1.2A MAX at 115 VAC + full load 0.6A MAX at 230 VAC + full load
Output Voltage	13.5 VDC
Output Current	4.5A MAX
Ripple and Noise	150 mV peak-to-peak @ full load
Protection	Over-voltage, over-current, short-circuit, transient and thermal. Switching regulated, overload protected
Power Indicator	Green LED indicates the presence of DC on the output
Connectors	2.1 mm barrel plug
Power cables	50 mm IEC power cord terminated with a grounded Edison plug for AC input
Enclosure Material	Molded black matte plastic
Environmental	Operating Temperature: 32°F to 104°F (0°C to 40°C)
Certification	UL: US listed - Class 1 Power Supply, CSA approved, CE approved
FG Numbers	FG423-44
