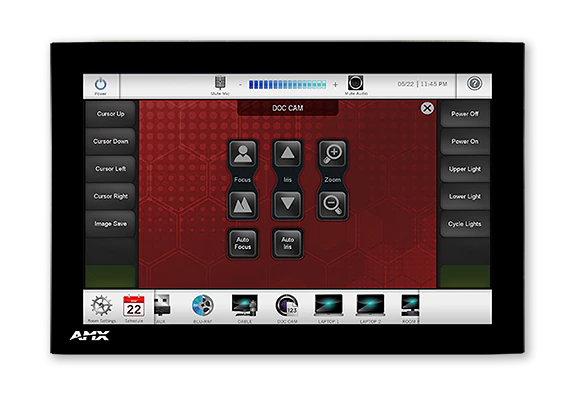

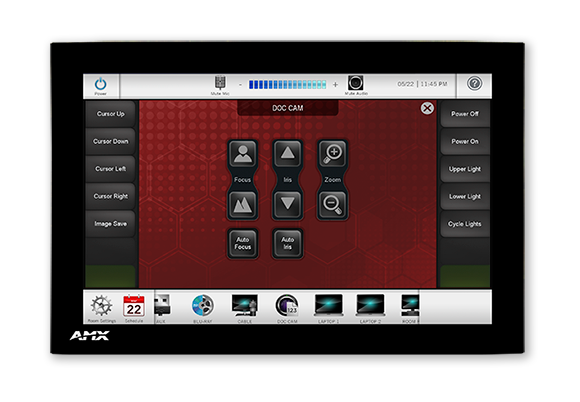

The MSD-1001 / 10.1" Modero S Series Wall Mount Touch Panel is a versatile, yet affordable control surface that is equally suited for scheduling or room control. With a generous selection of mounting options, the MSD-1001 can be placed on any flat surface (including glass) inside or outside a conference room or classroom, and the built-in room availability bar shows green or red depending on if the room is currently booked. Key features include a brilliant 24-color depth, PoE connectivity, video streaming, and VoIP support – all at an economical price point.
Gambar Lebih Besar
Keterangan Lebih Lanjut
- The MSD-1001 allows even the most cost sensitive meeting spaces to benefit from a dedicated scheduling panel, allowing users to view the room schedule at a glance and even reserve the room right from the panel.
- The MSD-1001 is also ideal as a second touch panel that is mounted on the wall or in a podium or lectern in a large conference room or classroom.
Unduhan
CAD Drawings
| Ukuran | |
| 192 KB | |
| 1,81 MB |
BIM Objects
| Ukuran | |
|
|
Software
| Ukuran | |
|
|
35,7 MB |
Firmware
| Ukuran | |
|
|
47,7 MB |
Quick Start Guides
| Ukuran | |
|
|
242 KB |
|
|
805 KB |
Certifications
| Ukuran | |
|
|
191 KB |
|
|
255 KB |
|
|
416 KB |
Touch Panel Files
| Ukuran | |
|
|
1,95 MB |
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
Fitur
- Grafis Canggih – Didukung oleh mesin grafis G4, Seri Modero S menampilkan streaming video dan kedalaman warna 24-bit yang cemerlang
- Bilah Ketersediaan Ruangan yang Elegan dengan Visibilitas 180° – Mudah lihat ke bawah koridor untuk mengetahui apakah ruang rapat sedang digunakan
- Pasang ke Permukaan Halus Apa Pun Termasuk Kaca – Gunakan Multi Mount Kit opsional dan pasang panel sentuh dinding Modero S ke permukaan halus apa pun
- Antarmuka Pengguna yang Elegan dan Responsif – Tampilan SmoothTouch™ eksklusif mendukung gestur sentuhan tunggal dan memberikan performa responsif
- Konsistensi Desain Arsitektur – Instal panel sentuh Modero S dan Modero X di seluruh fasilitas untuk gaya yang konsisten dengan anggaran apa pun
Spesifikasi
| Display Size (WH) | 9.1" x 5.9" (230 mm x 149 mm), 10.8" (274 mm) diagonal |
| Viewable Area (WH) | 8.5" x 5.4" (217 mm x 136 mm ), 10.0" (256 mm) diagonal |
| Resolution | 1280x800 |
| Viewing Angle | Vertical: ± 85°, Horizontal: ± 85° |
| Aspect Ratio | 16:9 |
| Touch Overlay | Resistive |
| Graphics Engine | AMX G4 |
| Front Panel Components | Sleep Button, Programmable Red/Green LEDs. See Data Sheet for details. |
| Power Consumption | Full-On: 14 W |
| Temperature Range | Operating: 32° F to 104° F (0° C to 40° C) |
| FG Numbers | FG2265-31 |
