MSD-1001

10.1" Modero S® Series G4 Wall Mount Touch Panel

Larger Images

This product is discontinued with a projected last order date of March 31, 2019.
The suggested alternative is MD-1002.

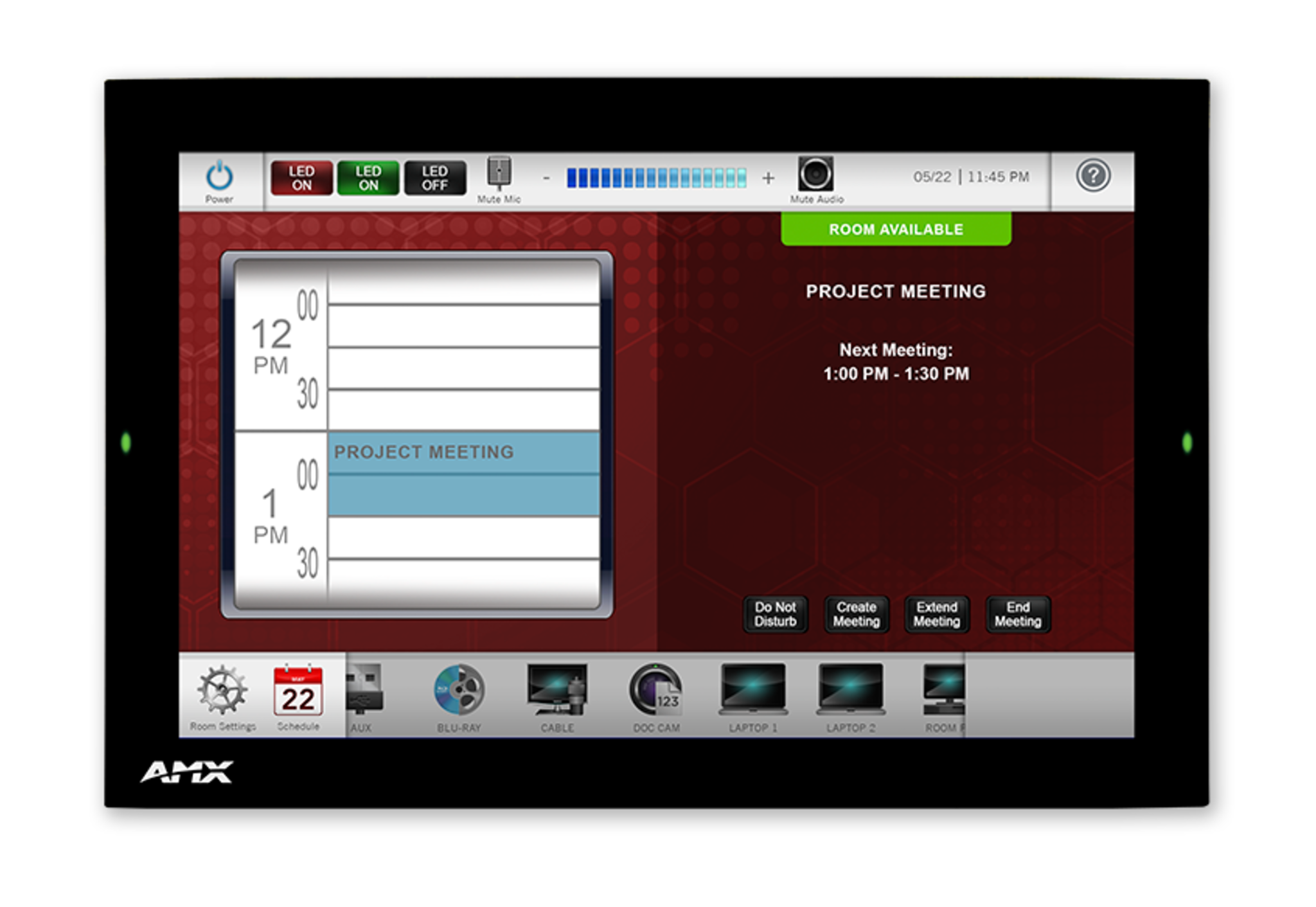

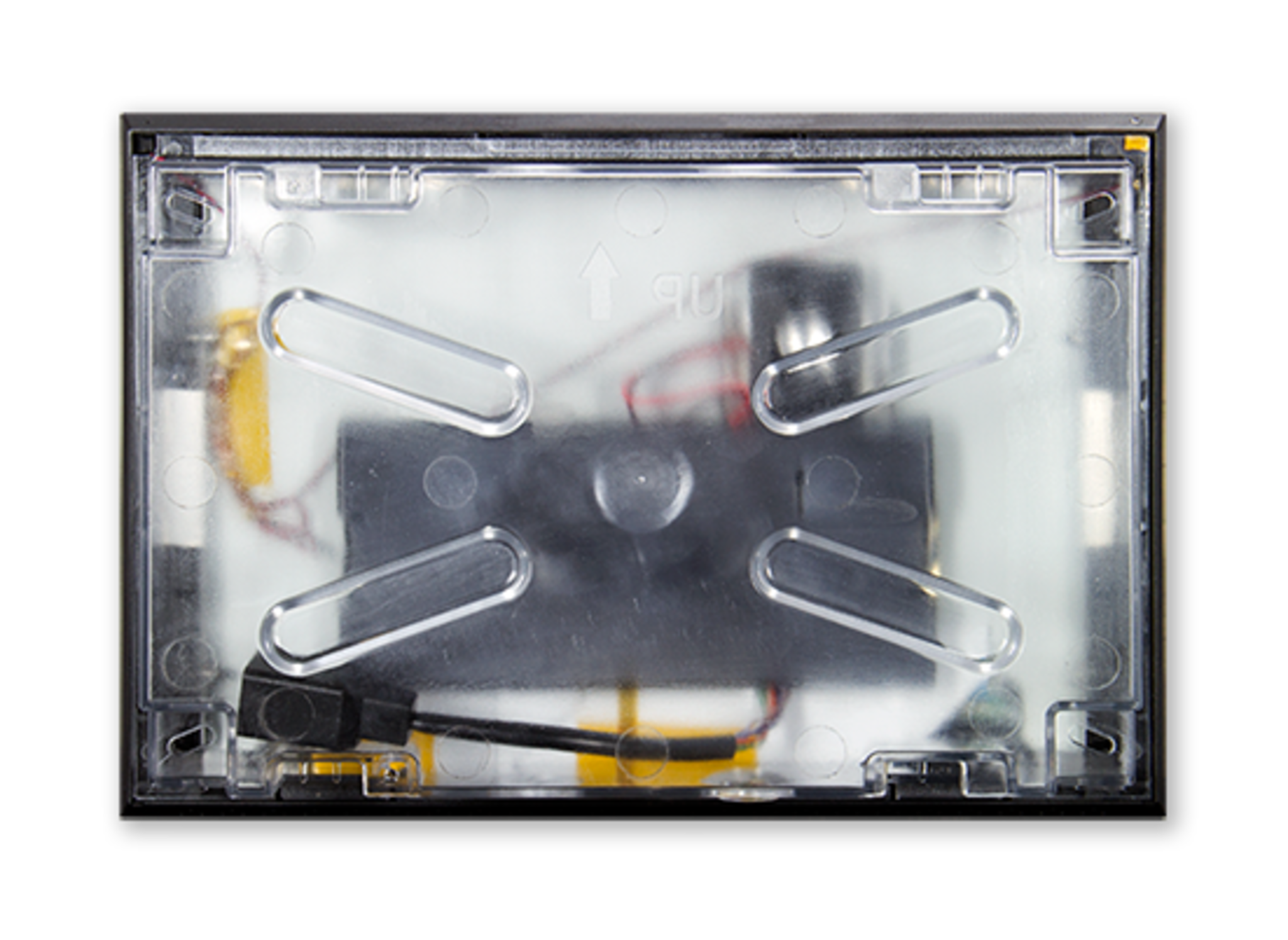

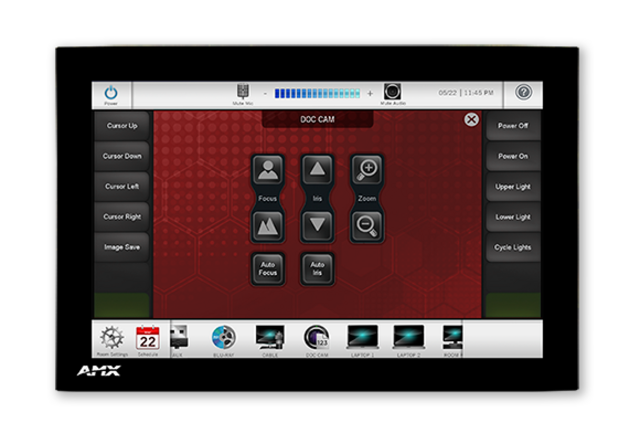

The MSD-1001 / 10.1" Modero S Series Wall Mount Touch Panel is a versatile, yet affordable control surface that is equally suited for scheduling or room control. With a generous selection of mounting options, the MSD-1001 can be placed on any flat surface (including glass) inside or outside a conference room or classroom, and the built-in room availability bar shows green or red depending on if the room is currently booked. Key features include a brilliant 24-color depth, PoE connectivity, video streaming, and VoIP support – all at an economical price point.

Common Applications

  • The MSD-1001 allows even the most cost sensitive meeting spaces to benefit from a dedicated scheduling panel, allowing users to view the room schedule at a glance and even reserve the room right from the panel.
  • The MSD-1001 is also ideal as a second touch panel that is mounted on the wall or in a podium or lectern in a large conference room or classroom.

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 06, 2018
    377 KB Jul 06, 2018
Comparison Chart
updated: Jul 09, 2018
    173 KB Jul 09, 2018
CAD Drawings
Pictorial Drawing - MSD-1001, 10" Modero S Series Landscape Wall Mount Touch Panel (DXF)
updated: Apr 03, 2018
    1.81 MB Apr 03, 2018
Pictorial Drawing - MSD-1001, 10" Modero S Series Landscape Wall Mount Touch Panel (PDF)
updated: Apr 03, 2018
    192 KB Apr 03, 2018
Bim Objects
MSD-1001 - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Software
G4 Support Files
version 3.3.62, updated: Jul 16, 2018
3.3.62    35.7 MB Jul 16, 2018
Modero S Series Touch Panels Firmware
version 2.108.40, updated: Mar 16, 2018
2.108.40    47.7 MB Mar 16, 2018
Programming Guides
Configuration and Programming Guide - Modero S/X Series G4 Touch Panels HydraPort Touch Connection Ports
updated: Mar 30, 2018
    2.16 MB Mar 30, 2018
Certifications
Modero S Series 4.3"/7"/10.1" Touch Panels UL Certificate of Compliance
updated: Apr 26, 2018
    416 KB Apr 26, 2018
Modero S Series 7"/10.1" Touch Panel CE Declaration of Conformity
updated: Apr 26, 2018
    255 KB Apr 26, 2018
Modero S Series 4.3"/7"/10.1" Touch Panels IECEE CB Test Certificate
updated: Apr 26, 2018
    191 KB Apr 26, 2018
Whitepapers
AMX AV/IT Administrator's Guide
updated: Apr 25, 2018
    2.61 MB Apr 25, 2018
Quick Start Guides
Quick Start Guide - MSD-1001-L2 Modero S Series Wall Touch Panel
updated: Mar 30, 2018
    805 KB Mar 30, 2018
Quick Start Guide - MSD-1001-L Modero S Series Wall Touch Panel
updated: Mar 30, 2018
    242 KB Mar 30, 2018
Touch Panel Files
MSD-1001 RMS Scheduling Touch Panel File (1280x800)
updated: Jul 17, 2018
    1.95 MB Jul 17, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Powerful Graphics – Powered by the G4 graphics engine, the Modero S Series features streaming video and brilliant 24-bit color depth
  • Elegant Room Availability Bar with 180° Visibility – Easily glance down the hall to see if meeting spaces are occupied
  • Mount to Any Smooth Surface Including Glass – Use the optional Multi Mount Kit and mount the Modero S wall touch panel to any smooth surface
  • Elegant & Responsive User Interface – Exclusive SmoothTouch™ display supports single touch gesturing and delivers responsive performance
  • Architectural Design Consistency – Install both Modero S and Modero X touch panels throughout a facility for consistent style on any budget

Specifications

Display Size (WH) 9.1" x 5.9" (230 mm x 149 mm), 10.8" (274 mm) diagonal
Viewable Area (WH) 8.5" x 5.4" (217 mm x 136 mm ), 10.0" (256 mm) diagonal
Resolution 1280x800
Viewing Angle Vertical: ± 85°, Horizontal: ± 85°
Aspect Ratio 16:9
Touch Overlay Resistive
Graphics Engine AMX G4
Front Panel Components Sleep Button, Programmable Red/Green LEDs. See Data Sheet for details.
Power Consumption Full-On: 14 W
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers

FG2265-31

Recommended Accessories

  • MSA-MMK2-10

    Multi Mount Kit for 10.1" Modero S Series Wall Mount Touch Panel
  • MSA-RMK-10

    Rack Mount Kit for 10" Modero S® Series Touch Panel
  • MSA-AMK2-10

    Any Mount Kit for 10.1" Modero S Series Wall Mount Touch Panel
  • MXA-MPL

    Modero X® and Modero S Series Multi Preview Live
  • PS-POE-AF-TC

    PoE Injector, 802.3AF Compliant
  • NXA-ENET8-POE+

    Gigabit PoE Ethernet Switch
  • CB-MSA-10

    Rough-In Box and Cover Plate for the 10.1" Wall Mount Modero S Series Touch Panel
  • MXA-CLK

    Modero X® and Modero S Series Screen Cleaning Kit
