NMX-DEC-N2625-WP
Tidak diproduksi

4K60 MWC Decoder Wallplate (US & UK/EU)

AMX_DEC_N2625_WP_NA_WHT_PlateNotIncluded_StraightFront_(1)
Gambar Lebih Besar

Produk Pengganti


Limited Availability in China

Note: This product is no longer being offered without an enabled Dante AV license. Though the hardware is identical and both models share the same firmware, for administrative purposes, the model number has been changed to NMX-DEC-N2625D-WP. Dante AV licenses are available for purchase directly from Audinate for existing NMX-DEC-N2625-WP encoders should that be desired. For more information about the licensing process, view our help article at https://help.harmanpro.com/how-to-add-dante-license-to-n2615-n2625.

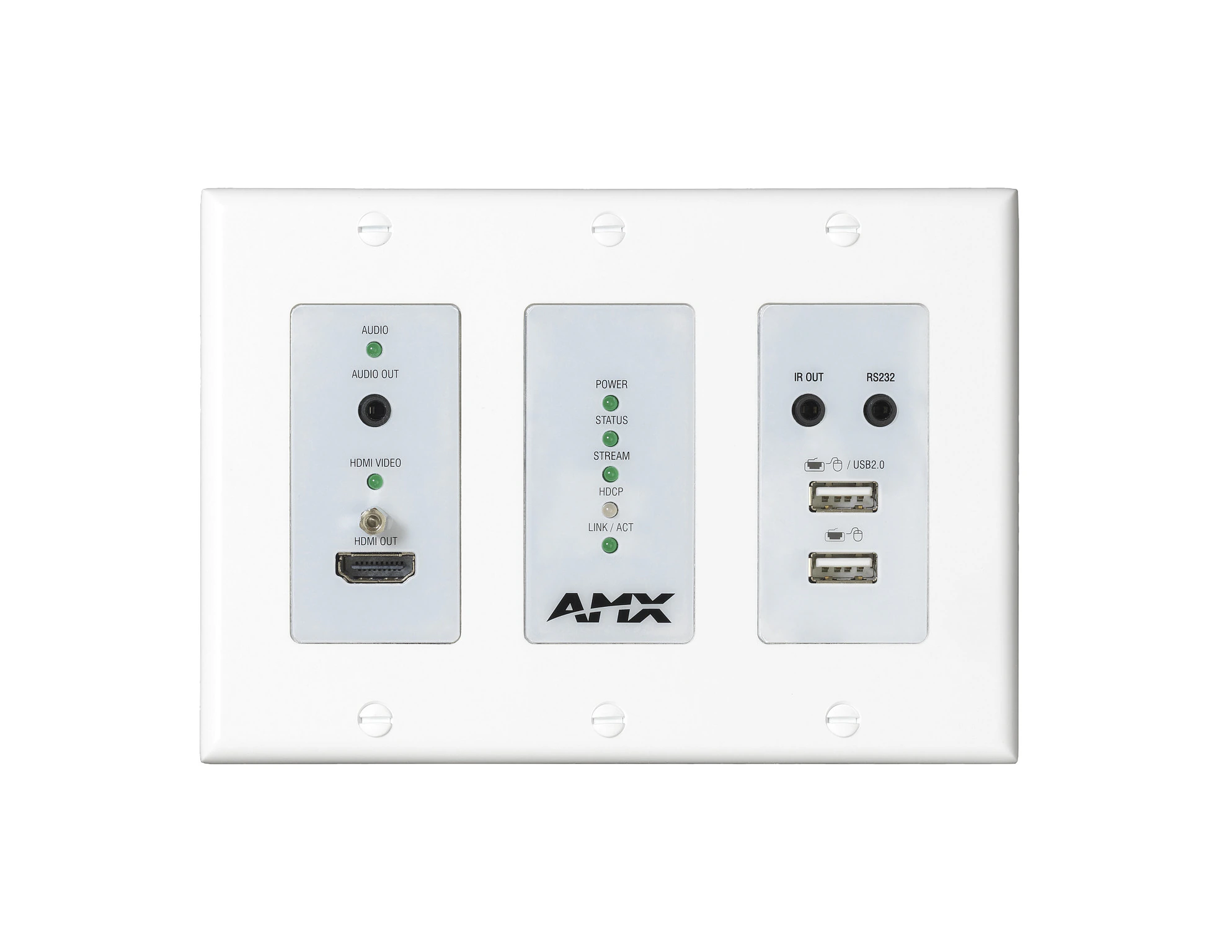

The AMX SVSI NMX-DEC-N2625-WP is a cost-effective, powerfully robust decoder wallplate. It features a high-quality, low-latency 4K60 4:4:4 MWC codec that is ideal for decoding both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.

Additional features include transport of full-bandwidth USB 2.0 signals, video preview images viewable from the built-in web interface or from a touch panel, and enhanced support for high-security networks. Decoder wallplates create an elegant and secure installation when installed behind a wall-mounted display.

These Decoder Wallplates are available in two models:

NMX-DEC-N2625-WP-NA (US Version) and NMX-DEC-N2625-WP-EK (EU/UK Version). Models include both black and white faceplate inserts and wallplate covers to ensure they blend seamlessly within modern decors.

Keterangan Lebih Lanjut

The N2600 Series is ideal for almost any streaming application but is especially applicable for colleges and universities, corporate, casinos, hospitality, government and many more. High-quality, low-latency 4K60 4:4:4 MWC streaming is perfect for transmitting both live video and detailed content within classrooms, meeting spaces, courtrooms and bars. N2600 Decoder wallplates create an elegant and secure installation when installed behind a wall-mounted display.

Unduhan

Manuals
  Versi Bahasa Ukuran Diunggah
    7,47 MB Jun 2025
en  5,41 MB Mar 2024
Brochures
  Bahasa Ukuran Diunggah
file type icon Pro Install Overview Brochure
en diperbarui: Okt 2023
en  23,1 MB Okt 2023
CAD Drawings
  Ukuran Diunggah
855 KB Feb 2023
496 KB Feb 2023
1,04 MB Feb 2023
Software
  Bahasa Ukuran Diunggah
file type icon N-Able Control Software
en diperbarui: Sep 2023
en  Sep 2023
download icon for Manager Software Manager Software
dirilis: Agu 2024

Firmware
  Versi Ukuran Diunggah
download icon for SVSI N26x5 Encoder and Decoder Firmware Updater SVSI N26x5 Encoder and Decoder Firmware Updater
versi 1.3.4, dirilis: Okt 2024
1.3.4   107 MB Okt 2024
download icon for  SVSI N26x5 Firmware SVSI N26x5 Firmware
versi 2.0.7, diperbarui: Jan 2026
2.0.7   227 MB Jan 2026
Install Guides
  Ukuran Diunggah
1,09 MB Apr 2025
Images
  Ukuran Diunggah
947 KB Des 2024
Quick Start Guides
  Bahasa Ukuran Diunggah
en  553 KB Mar 2024
Product Guides
  Versi Ukuran Diunggah
file type icon N-Series Stream Compatibility
diperbarui: Jun 2024
  431 KB Jun 2024
201 KB Okt 2025
Data Sheets
  Versi Bahasa Ukuran Diunggah
file type icon Data Sheet – NMX-DEC-N2625-WP
en versi C, diperbarui: Jan 2024
en  298 KB Jan 2024
Programming Guides
  Versi Ukuran Diunggah
file type icon Direct Control API - N26x5-WP
versi C, diperbarui: Des 2023
359 KB Des 2023
Certifications
  Bahasa Ukuran Diunggah
  243 KB Nov 2023
  235 KB Nov 2023
en  174 KB Apr 2023
Device Modules
  Ukuran Diunggah
file type icon Duet Control Module – N2625-WP
diperbarui: Nov 2023
Nov 2023

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Fitur

  • High-Quality, Low-Latency 4K60 MWC decoding
  • Video Preview viewable from the built-in web interface or from a touch panel
  • USB 2.0 Transport
  • High security network support and features, including multicast, VLAN tagging and QoS
  • PoE+ powered with low-power mode for energy savings
  • Open Direct-Control API

Spesifikasi

Video Inputs Network video over Ethernet via RJ45 port
Video Outputs HDMI
Video Resolution Support Supports most common resolutions up to 4096 x 2160 - Reference Data Sheet for Specific Resolution Support
Audio Inputs Network PCM audio over Ethernet via RJ45
Audio Outputs Embedded audio on HDMI or Analog Audio Output
Ports 3.5mm stereo audio port, HDMI Type A Socket, 3.5mm IR Out port, 3.5mm RS232 port, (2) USB Type A port, Gigabit Ethernet port with PoE support (rear),
Environmental Temperature - 32° to 104°F (0° to 40°C)
Humidity - 10% to 90% RH (non-condensing)
Heat Dissipation - Up to ~44 BTU/hr
Dimensions (H x W x D) AMX-N26E011: 4.2” x 5.2” x 2.3” (106.68mm x 132.08mm x 58.42mm)
AMX-N26E011-EK: 2.8“ x 8.3“ x 2“ (71.12mm x 210.82mm x 50.8mm)
Weight AMX-N26E011: 0.92 lbs (0.42 kg)
AMX-N26E011-EK: 0.77 lbs (0.35 kb)
FG Numbers AMX-N26D012 (NMX-DEC-N2625-NA)
AMX-N26D012-EK (NMX-DEC-N2625-EK)
