NMX-DEC-N2625-WP
Arrêté

Plaque murale décodeur MWC 4K60 (US & UK/EU)

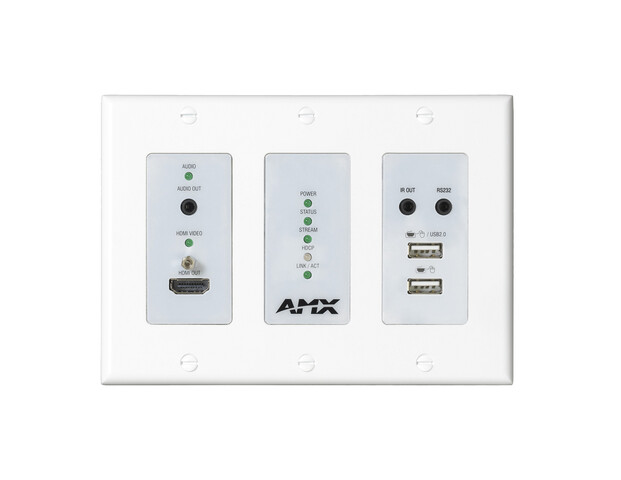

AMX_DEC_N2625_WP_NA_WHT_PlateNotIncluded_StraightFront_(1)
Grandes images

Produits de substitution


Limited Availability in China

Note: This product is no longer being offered without an enabled Dante AV license. Though the hardware is identical and both models share the same firmware, for administrative purposes, the model number has been changed to NMX-DEC-N2625D-WP. Dante AV licenses are available for purchase directly from Audinate for existing NMX-DEC-N2625-WP encoders should that be desired. For more information about the licensing process, view our help article at https://help.harmanpro.com/how-to-add-dante-license-to-n2615-n2625.

The AMX SVSI NMX-DEC-N2625-WP is a cost-effective, powerfully robust decoder wallplate. It features a high-quality, low-latency 4K60 4:4:4 MWC codec that is ideal for decoding both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.

Additional features include transport of full-bandwidth USB 2.0 signals, video preview images viewable from the built-in web interface or from a touch panel, and enhanced support for high-security networks. Decoder wallplates create an elegant and secure installation when installed behind a wall-mounted display.

These Decoder Wallplates are available in two models:

NMX-DEC-N2625-WP-NA (US Version) and NMX-DEC-N2625-WP-EK (EU/UK Version). Models include both black and white faceplate inserts and wallplate covers to ensure they blend seamlessly within modern decors.

plus de détails

The N2600 Series is ideal for almost any streaming application but is especially applicable for colleges and universities, corporate, casinos, hospitality, government and many more. High-quality, low-latency 4K60 4:4:4 MWC streaming is perfect for transmitting both live video and detailed content within classrooms, meeting spaces, courtrooms and bars. N2600 Decoder wallplates create an elegant and secure installation when installed behind a wall-mounted display.

Téléchargements

Manuals
  Version Langue Taille Téléchargé
    7,47 Mo juin 2025
file type icon Instruction Manual – AMX N2600 Series Wallplates
en version D, mis à jour : mars 2024
en  5,41 Mo mars 2024
Brochures
  Langue Taille Téléchargé
file type icon Pro Install Overview Brochure
en mis à jour : oct. 2023
en  23,1 Mo oct. 2023
CAD Drawings
  Taille Téléchargé
855 ko fév. 2023
496 ko fév. 2023
1,04 Mo fév. 2023
Software
  Langue Taille Téléchargé
file type icon N-Able Control Software
en mis à jour : sept. 2023
en  sept. 2023
download icon for Manager Software Manager Software
publié : août 2024

Firmware
  Version Taille Téléchargé
download icon for SVSI N26x5 Encoder and Decoder Firmware Updater SVSI N26x5 Encoder and Decoder Firmware Updater
version 1.3.4, publié : oct. 2024
1.3.4   107 Mo oct. 2024
download icon for  SVSI N26x5 Firmware SVSI N26x5 Firmware
version 2.0.7, mis à jour : jan. 2026
2.0.7   227 Mo jan. 2026
Install Guides
  Taille Téléchargé
1,09 Mo avr. 2025
Images
  Taille Téléchargé
947 ko déc. 2024
Quick Start Guides
  Langue Taille Téléchargé
file type icon Quick Start Guide - NMX-DEC-N2625-WP
en mis à jour : mars 2024
en  553 ko mars 2024
Product Guides
  Version Taille Téléchargé
file type icon N-Series Stream Compatibility
mis à jour : juin 2024
  431 ko juin 2024
file type icon Product Guide - N-Series Minimum Network Requirement
version D, mis à jour : oct. 2025
201 ko oct. 2025
Data Sheets
  Version Langue Taille Téléchargé
file type icon Data Sheet – NMX-DEC-N2625-WP
en version C, mis à jour : jan. 2024
en  298 ko jan. 2024
Programming Guides
  Version Taille Téléchargé
file type icon Direct Control API - N26x5-WP
version C, mis à jour : déc. 2023
359 ko déc. 2023
Certifications
  Langue Taille Téléchargé
  243 ko nov. 2023
file type icon CE Declaration of Conformity - N26x5-WP
mis à jour : nov. 2023
  235 ko nov. 2023
en  174 ko avr. 2023
Device Modules
  Taille Téléchargé
file type icon Duet Control Module – N2625-WP
mis à jour : nov. 2023
nov. 2023

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Caractéristiques

  • High-Quality, Low-Latency 4K60 MWC decoding
  • Video Preview viewable from the built-in web interface or from a touch panel
  • USB 2.0 Transport
  • High security network support and features, including multicast, VLAN tagging and QoS
  • PoE+ powered with low-power mode for energy savings
  • Open Direct-Control API

Caractéristiques techniques

Video Inputs Network video over Ethernet via RJ45 port
Video Outputs HDMI
Video Resolution Support Supports most common resolutions up to 4096 x 2160 - Reference Data Sheet for Specific Resolution Support
Audio Inputs Network PCM audio over Ethernet via RJ45
Audio Outputs Embedded audio on HDMI or Analog Audio Output
Ports 3.5mm stereo audio port, HDMI Type A Socket, 3.5mm IR Out port, 3.5mm RS232 port, (2) USB Type A port, Gigabit Ethernet port with PoE support (rear),
Environmental Temperature - 32° to 104°F (0° to 40°C)
Humidity - 10% to 90% RH (non-condensing)
Heat Dissipation - Up to ~44 BTU/hr
Dimensions (H x W x D) AMX-N26E011: 4.2” x 5.2” x 2.3” (106.68mm x 132.08mm x 58.42mm)
AMX-N26E011-EK: 2.8“ x 8.3“ x 2“ (71.12mm x 210.82mm x 50.8mm)
Weight AMX-N26E011: 0.92 lbs (0.42 kg)
AMX-N26E011-EK: 0.77 lbs (0.35 kb)
FG Numbers AMX-N26D012 (NMX-DEC-N2625-NA)
AMX-N26D012-EK (NMX-DEC-N2625-EK)
