NMX-DEC-N2625-WP
限量供应

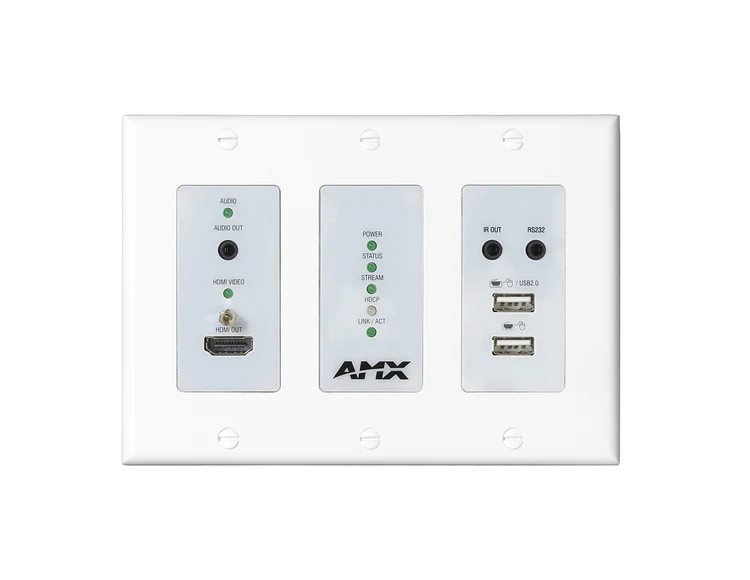

4K60 MWC Decoder Wallplate (US & UK/EU)

AMX_DEC_N2625_WP_NA_WHT_PlateNotIncluded_StraightFront_(1)
较大的图像

Limited Availability in China

Note: This product is no longer being offered without an enabled Dante AV license. Though the hardware is identical and both models share the same firmware, for administrative purposes, the model number has been changed to NMX-DEC-N2625D-WP. Dante AV licenses are available for purchase directly from Audinate for existing NMX-DEC-N2625-WP encoders should that be desired. For more information about the licensing process, view our help article at https://help.harmanpro.com/how-to-add-dante-license-to-n2615-n2625.

The AMX SVSI NMX-DEC-N2625-WP is a cost-effective, powerfully robust decoder wallplate. It features a high-quality, low-latency 4K60 4:4:4 MWC codec that is ideal for decoding both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.

Additional features include transport of full-bandwidth USB 2.0 signals, video preview images viewable from the built-in web interface or from a touch panel, and enhanced support for high-security networks. Decoder wallplates create an elegant and secure installation when installed behind a wall-mounted display.

These Decoder Wallplates are available in two models:

NMX-DEC-N2625-WP-NA (US Version) and NMX-DEC-N2625-WP-EK (EU/UK Version). Models include both black and white faceplate inserts and wallplate covers to ensure they blend seamlessly within modern decors.

更多详情

The N2600 Series is ideal for almost any streaming application but is especially applicable for colleges and universities, corporate, casinos, hospitality, government and many more. High-quality, low-latency 4K60 4:4:4 MWC streaming is perfect for transmitting both live video and detailed content within classrooms, meeting spaces, courtrooms and bars. N2600 Decoder wallplates create an elegant and secure installation when installed behind a wall-mounted display.

下载

Manuals
  版本 语言 大小 上传日期
    7.5 MB 6月 2025
en  5.4 MB 3月 2024
Brochures
  语言 大小 上传日期
file type icon Pro Install Overview Brochure
en 更新: 10月 2023
en  23.1 MB 10月 2023
CAD Drawings
  大小 上传日期
855.0 KB 2月 2023
496.1 KB 2月 2023
1.0 MB 2月 2023
Software
  语言 大小 上传日期
file type icon N-Able Control Software
en 更新: 9月 2023
en  9月 2023
download icon for Manager Software Manager Software
发布: 8月 2024

Firmware
  版本 大小 上传日期
download icon for SVSI N26x5 Encoder and Decoder Firmware Updater SVSI N26x5 Encoder and Decoder Firmware Updater
版本 1.3.4, 发布: 10月 2024
1.3.4   106.7 MB 10月 2024
download icon for  SVSI N26x5 Firmware SVSI N26x5 Firmware
版本 2.0.7, 更新: 1月 2026
2.0.7   227.0 MB 1月 2026
Install Guides
  大小 上传日期
1.1 MB 4月 2025
Images
  大小 上传日期
947.3 KB 12月 2024
Quick Start Guides
  语言 大小 上传日期
en  553.2 KB 3月 2024
Product Guides
  版本 大小 上传日期
file type icon N-Series Stream Compatibility
更新: 6月 2024
  431.3 KB 6月 2024
201.1 KB 10月 2025
Data Sheets
  版本 语言 大小 上传日期
file type icon Data Sheet – NMX-DEC-N2625-WP
en 版本 C, 更新: 1月 2024
en  297.9 KB 1月 2024
Programming Guides
  版本 大小 上传日期
file type icon Direct Control API - N26x5-WP
版本 C, 更新: 12月 2023
359.3 KB 12月 2023
Certifications
  语言 大小 上传日期
  242.8 KB 11月 2023
  235.2 KB 11月 2023
en  174.1 KB 4月 2023
Device Modules
  大小 上传日期
11月 2023

如果上述任何链接在您的浏览器中显示为奇怪的字符,请右键点击文件以将其保存到您的计算机。

特点

  • High-Quality, Low-Latency 4K60 MWC decoding
  • Video Preview viewable from the built-in web interface or from a touch panel
  • USB 2.0 Transport
  • High security network support and features, including multicast, VLAN tagging and QoS
  • PoE+ powered with low-power mode for energy savings
  • Open Direct-Control API

性能

视频输入 Network video over Ethernet via RJ45 port
视频输出 HDMI
视频分辨率支持 Supports most common resolutions up to 4096 x 2160 - Reference Data Sheet for Specific Resolution Support
输入端口 Network PCM audio over Ethernet via RJ45
输出端口 Embedded audio on HDMI or Analog Audio Output
Ports 3.5mm stereo audio port, HDMI Type A Socket, 3.5mm IR Out port, 3.5mm RS232 port, (2) USB Type A port, Gigabit Ethernet port with PoE support (rear),
环境 Temperature - 32° to 104°F (0° to 40°C)
Humidity - 10% to 90% RH (non-condensing)
Heat Dissipation - Up to ~44 BTU/hr
尺寸(高 x 宽 x 厚) AMX-N26E011: 4.2” x 5.2” x 2.3” (106.68mm x 132.08mm x 58.42mm)
AMX-N26E011-EK: 2.8“ x 8.3“ x 2“ (71.12mm x 210.82mm x 50.8mm)
重量 AMX-N26E011: 0.92 lbs (0.42 kg)
AMX-N26E011-EK: 0.77 lbs (0.35 kb)
FG Numbers AMX-N26D012 (NMX-DEC-N2625-NA)
AMX-N26D012-EK (NMX-DEC-N2625-EK)
