NMX-ENC
단종

H.264 인코더 녹음 기능

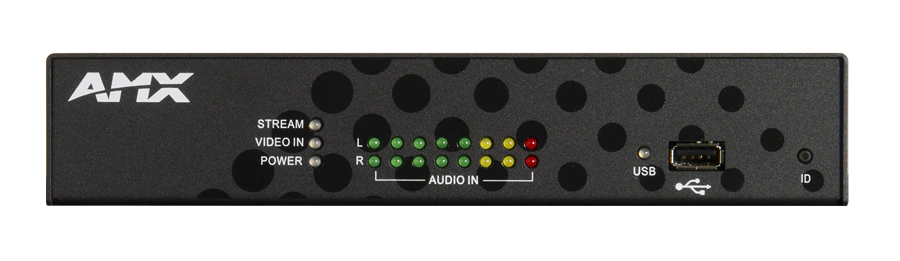

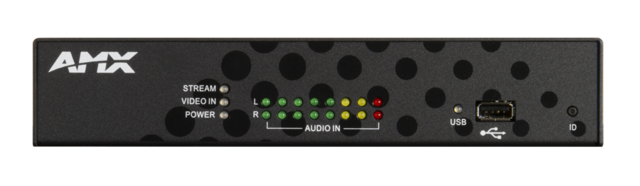

NMX-ENC-1100_Front
큰 이미지

OVERVIEW
The AMX NMX-ENC H.264 Encoder with Recording is a hardware streaming video encoding device that allows you to stream video from a source device across the network in high definition h.264 video, as well as capture that video for later viewing.

The NMX-ENC encoder connects directly to source devices such as PCs, cameras and set-top boxes and streams the video across the network in unicast or multicast. Once video is on the network, it can be played back in a variety of situations such as on displays throughout a building, in a window within a digital signage message, or using a network media solution like AMX's Vision².

As well, the NMX-ENC encoder captures live video and saves the video recording onto an attached USB hard drive. Once the recording is complete, the encoder can be configured to automatically send the video file to a selected server.

더 알아보기

  • Connect to a camera or PC to capture corporate training or lectures to make it available live as well as record it for later playback.
  • Stream live TV to a digital signage player that support streaming video, such as the AMX Inspired Signage solutions, to provide live video within a message.
  • Stream and record events such as all hands meetings, press conferences or earnings calls to a variety of audiences watching both live and time delayed throughout the world on conference room displays, PCs, or mobile phones.
  • Connect to a video camera or live production switcher to record and stream a live event at a house of worship, performance hall, or similar venue.

다운로드

문서
  크기 업로드 날짜
file type icon Data Sheet
업데이트: 2026년 4월
479KB 2026년 4월
Manuals
  크기 업로드 날짜
939KB 2020년 10월
CAD Drawings
  크기 업로드 날짜
1.62MB 2020년 10월
6.53MB 2020년 10월
201KB 2020년 10월
1.37MB 2020년 10월
5.49MB 2020년 10월
201KB 2020년 10월
Firmware
  버전 크기 업로드 날짜
download icon for NMX-ENC H.264 Encoder Firmware NMX-ENC H.264 Encoder Firmware
버전 1.6.17, 출시: 2018년 3월
1.6.17   13.7MB 2018년 3월
Certifications
  크기 업로드 날짜
393KB 2018년 4월
255KB 2018년 4월
file type icon NMX-ENC H.264 IECEE CB Test Certificate
업데이트: 2018년 4월
116KB 2018년 4월
Whitepapers
  크기 업로드 날짜
file type icon Multicast for Enterprise Video Streaming
업데이트: 2018년 4월
7.79MB 2018년 4월
Safety Sheets
  크기 업로드 날짜
85.1KB 2020년 10월
Quick Start Guides
  크기 업로드 날짜
352KB 2020년 10월
A&E (Architectural & Engineering) Specifications
  크기 업로드 날짜
file type icon A&E Spec - NMX-ENC H.264 Encoders
업데이트: 2018년 6월
58.5KB 2018년 6월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

특징

  • Multi-Format Video Input — The NMX-ENC-1100 and NMX-ENC-1105 both feature a multi-format input to support digital and analog video sources
  • USB Hard Drive Recording — Attach a USB hard drive to record video while streaming
  • Video File Forwarding — Automatically forward the video file to a selected server when the device is finished recording
  • SD-SDI and HD-SDI Support — The NMX-ENC-1105 features an SDI input for cameras and other SDI sources
  • Audio/Video Pass Through — Allows encoders to be daisy chained together for low and high bandwidth streams, or to monitor your encoded source
  • Built-in Ethernet Switch — Install an encoder along with other Ethernet-based devices such as an Enova DVX or Modero Touch Panel in a location without having to install additional Ethernet outlets
  • Audio Level Meter — The front of the encoders feature an audio level meter making it easy to validate that user audio is being picked up

사양

Dimensions (HWD) 1 5/8" x 8 3/4"x 5 1/8" (42.16 mm x 221.64 mm x 130.81 mm)
Power Consumption 13 W, (Max)
Controls NetLinx, RS-232
Multi-Format Supported Video Input Multi-Format Input Connections: (1) DVI-I, HDMI, DVI, RGB, S-Video, Composite, Component (Y/Pb/Pr). See Data Sheet for details.
Audio Pass Through Connector Type: (1) 3.5 mm Mini-Stereo Jack, Output Level (Max): 1.4 Vrms (approximately +5 dBu), unbalanced
Video Encoding Video Codec: H.264 (MPEG-4 Part 10), Maximum Streamed Resolution: 1080p30, Video Scaling: Follow input (up to 1080p30). See Data Sheet for details.
Audio Encoding Audio Codec: AAC-LC ADTS, Bit Rates: 64, 96, 128, 192 kb/s. See Data Sheet for details.
Streaming Output Formats: UDP or RTP. See Data Sheet for details.
Ethernet Output Connections: (4) RJ-45, Port 1 is designated as the uplink port, Description: 10/100 BASE-T, Network Protocols: TCP, UDP, IGMP.
FG Numbers

FG3201-01 (Multi-Format In)
FG3201-02 (Multi-Format + SDI In)
