AMX MXT-1901-PAN

큰 이미지

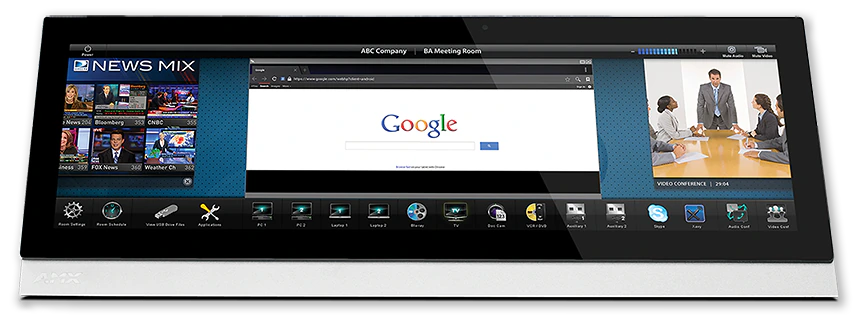

The MXT-1901-PAN / 19.4" Modero X^® Series G5 Tabletop Touch Panel is a premium user interface that includes the G5 graphics engine and delivers superior performance. Designed specifically for dedicated room control, this elegantly-styled touch panel provides fast and smooth animations and transitions, along with a quad-core processor that provides more than enough processing power to run the most demanding applications today and in the future. The MXT-1901-PAN also includes a built-in web browser and document viewers, enabling users to access real-time information during meetings or lectures.

The Modero X Series G5 Touch Panels provide several industry firsts including a beautiful, panoramic capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive, low-profile design is engineered to sit perfectly on a table without obstructing views, and comes with a variety of mounting options for added security and convenience.

더 알아보기

The MXT-1901-PAN is ideal for boardrooms, conference rooms or auditoriums where a panoramic control surface is needed to provide access to multiple functions simultaneously while remaining elegantly unobtrusive.
In Higher Education, the MXT-1901-PAN is ideal for lecture halls, auditoriums, performing arts theaters and boardrooms that require extensive control capabilities.
In residences, it is perfect for main living areas such as kitchens, living rooms, home theaters or home offices where the control surface can be used to manage systems throughout the home.

다운로드

CAD Drawings

	크기	업로드 날짜
Mounting Specification - MXD-1900L-PAN 19.4" Modero X Series Panoramic Wall Touch Panel (DXF) 업데이트: 2020년 10월	1.36MB	2020년 10월
Mounting Specification - MXD-1900L-PAN 19.4" Modero X Series Panoramic Wall Touch Panel (PDF) 업데이트: 2020년 10월	1.25MB	2020년 10월
Pictorial Drawing - MXD-1900L-PAN 19.4" Modero X Series Panoramic Wall Touch Panel (DXF) 업데이트: 2020년 10월	2.24MB	2020년 10월
Pictorial Drawing - MXD-1900L-PAN 19.4" Modero X Series Panoramic Wall Touch Panel (PDF) 업데이트: 2020년 10월	321KB	2020년 10월
Pictorial Drawing - MXT-1900L-PAN 19.4" Modero X Series Panoramic Tabletop Touch Panel (PDF) 업데이트: 2020년 10월	193KB	2020년 10월

Software

	버전	크기	업로드 날짜
TPDesign5 버전 1.5.111, 출시: 2018년 10월	1.5.111	46.1MB	2018년 10월
G5 Support Files 버전 1.5.69, 출시: 2023년 6월	1.5.69	2.47MB	2023년 6월

Firmware

	버전	크기	업로드 날짜
Modero G5 (MD & MT) Touch Panel Firmware 버전 1.8.55, 출시: 2022년 10월	1.8.55	276MB	2022년 10월

Quick Start Guides

	크기	업로드 날짜
Quick Start Guide - MXT-1901-PAN Modero X Series G5 Panoramic Tabletop Touch Panel 업데이트: 2020년 10월	164KB	2020년 10월

Whitepapers

	크기	업로드 날짜
Digital Media Capabilities of the Modero X Series Touch Panels 업데이트: 2018년 4월	1.22MB	2018년 4월

Safety Sheets

	크기	업로드 날짜
Safety Instructions - Modero X Series G5 Touch Panels 업데이트: 2020년 10월	102KB	2020년 10월

Touch Panel Files

	크기	업로드 날짜
MXT-1901-PAN G5 Landscape Demo Touch Panel File (1920x530) 업데이트: 2018년 7월	8.3MB	2018년 7월
G5 Listview Button/Dynamic Data Demos Touch Panel File 업데이트: 2018년 7월	66.2MB	2018년 7월
MXT/D-1901-PAN G5 Portrait Demo Touch Panel File (530x1920) 업데이트: 2018년 7월	3.04MB	2018년 7월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

특징

G5 Graphics Engine and Quad Core Processing – The most powerful processing in the industry delivers smooth gesturing, swiping, dynamic reordering, enhanced animation with transitions all at higher speeds for an experience any user will enjoy
Simplified Enterprise Touch Panel and Firmware Updates – Deploy and update touch panel files and firmware files from a network URL for simplified company-wide updates
Built-in Web Browser, Document Viewers and Enzo Sharing – Conveniently simplifies accessing and presenting real-time content and documents during meetings. Simply preview files accessed via the native web browser, USB, or cloud storage apps before sending content directly to Enzo. An upcoming firmware release will allow apps to be updated or disabled using the onboard G5 App Update Manager.
Multitasking with the Panoramic Control Surface – The panoramic aspect ratio of the Modero X G5 touch panels provides dedicated space to perform multiple activities at once.
Adjustable Security Modes – With the ability to select from high security or custom modes, administrators can customize the panel’s security levels for access, networking and communication.
Perfect From Any Angle – Includes In-Plane Switching (IPS), which delivers the widest viewing angles and the most accurate color reproduction on the market
View and Select Dynamic Data with Listview Buttons – Display a listing of entries generated by a dynamic data source (e.g. phonebook contacts, call logs, RSS feed or other real time data sources) enabling the user to scroll or search to make a selection. Demos are available in the UI Resource Center

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

사양

Display Size (WH)	20.4" x 6.9" (519 mm x 175 mm), 20.4" (518 mm) diagonal
Viewable Area (WH)	18.7" x 5.9" (475 mm x 151 mm), 19.4" (493 mm) diagonal
Resolution	1920x530
Viewing Angle	Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio	18:5
Touch Overlay	Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine	AMX G5
Front Panel Components	Light Sensor, Proximity Detector, Camera, LED Indicators, Sleep button. See Data Sheet for details.
Power Consumption	Full-On: 35 W (13.5 VDC, 2.9 A)
Temperature Range	Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers	FG5968-41
