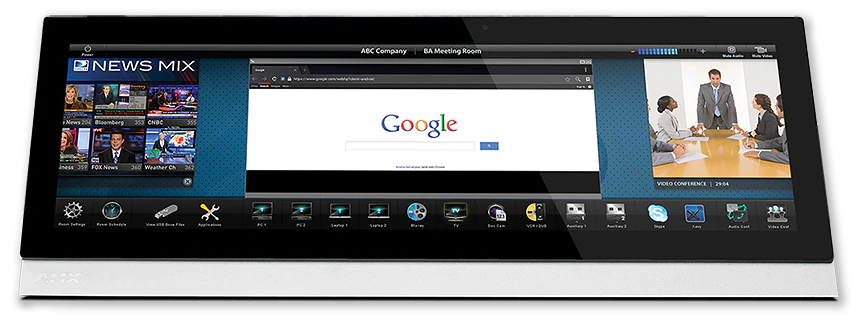

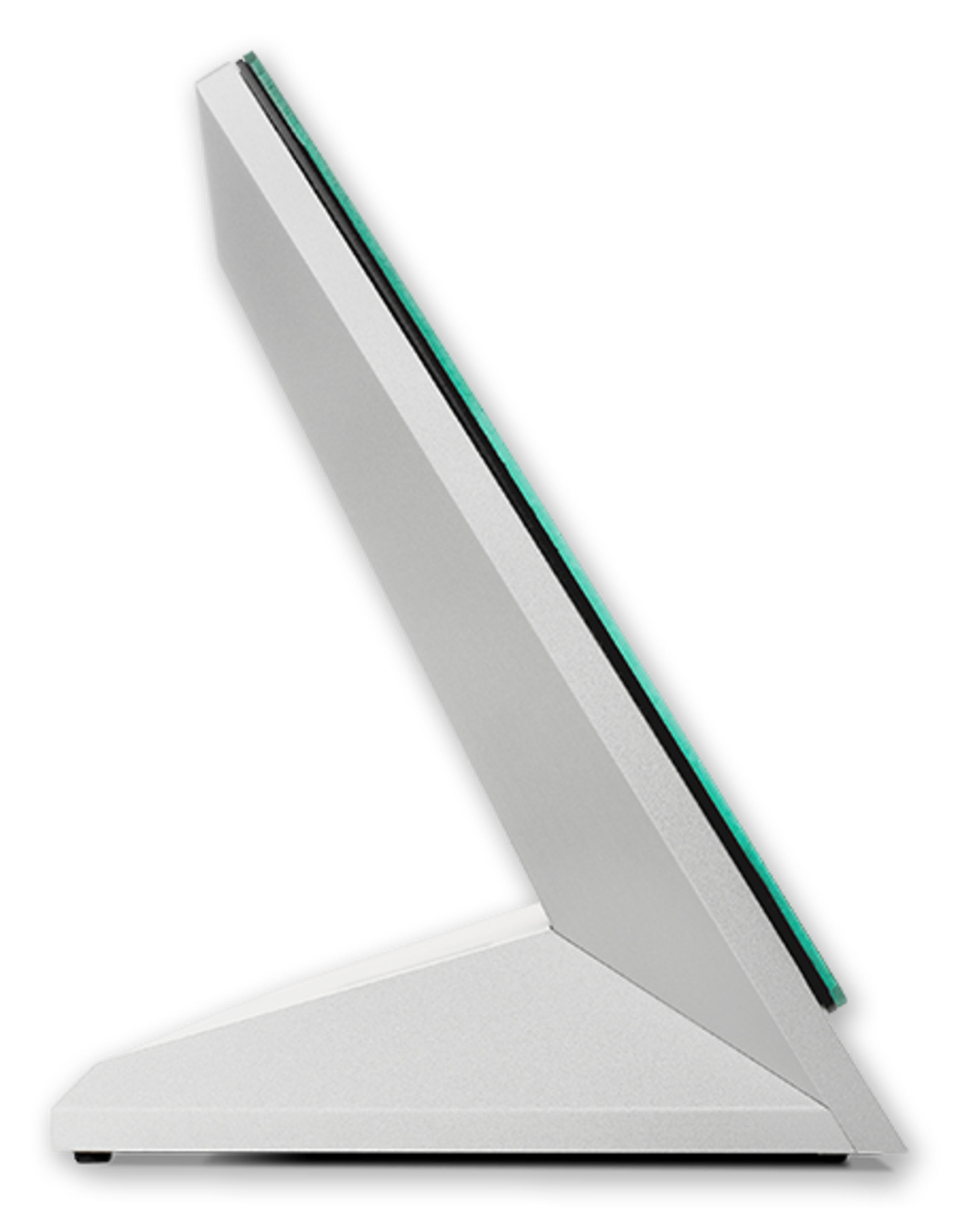

MXT-1901-PAN (discontinued)

19.4" Modero X® Series G5 Panoramic Tabletop Touch Panel

Larger Images

Replacement Products

  • MXT-2001-PAN

    20.3" Modero X® Series G5 Panoramic Tabletop Touch Panel

The MXT-1901-PAN / 19.4" Modero X® Series G5 Tabletop Touch Panel is a premium user interface that includes the G5 graphics engine and delivers superior performance. Designed specifically for dedicated room control, this elegantly-styled touch panel provides fast and smooth animations and transitions, along with a quad-core processor that provides more than enough processing power to run the most demanding applications today and in the future. The MXT-1901-PAN also includes a built-in web browser and document viewers, enabling users to access real-time information during meetings or lectures.

The Modero X Series G5 Touch Panels provide several industry firsts including a beautiful, panoramic capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive, low-profile design is engineered to sit perfectly on a table without obstructing views, and comes with a variety of mounting options for added security and convenience.

Common Applications

  • The MXT-1901-PAN is ideal for boardrooms, conference rooms or auditoriums where a panoramic control surface is needed to provide access to multiple functions simultaneously while remaining elegantly unobtrusive.
  • In Higher Education, the MXT-1901-PAN is ideal for lecture halls, auditoriums, performing arts theaters and boardrooms that require extensive control capabilities.
  • In residences, it is perfect for main living areas such as kitchens, living rooms, home theaters or home offices where the control surface can be used to manage systems throughout the home.

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 11, 2017
    270 KB Jul 11, 2017
Comparison Chart
updated: Jul 09, 2018
    173 KB Jul 09, 2018
Manuals
Installation Hardware Reference Manual - Modero X Series G5 Touch Panels
updated: Mar 29, 2018
    2.67 MB Mar 29, 2018
CAD Drawings
Mounting Specification - MXD-1900L-PAN 19.4" Modero X Series Panoramic Wall Touch Panel (DXF)
updated: Apr 02, 2018
    1.36 MB Apr 02, 2018
Mounting Specification - MXD-1900L-PAN 19.4" Modero X Series Panoramic Wall Touch Panel (PDF)
updated: Apr 02, 2018
    1.25 MB Apr 02, 2018
Pictorial Drawing - MXD-1900L-PAN 19.4" Modero X Series Panoramic Wall Touch Panel (DXF)
updated: Apr 02, 2018
    2.24 MB Apr 02, 2018
Pictorial Drawing - MXD-1900L-PAN 19.4" Modero X Series Panoramic Wall Touch Panel (PDF)
updated: Apr 02, 2018
    321 KB Apr 02, 2018
Pictorial Drawing - MXT-1900L-PAN 19.4" Modero X Series Panoramic Tabletop Touch Panel (PDF)
updated: Apr 02, 2018
    193 KB Apr 02, 2018
Software
TPDesign5
version 1.5.111, updated: Oct 31, 2018
1.5.111    46.1 MB Oct 31, 2018
Modero X Series G5 Touch Panels Firmware
version 1.7.30, updated: Mar 12, 2018
1.7.30    246 MB Mar 12, 2018
G5 Support Files
version 1.5.61, updated: Oct 31, 2018
1.5.61    1.68 MB Oct 31, 2018
Quick Start Guides
Quick Start Guide - MXT-1901-PAN Modero X Series G5 Panoramic Tabletop Touch Panel
updated: Mar 29, 2018
    164 KB Mar 29, 2018
A&E (Architectural & Engineering) Specifications
A&E Spec - Modero X Series G5 19.4" Wall/Tabletop Touch Panels
updated: Jun 28, 2018
    86 KB Jun 28, 2018
Whitepapers
AMX G5 Considerations
updated: Apr 25, 2018
    1.15 MB Apr 25, 2018
Digital Media Capabilities of the Modero X Series Touch Panels
updated: Apr 25, 2018
    1.22 MB Apr 25, 2018
AMX AV/IT Administrator's Guide
updated: Apr 25, 2018
    2.61 MB Apr 25, 2018
Application Guides
AMX and the Perfect Meeting Room
updated: Apr 12, 2018
    426 KB Apr 12, 2018
Safety Sheets
Safety Instructions - Modero X Series G5 Touch Panels
updated: Mar 29, 2018
    102 KB Mar 29, 2018
Programming Guides
Configuration and Programming Guide - Modero X Series G5 Touch Panels
updated: Mar 29, 2018
    5.26 MB Mar 29, 2018
Touch Panel Files
MXT-1901-PAN G5 Landscape Demo Touch Panel File (1920x530)
updated: Jul 18, 2018
    8.3 MB Jul 18, 2018
G5 Listview Button/Dynamic Data Demos Touch Panel File
updated: Jul 18, 2018
    66.2 MB Jul 18, 2018
MXT/D-1901-PAN G5 Portrait Demo Touch Panel File (530x1920)
updated: Jul 18, 2018
    3.04 MB Jul 18, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • G5 Graphics Engine and Quad Core Processing – The most powerful processing in the industry delivers smooth gesturing, swiping, dynamic reordering, enhanced animation with transitions all at higher speeds for an experience any user will enjoy
  • Simplified Enterprise Touch Panel and Firmware Updates – Deploy and update touch panel files and firmware files from a network URL for simplified company-wide updates
  • Built-in Web Browser, Document Viewers and Enzo Sharing – Conveniently simplifies accessing and presenting real-time content and documents during meetings. Simply preview files accessed via the native web browser, USB, or cloud storage apps before sending content directly to Enzo. An upcoming firmware release will allow apps to be updated or disabled using the onboard G5 App Update Manager.
  • Multitasking with the Panoramic Control Surface – The panoramic aspect ratio of the Modero X G5 touch panels provides dedicated space to perform multiple activities at once.
  • Adjustable Security Modes – With the ability to select from high security or custom modes, administrators can customize the panel’s security levels for access, networking and communication.
  • Perfect From Any Angle – Includes In-Plane Switching (IPS), which delivers the widest viewing angles and the most accurate color reproduction on the market
  • View and Select Dynamic Data with Listview Buttons – Display a listing of entries generated by a dynamic data source (e.g. phonebook contacts, call logs, RSS feed or other real time data sources) enabling the user to scroll or search to make a selection. Demos are available in the UI Resource Center

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Specifications

Display Size (WH) 20.4" x 6.9" (519 mm x 175 mm), 20.4" (518 mm) diagonal
Viewable Area (WH) 18.7" x 5.9" (475 mm x 151 mm), 19.4" (493 mm) diagonal
Resolution 1920x530
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio 18:5
Touch Overlay Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine AMX G5
Front Panel Components Light Sensor, Proximity Detector, Camera, LED Indicators, Sleep button. See Data Sheet for details.
Power Consumption Full-On: 35 W (13.5 VDC, 2.9 A)
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers FG5968-41
