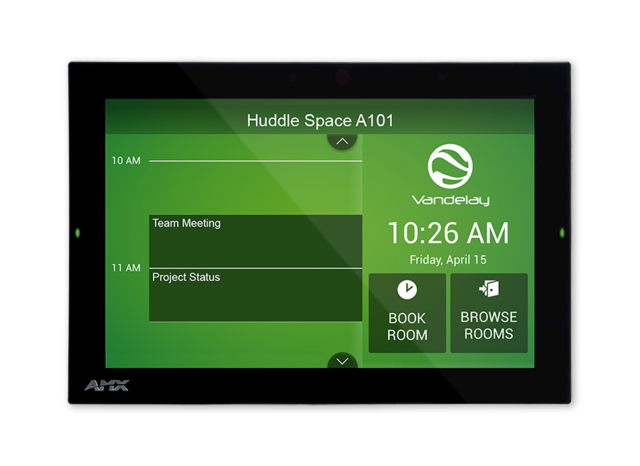

10.1”Acendo Book 调度触控面板

Acb 2110 vert medium

Acendo Book 10.1" 触控面板是一款独立调度面板,可与 Microsoft Exchange、Office 365 和 Google Calendar 等常用房间调度软件直接集成,无需使用其他系统硬件。用户界面背景色和内置房间可用性显示条以红绿两种颜色切换显示房间可用性,方便用户直接通过面板定位和预订可用房间;若房间已被预订,用户可轻松迅速确定距离最近的可用房间或下一次可用时间。

ACB-2110 借鉴了我们屡获殊荣的 Modero S 系列触控面板的风格和成本效益,采用卓越的全彩高分辨率显示器 SmoothTouch™、画面宽视角和可用性显示条 LED,低调设计营造出精妙的审美效果。ACB-2110 可安装在会议室或教室内外任何平整表面上(包括玻璃或石头)。

基于面板的一条龙配置向导使 ACB-2110 易于安装,只需极少量培训便可在数分钟内掌握面板的操作方法。




  • Standalone Scheduling Panel that's Quick and Easy to Install – Reduces cost by streamlining installation, simplifying configuration, and eliminating the need for a controller and monitoring software
  • Directly Integrates with Microsoft Exchange, Office 365 and Google Calendar – Synchronizes with the most popular scheduling platforms without additional software or configuration complications
  • Based on Modero S Hardware – Provides all the benefits of our most popular Modero S Scheduling Panels including award-winning industrial design, SmoothTouch™ Technology, and brilliant full-color display
  • On-Panel Room Booking – Quickly book available rooms directly from the panel
  • Diverse Mounting Options – Mount the panel virtually anywhere, including glass
  • Available Room Locator – Panel will suggest other currently available rooms at the push of a button
  • Availability Indicators on the Front and Sides of the Panel – 180 degree Visibility allows users to easily determine whether the room is currently available



Display Size (WH) 9.1" x 5.9" (230 mm x 149 mm), 10.8" (274 mm) diagonal
Viewable Area (WH) 8.5" x 5.4" (217 mm x 136 mm ), 10.0" (256 mm) diagonal
Resolution 1280x800
Viewing Angle Vertical: ± 85°, Horizontal: ± 85°
Aspect Ratio 16:9
Touch Overlay Resistive
Front Panel Components Sleep Button, Programmable Red/Green LEDs. See Data Sheet for details.


Full-On: 14.5 W (max)
