AMX CB-MXSA-07

较大的图像

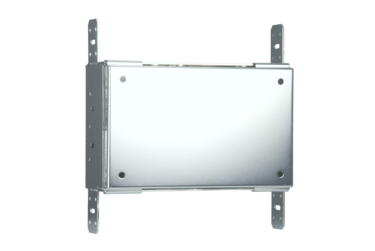

布线盒是 Modero X 和 S 系列 7" 壁挂式触控面板的可选配件，适用于 Modero X G5（FG5968-54 和 FG5968-55）、Modero X（FG5968-08 和 FG5968-14）、Modero S (FG2265-02) 和 Acendo Book (FG4221-10)。利用此配件可将面板直接安装到螺柱/前壁上，并且随附了一个壁盒和安装螺丝。

下载

	Version	Language	Size	Uploaded
Manuals
Quick Start Guide - CB-MXSA-07 Rough-In Box and Cover Plate for Modero X/S Series 7" and RoomBook Panel	G		7.2 MB	7月10日
CAD Drawings
Pictorial Drawing - CB-MXP7/CB-MXSA-07 Rough-In Box and Cover Plate for the 7" Wall Mount Modero X/S Series Touch Panels (PDF)			238.3 KB	7月10日
Pictorial Drawing - CB-MXP7/CB-MXSA-07 Rough-In Box and Cover Plate for the 7" Wall Mount Modero X/S Series Touch Panels (DXF 1 of 2)			1.4 MB	7月10日
Pictorial Drawing - CB-MXP7/CB-MXSA-07 Rough-In Box and Cover Plate for the 7" Wall Mount Modero X/S Series Touch Panels (DXF 2 of 2)			7.2 MB	7月10日
Pictorial Drawing - CB-MXP7/CB-MXSA-07 Rough-In Box and Cover Plate for the 7" Wall Mount Modero X/S Series Touch Panels (DWG 1 of 2)			401.6 KB	7月10日
Pictorial Drawing - CB-MXP7/CB-MXSA-07 Rough-In Box and Cover Plate for the 7" Wall Mount Modero X/S Series Touch Panels (DWG 2 of 2)			1.9 MB	7月10日
Spec. Drawing - Mounting Spec, CB-MXSA-07 Rough-In Box for the 7" Wall Mount Modero X/S Series and RoomBook Panels (PDF)			183.6 KB	7月10日
Bim Objects
CB-MXSA-07 - BIM Object				8月12日
Whitepapers
AMX AV/IT Administrator's Guide			2.6 MB	4月25日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

DIMENSIONS FOR ROUGH-IN BOX (HWD)	4 3/8" x 6 7/8" x 2 3/8" (17.3 cm x 11.0 cm x 6.0 cm)
DIMENSIONS FOR ROUGH-IN BOX COVER PLATE (HWD)	TBD
随附配件	Cover Plate for Rough-in Box Back Box to Rough-In Box Mounting Screws (4) (80-5967-03) Cover Plate to Rough-In Box Mounting Screws (4) (80-5967-03)
认证	cTUVus, UL
FG Numbers	FG039-18

CB-MXSA-07
