CB-MXSA-07

Rough-In Box and Cover Plate for the 7" Wall Mount Modero X® Modero S Touch Panels and Acendo Book Scheduling Panel

Larger Images

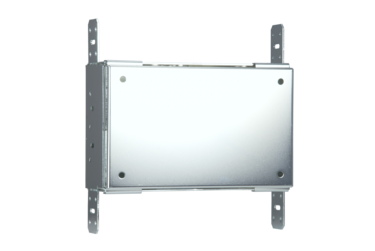

The Rough-In Box is an optional accessory for Modero X and S Series 7" Wall Mount Touch Panels including Modero X G5 (FG5968-54 and FG5968-55), Modero X (FG5968-08 and FG5968-14), Modero S (FG2265-02) and Acendo Book (FG4221-10). It allows the panel to be mounted directly to the studs/pre-wall and includes a wall box and mounting screws.

Downloads

  Version Language Size Uploaded
Manuals
Quick Start Guide - CB-MXSA-07 Rough-In Box and Cover Plate for Modero X/S Series 7" and RoomBook Panel
version G, updated: Jul 10, 2018
  7.24 MB Jul 10, 2018
CAD Drawings
Pictorial Drawing - CB-MXP7/CB-MXSA-07 Rough-In Box and Cover Plate for the 7" Wall Mount Modero X/S Series Touch Panels (PDF)
updated: Jul 10, 2018
    238 KB Jul 10, 2018
Pictorial Drawing - CB-MXP7/CB-MXSA-07 Rough-In Box and Cover Plate for the 7" Wall Mount Modero X/S Series Touch Panels (DXF 1 of 2)
updated: Jul 10, 2018
    1.38 MB Jul 10, 2018
Pictorial Drawing - CB-MXP7/CB-MXSA-07 Rough-In Box and Cover Plate for the 7" Wall Mount Modero X/S Series Touch Panels (DXF 2 of 2)
updated: Jul 10, 2018
    7.21 MB Jul 10, 2018
Pictorial Drawing - CB-MXP7/CB-MXSA-07 Rough-In Box and Cover Plate for the 7" Wall Mount Modero X/S Series Touch Panels (DWG 1 of 2)
updated: Jul 10, 2018
    402 KB Jul 10, 2018
Pictorial Drawing - CB-MXP7/CB-MXSA-07 Rough-In Box and Cover Plate for the 7" Wall Mount Modero X/S Series Touch Panels (DWG 2 of 2)
updated: Jul 10, 2018
    1.89 MB Jul 10, 2018
Spec. Drawing - Mounting Spec, CB-MXSA-07 Rough-In Box for the 7" Wall Mount Modero X/S Series and RoomBook Panels (PDF)
updated: Jul 10, 2018
    184 KB Jul 10, 2018
Bim Objects
CB-MXSA-07 - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Whitepapers
AMX AV/IT Administrator's Guide
updated: Apr 25, 2018
    2.61 MB Apr 25, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

DIMENSIONS FOR ROUGH-IN BOX (HWD) 4 3/8" x 6 7/8" x 2 3/8" (17.3 cm x 11.0 cm x 6.0 cm)
DIMENSIONS FOR ROUGH-IN BOX COVER PLATE (HWD) TBD
Included Accessories
  • Cover Plate for Rough-in Box
  • Back Box to Rough-In Box Mounting Screws (4) (80-5967-03)
  • Cover Plate to Rough-In Box Mounting Screws (4) (80-5967-03)
Certification cTUVus, UL
FG Numbers FG039-18

CB-MXSA-07
