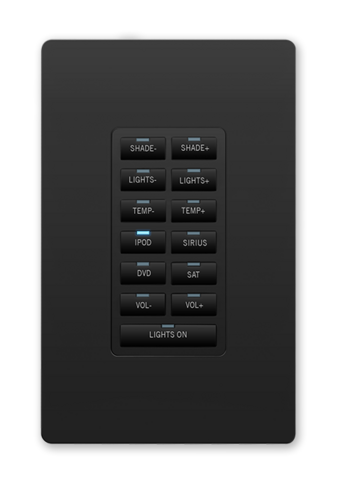

MET-13X (停产)

 Metreau® 13 按键以太网扩展键盘

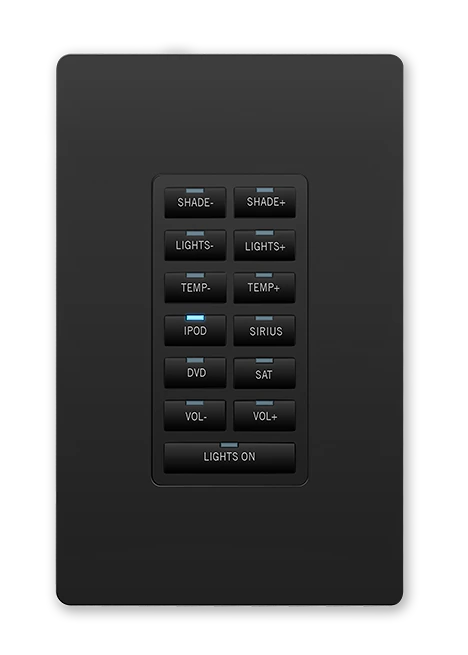

较大的图像

MET-13X Metreau 13 按钮扩展键盘通过带状电缆连接任何相邻的 Metreau 以太网键盘(MET-6NE、MET-7E 或 MET-13E),以便在相同位置添加辅助控制点。

更多详情

非常适用于需要多个相邻控制点的教室、会议室、住宅或酒店。

下载

  Version Language Size Uploaded
file type icon Data Sheet
updated: 5月 2023
    299.1 KB 5月 2023
Manuals
file type icon Instruction Manual - Metreau Keypads
updated: 3月 2018
    2.6 MB 3月 2018
CAD Drawings
file type icon Pictorial Drawing - MET-13X 13-Button Ethernet Expansion Keypad (PDF)
updated: 10月 2020
    156.8 KB 10月 2020
file type icon Pictorial Drawing - MET-13X 13-Button Ethernet Expansion Keypad (DXF)
updated: 10月 2020
    1.9 MB 10月 2020
file type icon Pictorial Drawing - MET-13X 13-Button Ethernet Expansion Keypad (DWG)
updated: 10月 2020
    504.7 KB 10月 2020
BIM Objects
file type icon MET-13X - BIM Object
updated: 8月 2019
    8月 2019
Firmware
platform icon Keypads with Ethernet Firmware
version 1.2.33, updated: 6月 2020
1.2.33     300.0 KB 6月 2020
Quick Start Guides
file type icon Quick Start Guide - MET-13X Metreau 13-Button Expansion Ethernet Keypad
updated: 3月 2018
    163.8 KB 3月 2018
Safety Sheets
file type icon Safety Instructions - Metreau Keypads
updated: 3月 2018
    80.8 KB 3月 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: 10月 2020
    2.6 MB 10月 2020
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - MET-13X Metreau 13-Button Ethernet Expansion Keypad
updated: 6月 2018
    54.5 KB 6月 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • 连接简便 - 一个 IP 地址最多连接三个键盘,以优化房间网络设计
  • 兼容以太网供电 (PoE) - 扩展键盘由其所连接的 Metreau 以太网键盘通过带状电缆供电(选项包括 MET-6NE、MET-7E 和 MET-13E)



注:未包含键盘壁板。参见 ALD-CW-1、ALD-CW-2 和 ALD-CW-3。

性能

尺寸(高宽厚) 键盘和安装板:4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm)
装配 装入标准的装饰风格墙板
前面板组件 按钮提供各种可现场更换的预印按钮,带有蓝色 LED 指示灯
后面板组件 (2) 8 针,0.100” (2.54 mm) IDC 型公插头
电源 通过带状电缆与 Metreau 以太网键盘(选件包括 MET-6NE,MET-7E 和 MET-13E)连接以为扩展键盘供电。详情请参阅数据表。
FG Numbers

FG5793-12-WH (White)
FG5793-12-BL (Black)
