MET-13X (discontinued)

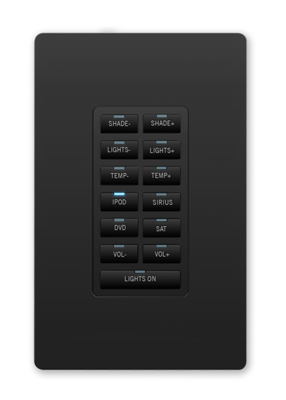

Metreau® 13-Button Ethernet Expansion Keypad

Larger Images

The MET-13X Metreau 13-Button Expansion Keypad connects to any adjacent Metreau Ethernet Keypad (MET-6NE, MET-7E or MET-13E) via ribbon cable to add additional control points in the same location.

Common Applications

Ideal for classrooms, conference rooms, residences or hotels that require multiple adjacent control points.

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Apr 20, 2021
    299 KB Apr 20, 2021
Manuals
Instruction Manual - Metreau Keypads
updated: Mar 28, 2018
    2.57 MB Mar 28, 2018
CAD Drawings
Pictorial Drawing - MET-13X 13-Button Ethernet Expansion Keypad (PDF)
updated: Oct 22, 2020
    157 KB Oct 22, 2020
Pictorial Drawing - MET-13X 13-Button Ethernet Expansion Keypad (DXF)
updated: Oct 22, 2020
    1.89 MB Oct 22, 2020
Pictorial Drawing - MET-13X 13-Button Ethernet Expansion Keypad (DWG)
updated: Oct 22, 2020
    505 KB Oct 22, 2020
Bim Objects
MET-13X - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Firmware
Keypads with Ethernet Firmware
version 1.2.33, updated: Jun 18, 2020
1.2.33     300 KB Jun 18, 2020
Quick Start Guides
Quick Start Guide - MET-13X Metreau 13-Button Expansion Ethernet Keypad
updated: Mar 28, 2018
    164 KB Mar 28, 2018
Safety Sheets
Safety Instructions - Metreau Keypads
updated: Mar 29, 2018
    80.8 KB Mar 29, 2018
Whitepapers
AMX AV/IT Administrator's Guide
updated: Oct 23, 2020
    2.61 MB Oct 23, 2020
A&E (Architectural & Engineering) Specifications
A&E Spec - MET-13X Metreau 13-Button Ethernet Expansion Keypad
updated: Jun 28, 2018
    54.5 KB Jun 28, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Simple Connection – Connect up to three keypads with one IP address to optimize the room’s network design
  • Power Over Ethernet (PoE) Compatible – The Expansion Keypad receives power from the Metreau Ethernet Keypad it is connected to (options include MET-6NE, MET-7E and MET-13E) via the ribbon cable



NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2, ALD-CW-3.

Specifications

Dimensions (HWD) Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm)
Mounting Mounts into standard decor-style wallplates
Front Panel Components Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators
Rear Panel Components (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
Power The Expansion Keypad receives power from the Metreau Ethernet Keypad it is connected to (options include MET-6NE, MET-7E and MET-13E) via the ribbon cable. See Data Sheet for details.
FG Numbers

FG5793-12-WH (White)
FG5793-12-BL (Black)
