MET-13X (discontinued)

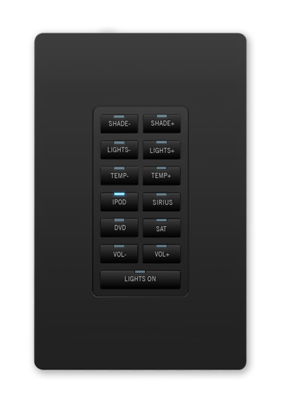

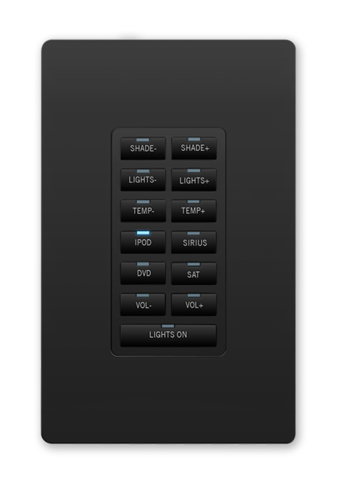

Metreau® 13-Button Ethernet Expansion Keypad

MET-13X
Larger Images

The MET-13X Metreau 13-Button Expansion Keypad connects to any adjacent Metreau Ethernet Keypad (MET-6NE, MET-7E or MET-13E) via ribbon cable to add additional control points in the same location.

Common Applications

Ideal for classrooms, conference rooms, residences or hotels that require multiple adjacent control points.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    299 KB Mar 2024
Manuals
file type icon Instruction Manual - Metreau Keypads
updated: Mar 2018
    2.57 MB Mar 2018
CAD Drawings
file type icon Pictorial Drawing - MET-13X 13-Button Ethernet Expansion Keypad (PDF)
updated: Oct 2020
    157 KB Oct 2020
file type icon Pictorial Drawing - MET-13X 13-Button Ethernet Expansion Keypad (DXF)
updated: Oct 2020
    1.89 MB Oct 2020
file type icon Pictorial Drawing - MET-13X 13-Button Ethernet Expansion Keypad (DWG)
updated: Oct 2020
    505 KB Oct 2020
Bim Objects
file type icon MET-13X - BIM Object
updated: Aug 2019
    Aug 2019
Firmware
platform icon Keypads with Ethernet Firmware
version 1.2.33, updated: Jun 2020
1.2.33     300 KB Jun 2020
Quick Start Guides
file type icon Quick Start Guide - MET-13X Metreau 13-Button Expansion Ethernet Keypad
updated: Mar 2018
    164 KB Mar 2018
Safety Sheets
file type icon Safety Instructions - Metreau Keypads
updated: Mar 2018
    80.8 KB Mar 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: Oct 2020
    2.61 MB Oct 2020
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - MET-13X Metreau 13-Button Ethernet Expansion Keypad
updated: Jun 2018
    54.5 KB Jun 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Simple Connection – Connect up to three keypads with one IP address to optimize the room’s network design
  • Power Over Ethernet (PoE) Compatible – The Expansion Keypad receives power from the Metreau Ethernet Keypad it is connected to (options include MET-6NE, MET-7E and MET-13E) via the ribbon cable



NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2, ALD-CW-3.

Specifications

Dimensions (HWD) Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm)
Mounting Mounts into standard decor-style wallplates
Front Panel Components Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators
Rear Panel Components (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
Power The Expansion Keypad receives power from the Metreau Ethernet Keypad it is connected to (options include MET-6NE, MET-7E and MET-13E) via the ribbon cable. See Data Sheet for details.
FG Numbers

FG5793-12-WH (White)
FG5793-12-BL (Black)
