Solecis SDX adalah keluarga switcher AV digital berukuran kecil. Solecis 5x1 4K Multi-Format merupakan solusi yang mendukung 4K dan Ultra High Definition (UHD), menyediakan lima titik koneksi pengguna serta dilengkapi kontrol lokal yang disederhanakan untuk merutekan sinyal terpilih ke output DXLink sekaligus HDMI. Solusi ini menawarkan biaya rendah dengan menggabungkan DXLink Transmitter dan switcher digital ke dalam satu perangkat berukuran ringkas yang umumnya digunakan di atas meja.
Gambar Lebih Besar
Keterangan Lebih Lanjut
Solecis Digital Switchers ideal untuk digunakan di ruang huddle atau ruang kelas kecil guna menyediakan pengalihan sederhana untuk berbagai sumber. Di ruangan yang lebih besar dengan berbagai ruang kerja, Solecis di setiap meja atau desk memungkinkan pengguna berbagi konten dengan kelompok kerja atau seluruh ruangan. Di lingkungan terintegrasi yang lebih besar lagi, Solecis digital switchers dapat menyediakan pengalihan sumber yang mudah digunakan dan transmisi jarak jauh melalui DXLink ke Enova DVX atau DGX untuk distribusi gaya hub di seluruh gedung atau kampus.
Unduhan
Dokumen
| Ukuran | |
Data Sheet
diperbarui: Apr 2026
|
383 KB |
Manuals
| Ukuran | |
|
|
1,2 MB |
CAD Drawings
| Ukuran | |
| 788 KB | |
| 2,63 MB | |
| 215 KB |
BIM Objects
| Ukuran | |
|
|
Firmware
| Ukuran | |
|
|
640 KB |
Quick Start Guides
| Ukuran | |
|
|
138 KB |
Whitepapers
| Ukuran | |
|
|
484 KB |
|
|
1,6 MB |
Safety Sheets
| Ukuran | |
|
|
83,9 KB |
Product Guides
| Ukuran | |
|
|
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
Fitur
- 4K and Ultra High Definition (UHD) Support – Experience high-quality video resolution for 4K devices
- Multiple Video, Audio and Ethernet Connections – All the connections you need at the conference table including audio, video, control and network access
- Switch Inputs Without the Need for a Central Controller – Provides low cost solution for huddle spaces and classrooms
- Works with HydraPort Single Button or Keypad Modules – Provides an elegant installation in a table or lectern
- Built-in Support for AxLink Keypads – Forwards keypad commands to a central controller over Ethernet eliminating the need for a separate AxLink cable run
Spesifikasi
| Audio Video Switching | 5x1 (dual) audio/video switching, any of 5 inputs can be routed to the HDMI and DXLink output simultaneously |
| Video Inputs | (2) HD15; supports RGBHV, (3) HDMI; supports HDMI/HDCP |
| Video Outputs | (1) HDMI; supports HDMI/HDCP, (1) DXLink; supports digital video, audio, Ethernet, and bi-directional control |
| 4K Resolution Support | 3840 x 2160p @ 24/25/30 Hz, 4096 x 2160p @ 24/25/30 Hz, 3840 x 2160p @ 60 Hz, 4:2:0, 4096 x 2160p @ 60 Hz, 4:2:0 |
| Audio Format Support | Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM; Dolby Digital and DTS support up to 48kHz, 5.1 channels |
| Audio Inputs | (4) HDMI connections support digital audio |
| AxLink Keypad Port | (1), 4-pin 3.5 mm captive-wire connector, provides data and power to up to 2 external AxLink Keypads |
| Ethernet Connections | (3) RJ-45, 10/100 Port provides TCP/IP communication; an Auto MDI/MDI-X enabled port which allows use of either straight-through or crossover Ethernet cables. The Ethernet Port LEDs show communication activity, connection status, speeds and mode info |
| Dimensions | 1 11/16" x 10" x 7" (42.16 mm x 253.8 mm x 177.8 mm) |
| Compatible AMX Enova DVX/DGX and DXLink Products | Enova DGX 800/1600/3200/6400 Digital Media Switchers with DGX-I-DXL-4K DGX DXLink Twisted Pair 4K Input Board installed, DX-RX-4K, DXLink 4K HDMI Receiver Module as a point-to-point solution |
| MyTurn Source Selection | Use in conjunction with MyTurn Source Selector Buttons installed onto HDMI/VGA cables at a source device and a MyTurn Source Selector Receiver that triggers switching. A HydraPort 2-Button Keypad Module can trigger a switch for multiple connections. |
| FG Numbers | FG1010-355 |
recommended_accessories
-
PSR5.4
12 VDC, 5.4 A Power Supply with 3.5 mm Phoenix Connector with Retention Screws -
AVB-VSTYLE-SURFACE-MNT
V Style Single Module Surface Mount Brackets -
NMX-VRK
V Style Rack Mounting Shelf, 12" Depth
Dukungan KonsultanNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
SDX-514M-DX
Ketersediaan terbatas

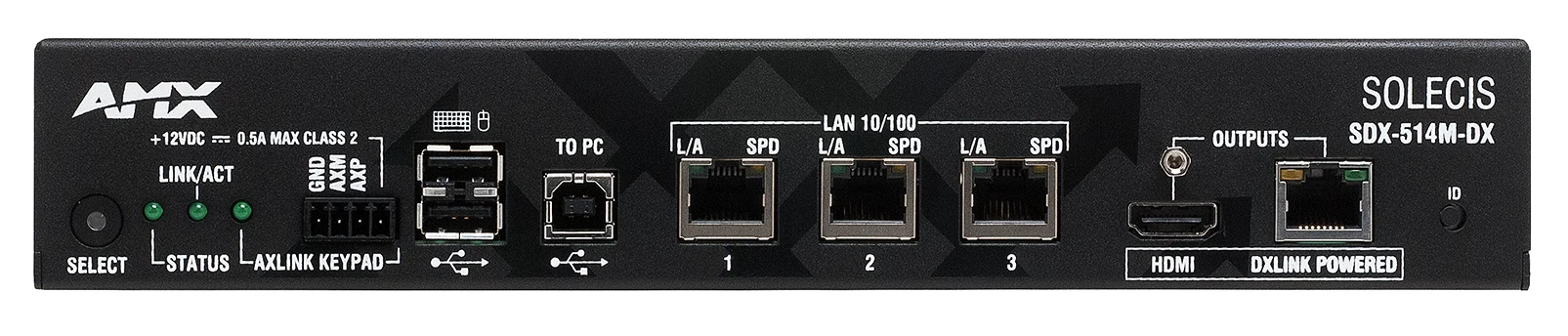

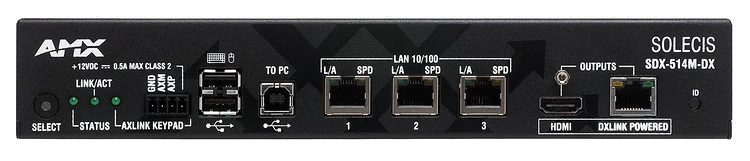

Solecis® 5x1 4K Multi-Format Digital Switcher with DXLink™ Output
