ACB-2107
Tidak diproduksi

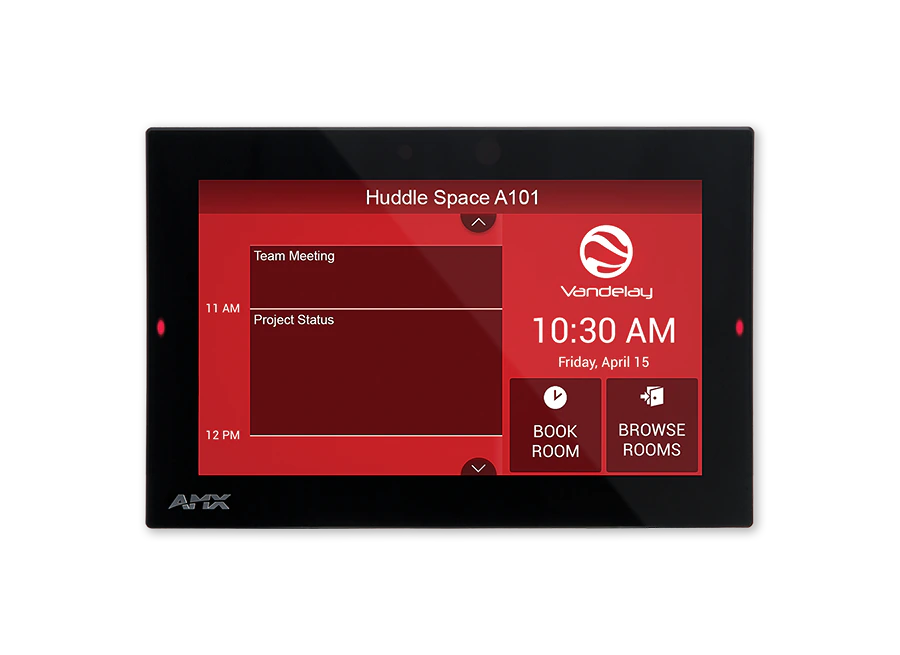

7” Acendo Book Scheduling Touch Panel

ACB-2107
Gambar Lebih Besar

Produk Pengganti

  • MSA-AMK2-07

    MSA-AMK2-07

    Kit Pemasangan Apa pun untuk Panel Sentuh Dinding Seri Modero 7"
  • MSA-MMK2-07

    MSA-MMK2-07

    Perangkat Multi Mount Kit untuk Panel Sentuh Dinding Seri Modero 7"
  • PS-POE-AF-TC

    PS-POE-AF-TC

    Injector PoE, Sesuai dengan 802.3AF
  • CB-MXSA-07

    CB-MXSA-07

    Kotak Instalasi & Plat Penutup untuk Panel Sentuh Dinding Modero Series 7"
  • MSA-RMK-07

    MSA-RMK-07

    Kit Pemasangan Rak untuk Panel Sentuh Dinding Seri Modero 7"
  • MXA-CLK

    MXA-CLK

    Modero X® dan Kit Pembersih Layar Seri Modero S

This product is discontinued with a projected last order date of December 31, 2018.
The suggested alternative is MD-702 Acendo Book.

The Acendo Book 7" Touch Panel is a standalone scheduling panel that integrates directly with popular room scheduling software like Microsoft Exchange, Office 365, and Google Calendar without additional system hardware requirements. The user interface background color and built-in room availability bars change between red and green to show room availability so users can easily locate and book an available room directly from the panel and, if that room is currently booked, users can quickly locate the nearest available room or the next available time with ease.

Leveraging the style and cost-efficiency of our award winning Modero S Series Touch Panel, ACB-2107 includes SmoothTouch™ Technology, a brilliant full-color high-resolution display, wide viewing angle of screen and availability bar LEDs, and a low profile design for a subtle aesthetic. The ACB-2107 can be mounted on any flat surface, including glass or stone, inside or outside a conference room or classroom.

ACB-2107 is easy to install using a one-time, panel-based configuration wizard, to get the panel operational in a matter of minutes with minimal training.

Keterangan Lebih Lanjut

Ideal for small/medium businesses wishing to optimize room utilization by implementing facility-wide room scheduling on a budget

Video





Unduhan

Dokumen
  Ukuran Diunggah
file type icon Data Sheet
diperbarui: Apr 2026
292 KB Apr 2026
Manuals
  Ukuran Diunggah
3,91 MB Jul 2018
CAD Drawings
  Ukuran Diunggah
108 KB Apr 2018
1,16 MB Apr 2018
Firmware
  Versi Ukuran Diunggah
1.1.22   159 MB Agu 2018
1.3.49   171 MB Okt 2019
Quick Start Guides
  Ukuran Diunggah
238 KB Okt 2020
Safety Sheets
  Ukuran Diunggah
5,15 MB Okt 2020
Certifications
  Ukuran Diunggah
120 KB Apr 2018
50,3 KB Apr 2018
108 KB Apr 2018

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Fitur

  • Standalone Scheduling Panel that's Quick and Easy to Install – Reduces cost by streamlining installation, simplifying configuration, and eliminating the need for a controller and monitoring software
  • Directly Integrates with Microsoft Exchange, Office 365 and Google Calendar – Synchronizes with the most popular scheduling platforms without additional software or configuration complications
  • Based on Modero S Hardware – Provides all the benefits of our most popular Modero S Scheduling Panels including award-winning industrial design, SmoothTouch™ Technology, and brilliant full-color display
  • On-Panel Room Booking – Quickly book available rooms directly from the panel
  • Diverse Mounting Options – Mount the panel virtually anywhere, including glass
  • Available Room Locator – Panel will suggest other currently available rooms at the push of a button
  • Availability Indicators on the Front and Sides of the Panel – 180 degree Visibility allows users to easily determine whether the room is currently available

Spesifikasi

Display Size (WH) Landscape: 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal
Viewable Area (WH) Landscape: 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal
Resolution 1024x600
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio 16:9
Touch Overlay Resistive
Front Panel Components Sleep Button, Programmable Red/Green LEDs. See Data Sheet for details.
Power Consumption Full-On: 11 W maximum
FG Numbers FG4221-07
