MD-702 Acendo Book

AMX Acendo Book 7” Scheduling Touch Panel

Larger Images

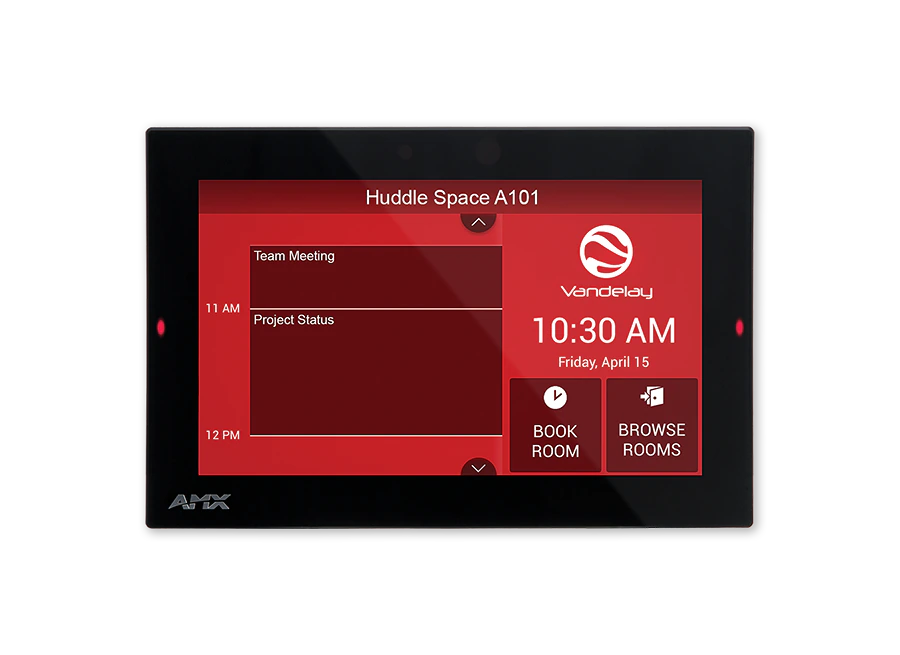

The second-generation Acendo Book 7" Touch Panel is a scheduling panel that integrates with popular room scheduling software like Microsoft Exchange, Office 365, and Google Calendar. The user interface background color and built-in room availability bars change between red and green to show room availability so users can easily locate and book an available room directly from the panel and, if that room is currently booked, users can quickly locate the nearest available room or the next available time with ease. CloudworX Manager allows the user to configure and deploy large numbers of devices simultaneously, either locally or remotely.

Featuring a capacitive touch screen, powerful Quad-Core processor, and a low profile design for a subtle aesthetic, Acendo Book can be mounted on any flat surface, including glass or stone, inside or outside a conference room or classroom. For added flexibility, the 7” touch panel can be deployed as a Modero G5 control panel or an Acendo Book scheduling panel using a built-in configuration tool—no additional software, programming or cost is required.

Common Applications

  • Ideal for businesses of all sizes wishing to optimize room utilization by implementing facility-wide room scheduling.
  • The MD-702 can be used as a scheduling panel for meeting rooms and auditoriums and is mass configurable and deployable through CloudworX Manager.

Downloads

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual - Acendo Book Scheduling Touch Panels
updated: Jul 16
    3.91 MB Jul 16
CAD Drawings
file type icon Pictorial Drawing - MD-702 (PDF)
updated: Oct 23
    97.4 KB Oct 23
Firmware
platform icon Acendo Book (MD Panels) CloudworX Firmware
version 2.0.0, updated: May 21
2.0.0     289 MB May 21
Quick Start Guides
file type icon Quick Start Guide Guide - MD-702
updated: Oct 23
    766 KB Oct 23
Data Sheets
file type icon MD-702 - Data Sheet
updated: Feb 23
    455 KB Feb 23

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Capacitive Touch Screen – A fast and flawless touch screen that enhances screen durability, smudge and scratch resistance
  • Flexible – Transform Acendo Book into a Modero G5 control interface using a built-in configuration tool – no programming or additional hardware required
  • Quad-Core Processor – Fast and responsive user interface
  • Secure – Updated firmware provides 802.1x and IPv6 availability
  • On-Panel Room Availability Indicators on the Front and Sides of the Panel – Side-panel LED indicators to allow users to easily determine when a room is available
  • Configuration and Deployment - Instead of configuring one-by-one, CloudworX Manager allows large numbers of devices to be configured simultaneously, either locally or remotely
  • Scheduling Panel that's Quick and Easy to Install – Reduces cost by streamlining installation, simplifying configuration, and eliminating the need for a controller or programming
  • Acendo Book integrates and synchronizes with the most popular scheduling platforms, including Microsoft Exchange, O365, and Google Calendar. Book panel can connect directly to RMS for installations that require Modern Authentication
  • Available Room Locator – Panel will suggest other currently available rooms at the push of a button
  • Diverse Mounting Options – Mount the panel virtually anywhere, including glass
  • On-Panel Room Booking – Quickly book available rooms directly from the panel

Specifications

Display Size (WH) Landscape 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal
Viewable Area (WH) Landscape 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal
Resolution 1024x600
Touch Overlay Capacitive
FG Numbers FG5969-55BL
Supported Scheduling Systems

Microsoft Exchange, Microsoft Office 365, Google Calendar

Modern Authentication support requires RMS. For more information about Acendo Book and Modern Authentication, visit https://help.harmanpro.com/modern-authentication-for-acendobook-roombook-panels

  • MSA-AMK2-07

    MSA-AMK2-07

    Any Mount Kit for 7" Modero Series Wall Mount Touch Panel
  • MSA-MMK2-07

    MSA-MMK2-07

    Multi Mount Kit for 7" Modero Series Wall Mount Touch Panel
  • PS-POE-AF-TC

    PS-POE-AF-TC

    PoE Injector, 802.3AF Compliant
  • CB-MXSA-07

    CB-MXSA-07

    Rough-In Box & Cover Plate for 7" Modero Series Wall Mount Touch Panel
  • MSA-RMK-07

    MSA-RMK-07

    Rack Mount Kit for 7" Modero Series Wall Mount Touch Panel
  • MXA-CLK

    MXA-CLK

    Modero X® and Modero S Series Screen Cleaning Kit
