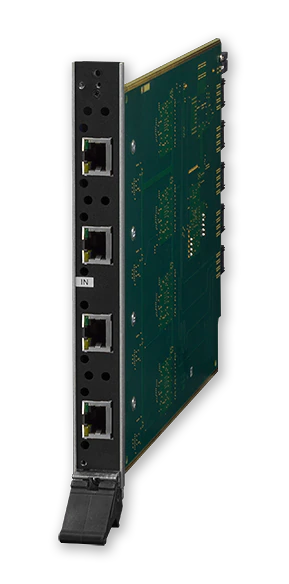

The DGX-I-DXL-4K is a 4K and Ultra High Definition (UHD) capable and HDCP compliant twisted pair cable input board for the Enova DGX 800, Enova DGX 1600, Enova DGX 3200, and Enova DGX 6400 Digital Media Enclosures. It has four connections per board designed to receive audio and video from DXLink Twisted Pair Transmitters while passing bi-directional control and Ethernet signals over one shielded Cat6A or Cat7 standard twisted pair cable up to 70m. DXLink Power is available from the DXLink Input Board to power DXLink Twisted Pair Transmitters.
큰 이미지
더 알아보기
The Enova DGX DXLink Twisted Pair Input Board is ideal for applications where source devices are located up to 70 meters away from the Enova DGX Digital Media Switcher and need to be distributed throughout a commercial or residential environment.
configuration_tool
다운로드
문서
| 크기 | |
Data Sheet
업데이트: 2026년 4월
|
336KB |
Manuals
| 크기 | |
|
|
868KB |
|
|
46.4KB |
Certifications
| 크기 | |
|
|
176KB |
|
|
143KB |
|
|
201KB |
|
|
276KB |
Comparison Charts
| 크기 | |
|
|
159KB |
Product Guides
| 크기 | |
|
|
Configuration Tools
| 크기 | |
|
|
위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.
특징
- 4K and Ultra High Definition (UHD) Support – Experience high-quality video resolution for 4K devices
- Only One Cable – Receive audio and video while passing control, Ethernet and power over one twisted pair cable
- Send HDMI signals up to 70 Meters – Extend the reach of the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling
- Standard Twisted Pair Cable – Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
- Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
- HDCP Compliant
사양
| Connectors | (4) RJ-45 Ports |
| Compatible Formats | HDMI Video, Audio, Ethernet, USB (HID), Power, Serial Control, and IR Control |
| Signal Type Support | DXLink Twisted Pair |
| Maximum Resolution Support | 3840 x 2160p @ 24/25/30 Hz 4096 x 2160p @ 24/25/30 Hz 3840 x 2160p @ 60 Hz, 4:2:0 4096 x 2160p @ 60 Hz, 4:2:0 |
| Audio Format Support | Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels) |
| Compatible DXLink TX/RX | 4K HDMI Decor Style Wallplate, 4K Solecis Digital Switchers (including 4x1, 5x1 and 8x1). Also compatible with (non 4K) DXLink Twisted Pair Transmitters. If not passing 4K, see datasheet for details. |
| FG Numbers | FG1061-570 |
recommended_accessories
-
DX-RX-4K
DXLink™ 4K HDMI Receiver Module -
DX-TX-DWP-4K
DXLink™ 4K HDMI 데코 스타일 월플레이트 송신기 (US) -
SDX-414-DX
Solecis® 4x1 4K HDMI 디지털 스위처 (DXLink™ 출력 포함) -
SDX-514M-DX
Solecis® 5x1 4K 멀티포맷 디지털 스위처(DXLink™ 출력 포함)
뉴스
컨설턴트 지원NOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
DGX-I-DXL-4K
한정 판매
Enova® DGX DXLink™ Twisted Pair 4K Input Board
