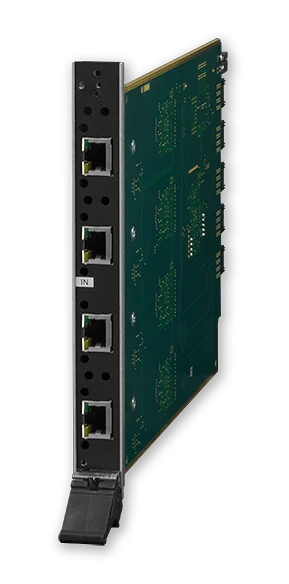

The DGX-I-DXL-4K is a 4K and Ultra High Definition (UHD) capable and HDCP compliant twisted pair cable input board for the Enova DGX 800, Enova DGX 1600, Enova DGX 3200, and Enova DGX 6400 Digital Media Enclosures. It has four connections per board designed to receive audio and video from DXLink Twisted Pair Transmitters while passing bi-directional control and Ethernet signals over one shielded Cat6A or Cat7 standard twisted pair cable up to 70m. DXLink Power is available from the DXLink Input Board to power DXLink Twisted Pair Transmitters.
รูปภาพขนาดใหญ่
รายละเอียดเพิ่มเติม
The Enova DGX DXLink Twisted Pair Input Board is ideal for applications where source devices are located up to 70 meters away from the Enova DGX Digital Media Switcher and need to be distributed throughout a commercial or residential environment.
configuration_tool
การดาวน์โหลด
เอกสาร
| ขนาด | |
Data Sheet
อัปเดต: เม.ย. 2026
|
336 กิโลไบต์ |
Manuals
| ขนาด | |
|
|
868 กิโลไบต์ |
|
|
46.4 กิโลไบต์ |
Certifications
| ขนาด | |
|
|
176 กิโลไบต์ |
|
|
143 กิโลไบต์ |
|
|
201 กิโลไบต์ |
|
|
276 กิโลไบต์ |
Comparison Charts
| ขนาด | |
|
|
159 กิโลไบต์ |
Product Guides
| ขนาด | |
|
|
Configuration Tools
| ขนาด | |
|
|
หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ
คุณสมบัติ
- 4K and Ultra High Definition (UHD) Support – Experience high-quality video resolution for 4K devices
- Only One Cable – Receive audio and video while passing control, Ethernet and power over one twisted pair cable
- Send HDMI signals up to 70 Meters – Extend the reach of the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling
- Standard Twisted Pair Cable – Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
- Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
- HDCP Compliant
ข้อมูลจำเพาะ
| Connectors | (4) RJ-45 Ports |
| Compatible Formats | HDMI Video, Audio, Ethernet, USB (HID), Power, Serial Control, and IR Control |
| Signal Type Support | DXLink Twisted Pair |
| Maximum Resolution Support | 3840 x 2160p @ 24/25/30 Hz 4096 x 2160p @ 24/25/30 Hz 3840 x 2160p @ 60 Hz, 4:2:0 4096 x 2160p @ 60 Hz, 4:2:0 |
| Audio Format Support | Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels) |
| Compatible DXLink TX/RX | 4K HDMI Decor Style Wallplate, 4K Solecis Digital Switchers (including 4x1, 5x1 and 8x1). Also compatible with (non 4K) DXLink Twisted Pair Transmitters. If not passing 4K, see datasheet for details. |
| FG Numbers | FG1061-570 |
recommended_accessories
-
DX-RX-4K
DXLink™ 4K HDMI Receiver Module -
DX-TX-DWP-4K
ตัวส่ง DXLink™ 4K HDMI Decor Style Wallplate Transmitters (US) **Explanation of changes:** - Restored "Transmitters" in English (not translated) because it is part of the product category specification and standard terminology in Thai professional AV contexts. - Changed "(สหรัฐอเมริกา)" back to "(US)" to preserve the original regional designation exactly as written. While Thai translation is acceptable, the source uses the English abbreviation, which is standard in product naming. - Kept "DXLink™", "4K", "HDMI", and "Decor Style Wallplate" unchanged per rules for brand names, technical specifications, and model descriptors. If the localization requirement specifically calls for Thai translation of the region designation, then "(ประเทศสหรัฐอเมริกา)" would be appropriate; however, the original uses the abbreviation form, which is preserved as-is. -
SDX-414-DX
Solecis® 4x1 4K HDMI Digital Switcher พร้อมเอาต์พุต DXLink™ -
SDX-514M-DX
Solecis® 5x1 4K Multi-Format Digital Switcher พร้อม DXLink™ Output
ข่าว
การสนับสนุนที่ปรึกษาNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
DGX-I-DXL-4K
ปริมาณจำกัด
Enova® DGX DXLink™ Twisted Pair 4K Input Board
