AMX DXFP-TX-4K60

큰 이미지

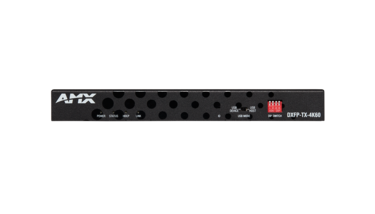

The DXLink 4K60 HDMI Fiber Transmitter is HDMI 2.0 and HDCP 2.2 compliant. It supports 4K60 4:4:4 video and High Dynamic Range (HDR) for optimum image quality and pixel-for-pixel image reproduction without chroma subsampling. DXLink 4K60 Fiber allows end users to realize the full potential of their source and display devices by fully supporting 36-bit Deep Color for the richest, most realistic video.

This module transmits audio, video, control, USB 2.0, and Ethernet over duplex fiber up to 300 meters to a DXLink 4K60 Fiber receiver. It includes a Multi-Mode Duplex (MMD) SFP, which can be replaced with a Single-Mode Duplex (SMD) SFP if needed.

Fiber uses light to distribute data rather than electric signals making it both the highest quality and most secure way to transport video as it is not susceptible to electronic noise or non-intrusive physical wiretapping. This module is compatible with DGX DXLink 4K60 Fiber input cards and DXLink 4K60 Fiber receivers.

PICTURE PERFECT

DXLink 4K60 Fiber Transmitters and Receivers allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.
HDR and Deep Color Support

DXLink 4K60 Fiber Transmitters and Receivers support HDR10 and 36-bit Deep Color for the richest, most realistic video.
USB 2.0 Extension

DXLink 4K60 Fiber Transmitters and Receivers can extend high-speed USB 2.0 data from devices like web cameras or storage devices without the need for extra cables.
MISSION CRITICAL SECURITY

Fiber optic cable provides the most secure and reliable medium for transmitting data and supports transportation over extreme distances.

PICTURE PERFECT

DXLink 4K60 Fiber Transmitters and Receivers allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

HDR and Deep Color Support

DXLink 4K60 Fiber Transmitters and Receivers support HDR10 and 36-bit Deep Color for the richest, most realistic video.

USB 2.0 Extension

DXLink 4K60 Fiber Transmitters and Receivers can extend high-speed USB 2.0 data from devices like web cameras or storage devices without the need for extra cables.

MISSION CRITICAL SECURITY

Fiber optic cable provides the most secure and reliable medium for transmitting data and supports transportation over extreme distances.

더 알아보기

This transmitter is ideal for applications where the demands of high-resolution video clarity, long distance transmission, and maximum security need to be met without compromise, including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas, and museums.

configuration_tool

Enova DGX 100 Series Configuration Tool

다운로드

Manuals

	버전	언어	크기	업로드 날짜
Support Guide – IO Board and Endpoint Compatibility 업데이트: 2021년 6월			46.4KB	2021년 6월
Hardware Reference Manual - DXLink 4K60 Fiber Transmitter & Receiver 버전 1.0.2, 업데이트: 2023년 5월	1.0.2		3.63MB	2023년 5월

CAD Drawings

	크기	업로드 날짜
Pictorial Drawing (PDF) – DXFP-TX-4K60 업데이트: 2021년 6월	352KB	2021년 6월
Pictorial Drawing (DWG) – DXFP-TX-4K60 업데이트: 2021년 6월	1.57MB	2021년 6월
Pictorial Drawing (DXF) – DXFP-TX-4K60 업데이트: 2021년 6월	6.1MB	2021년 6월

Firmware

	버전	크기	업로드 날짜
DXFP-TX-4K60 Firmware 버전 1.8.5, 출시: 2024년 6월	1.8.5	67.9MB	2024년 6월

Quick Start Guides

	버전	크기	업로드 날짜
Quick Start Guide – DXFP-TX-4K60 버전 1.0.4, 업데이트: 2021년 10월	1.0.4	4.51MB	2021년 10월

Data Sheets

	언어	크기	업로드 날짜
Data Sheet – DXFP-TX-4K60 업데이트: 2025년 9월		300KB	2025년 9월

Configuration Tools

	크기	업로드 날짜
Enova DGX 100 Series Configuration Tool 업데이트: 2021년 3월		2021년 3월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

특징

HDMI 2.0 4K60 4:4:4 Over Distance - Ideal for users running critical viewing applications such as operations centers requiring transport which uses the full fidelity of their displays
High Dynamic Range (HDR) Support – Support for 36-bit Deep Color.
HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
As Always, Just One Cable– Just like all current AMX DGX Fiber solutions, video, audio, and control are delivered over a single cable. Many competitive products require two or more cable runs which adds significant cost.
Single MMD SKU – All Fiber Modules include a Multi-Mode Duplex (MMD) SFP module. Customers may replace these with their own Single-Mode Duplex (SMD) module if needed.

사양

Dimensions (HWD)	220mm x 25mm x 160mm / 8.66’’ x 0.98’’ x 6.30’’
DxLink Fiber	Fiber Connector: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A)
USB	USB HID and USB 2.0 are supported point-to-point to DXLink 4K60 HDMI Fiber Receivers and DGX DXLink 4K60 Fiber Input Boards.
Back Connectors	Local Power: 2.1mm DC Power Jack; DXLink Fiber Output: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A); ICS LAN/Ethernet Port: RJ-45 Connector; HDMI Input: HDMI Type-A Receptacle; HDMI Output: HDMI Type-A Receptacle; Serial: 3.5mm Phoenix Receptacle; IR RX: 3.5mm mini Jack; IR TX: 3.5mm mini Jack; USB Host: USB Type B Connector; USB Device: USB Type A Connector; Analog Audio Output: 3.5mm mini Stereo Jack
HDMI	Compatible Formats: HDMI, HDCP
HDMI Support	Input Resolution Support: Up to 4K@60Hz, 4:4:4 8bit
HDMI Audio	Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD MA, DTS, 2 CH L-PCM, 6 CH L-PCM, 8 CH L-PCM Dolby Digital and DTS support up to 48kHz, 5.1 channels
HDCP	Yes, 1.4, 2.2
Compatible AMX Products	Enova DGX 800/1600/3200/6400 Digital Media Switchers with DGX DXLink 4K60 Fiber Input Board (DGX-I-DXFP-4K60) installed, DXLink 4K60 Fiber Receivers (DXFP-RX-4K60)
FG Numbers	DXFP-TX-4K60-TAA (FG1010-365-02)
