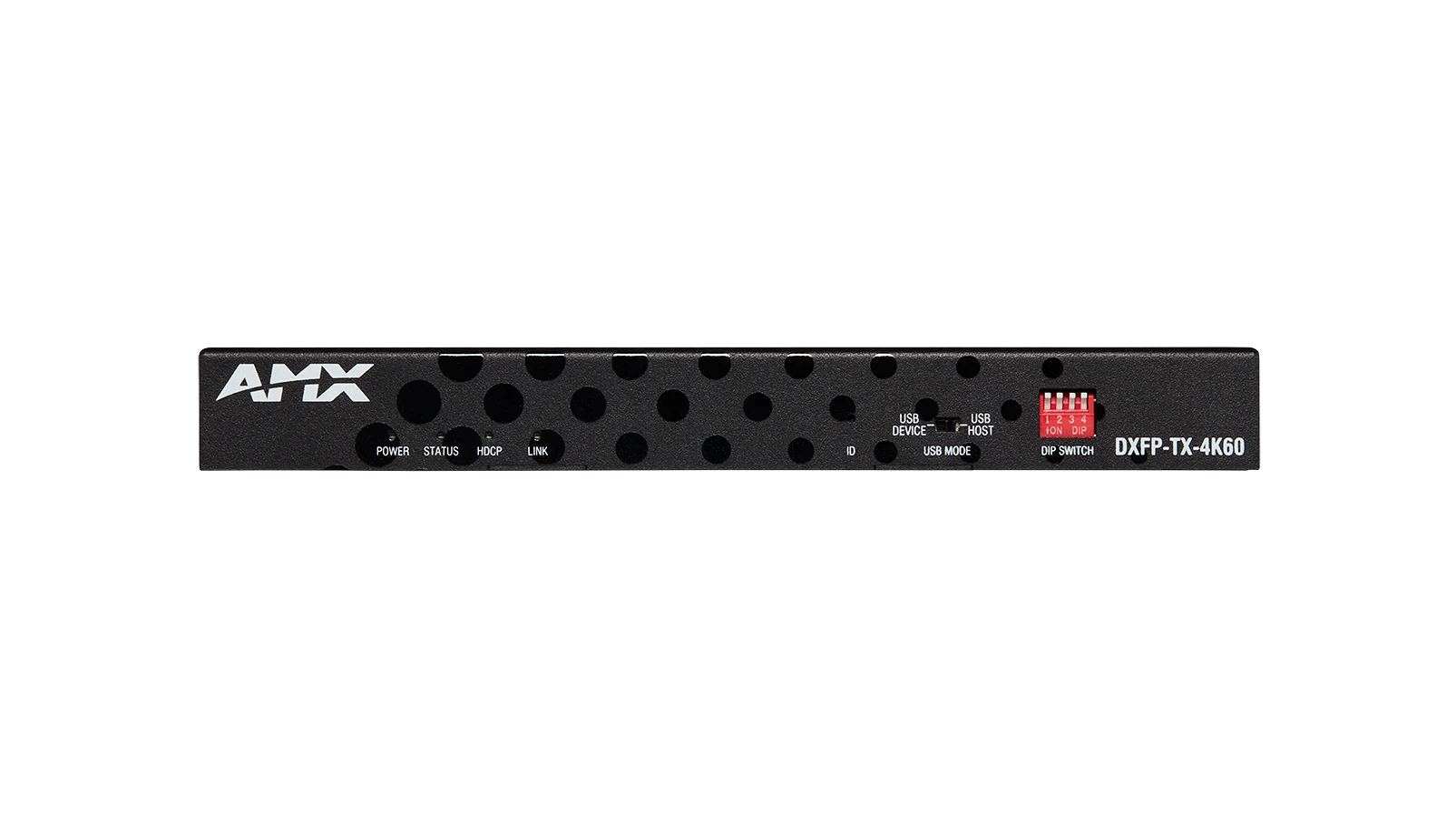

DXFP-TX-4K60

DXLink 4K60 HDMI Fiber Transmitter Module

Larger Images

The DXLink 4K60 HDMI Fiber Transmitter is HDMI 2.0 and HDCP 2.2 compliant. It supports 4K60 4:4:4 video and High Dynamic Range (HDR) for optimum image quality and pixel-for-pixel image reproduction without chroma subsampling. DXLink 4K60 Fiber allows end users to realize the full potential of their source and display devices by fully supporting 36-bit Deep Color for the richest, most realistic video.

This module transmits audio, video, control, USB 2.0, and Ethernet over duplex fiber up to 300 meters to a DXLink 4K60 Fiber receiver. It includes a Multi-Mode Duplex (MMD) SFP, which can be replaced with a Single-Mode Duplex (SMD) SFP if needed.

Fiber uses light to distribute data rather than electric signals making it both the highest quality and most secure way to transport video as it is not susceptible to electronic noise or non-intrusive physical wiretapping. This module is compatible with DGX DXLink 4K60 Fiber input cards and DXLink 4K60 Fiber receivers.

  • PICTURE PERFECT

    DXLink 4K60 Fiber Transmitters and Receivers allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

  • HDR and Deep Color Support

    DXLink 4K60 Fiber Transmitters and Receivers support HDR10 and 36-bit Deep Color for the richest, most realistic video.

  • USB 2.0 Extension

    DXLink 4K60 Fiber Transmitters and Receivers can extend high-speed USB 2.0 data from devices like web cameras or storage devices without the need for extra cables.

  • MISSION CRITICAL SECURITY

    Fiber optic cable provides the most secure and reliable medium for transmitting data and supports transportation over extreme distances.

PICTURE PERFECT

DXLink 4K60 Fiber Transmitters and Receivers allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

HDR and Deep Color Support

DXLink 4K60 Fiber Transmitters and Receivers support HDR10 and 36-bit Deep Color for the richest, most realistic video.

USB 2.0 Extension

DXLink 4K60 Fiber Transmitters and Receivers can extend high-speed USB 2.0 data from devices like web cameras or storage devices without the need for extra cables.

MISSION CRITICAL SECURITY

Fiber optic cable provides the most secure and reliable medium for transmitting data and supports transportation over extreme distances.

Common Applications

This transmitter is ideal for applications where the demands of high-resolution video clarity, long distance transmission, and maximum security need to be met without compromise, including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas, and museums.

Configuration Tool

Downloads

  Version Language Size Uploaded
Manuals
Support Guide – IO Board and Endpoint Compatibility
updated: Jun 09, 2021
    46.4 KB Jun 09, 2021
CAD Drawings
Pictorial Drawing (PDF) – DXFP-TX-4K60
updated: Jun 09, 2021
    352 KB Jun 09, 2021
Pictorial Drawing (DWG) – DXFP-TX-4K60
updated: Jun 09, 2021
    1.57 MB Jun 09, 2021
Pictorial Drawing (DXF) – DXFP-TX-4K60
updated: Jun 09, 2021
    6.1 MB Jun 09, 2021
Data Sheets
Data Sheet – DXFP-TX-4K60
en updated: Jun 09, 2021
  en  497 KB Jun 09, 2021
Configuration Tools
Enova DGX 100 Series Configuration Tool
updated: Mar 23, 2021
    Mar 23, 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • HDMI 2.0 4K60 4:4:4 Over Distance - Ideal for users running critical viewing applications such as operations centers requiring transport which uses the full fidelity of their displays
  • High Dynamic Range (HDR) Support – Support for 36-bit Deep Color.
  • HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
  • USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
  • As Always, Just One Cable– Just like all current AMX DGX Fiber solutions, video, audio, and control are delivered over a single cable. Many competitive products require two or more cable runs which adds significant cost.
  • Single MMD SKU – All Fiber Modules include a Multi-Mode Duplex (MMD) SFP module. Customers may replace these with their own Single-Mode Duplex (SMD) module if needed.

Specifications

Dimensions (HWD) 220mm x 25mm x 160mm / 8.66’’ x 0.98’’ x 6.30’’
DxLink Fiber Fiber Connector: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A)
USB USB HID and USB 2.0 are supported point-to-point to DXLink 4K60 HDMI Fiber Receivers and DGX DXLink 4K60 Fiber Input Boards.
Back Connectors Local Power: 2.1mm DC Power Jack; DXLink Fiber Output: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A); ICS LAN/Ethernet Port: RJ-45 Connector; HDMI Input: HDMI Type-A Receptacle; HDMI Output: HDMI Type-A Receptacle; Serial: 3.5mm Phoenix Receptacle; IR RX: 3.5mm mini Jack; IR TX: 3.5mm mini Jack; USB Host: USB Type B Connector; USB Device: USB Type A Connector; Analog Audio Output: 3.5mm mini Stereo Jack
HDMI Compatible Formats: HDMI, HDCP
HDMI Support Input Resolution Support: Up to 4K@60Hz, 4:4:4 8bit
HDMI Audio Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD MA, DTS, 2 CH L-PCM, 6 CH L-PCM, 8 CH L-PCM Dolby Digital and DTS support up to 48kHz, 5.1 channels
HDCP Yes, 1.4, 2.2
Compatible AMX Products Enova DGX 800/1600/3200/6400 Digital Media Switchers with DGX DXLink 4K60 Fiber Input Board (DGX-I-DXFP-4K60) installed, DXLink 4K60 Fiber Receivers (DXFP-RX-4K60)
FG Numbers DXFP-TX-4K60 (FG1010-365-01)
DXFP-TX-4K60-TAA (FG1010-365-02)
