MXD-701
단종

7" Modero X® Series G5 Wall Mount Touch Panel

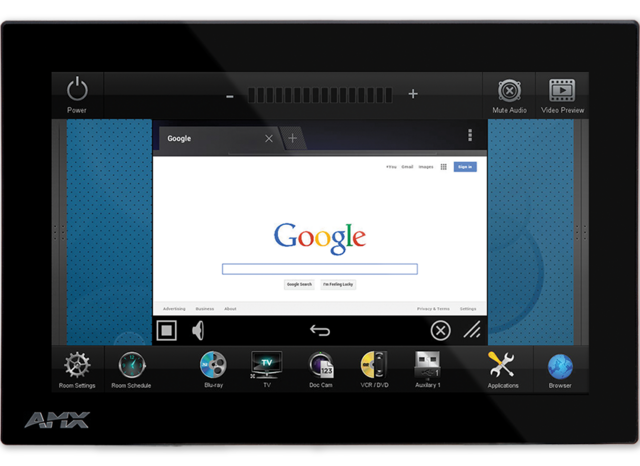

MXD-701-L_Front
큰 이미지

대체 제품

  • MXA-FMK-07

    MXA-FMK-07

    Flush Mount Kit for 7" Modero X® Series Wall Mount Touch Panels
  • MXA-RMK-07

    MXA-RMK-07

    Rack Mount Kit for 7" Modero X Series Landscape Touch Panel
  • MXA-MPL

    MXA-MPL

    Modero X® 및 Modero S 시리즈 멀티 프리뷰 라이브
  • PS-POE-AF-TC

    PS-POE-AF-TC

    PoE 인젝터, 802.3AF 준수
  • CB-MXSA-07

    CB-MXSA-07

    7" Modero Series 벽면 장착 터치 패널용 러프-인 박스 및 커버 플레이트
  • CB-MXP-07-F

    CB-MXP-07-F

    Flush Mount Rough-In Box and Cover Plate, for use with MXA-FMK-07 Flush Mount Kit for 7" Modero X® Series Wall Mount Touch Panels
  • MXA-CLK

    MXA-CLK

    Modero X® 및 Modero S Series 화면 청소 키트
  • MXA-USB-C

    MXA-USB-C

    USB Port Covers for the Modero X® and Modero S Series Touch Panels

The MXD-701 / 7" Modero X® Series G5 Wall Mount Touch Panel is a premium user interface that includes the G5 graphics engine and delivers superior performance. Designed for dedicated room control or scheduling, this elegantly-styled touch panel provides fast and smooth animations and transitions, along with a quad-core processor that provides more than enough processing power to run the most demanding applications today and in the future. The MXD-701 also includes a built-in web browser and document viewers, enabling users to access real-time information during meetings or lectures.

The MXD-701 is built for usability, offering edge-to-edge capacitive touch glass with multi-touch capabilities. The distinctive appearance will complement even the most sophisticated meeting facilities and homes, with a variety of mounting options for added security and convenience.

더 알아보기

  • The MXD-701 is ideal for boardrooms, conference rooms or auditoriums where a premium control surface is needed to provide access to multiple functions simultaneously while remaining elegantly unobtrusive.
  • In Higher Education, the MXD-701 is ideal for lecture halls, auditoriums, performing arts theaters and boardrooms that require extensive control capabilities.
  • In residences, it is perfect for kitchens, bedrooms or home offices where it can be used to manage systems throughout the home.
  • The MXD-701 can be used as a scheduling panel for high-end meeting rooms and auditoriums.
  • All Modero X Series Wall Mount panels are ideal for reception areas or other gathering places where master calendars can be displayed along with streamed information from the web like weather and stock quotes.

다운로드

문서
  크기 업로드 날짜
file type icon Comparison Chart
업데이트: 2026년 4월
173KB 2026년 4월
CAD Drawings
  크기 업로드 날짜
file type icon Pictorial Drawing - MXD-700-L, 7" Modero X Series Landscape Wall Mount Touch Panel (DWG)
업데이트: 2020년 10월
1.15MB 2020년 10월
file type icon Pictorial Drawing - MXD-700-L, 7" Modero X Series Landscape Wall Mount Touch Panel (DXF)
업데이트: 2020년 10월
4.22MB 2020년 10월
file type icon Pictorial Drawing - MXD-700-L, 7" Modero X Series Landscape Wall Mount Touch Panel (PDF)
업데이트: 2020년 10월
197KB 2020년 10월
file type icon Pictorial Drawing - MXD-700-P, 7" Modero X Series Portrait Wall Mount Touch Panel (DWG)
업데이트: 2020년 10월
1.23MB 2020년 10월
BIM Objects
  크기 업로드 날짜
file type icon MXD-701 - BIM Object
업데이트: 2019년 8월
2019년 8월
Software
  버전 크기 업로드 날짜
download icon for TPDesign5 TPDesign5
버전 1.5.111, 출시: 2018년 10월
1.5.111   46.1MB 2018년 10월
download icon for G5 Support Files G5 Support Files
버전 1.5.69, 출시: 2023년 6월
1.5.69   2.47MB 2023년 6월
Firmware
  버전 크기 업로드 날짜
download icon for Modero G5 (MD & MT) Touch Panel Firmware Modero G5 (MD & MT) Touch Panel Firmware
버전 1.8.55, 출시: 2022년 10월
1.8.55   276MB 2022년 10월
Data Sheets
  크기 업로드 날짜
file type icon Data Sheet - MXD-701
업데이트: 2020년 10월
650KB 2020년 10월
Quick Start Guides
  크기 업로드 날짜
file type icon Quick Start Guide - MXD-701 Modero X Series G5 Wall/Flush Mount Touch Panel
업데이트: 2020년 10월
268KB 2020년 10월
A&E (Architectural & Engineering) Specifications
  크기 업로드 날짜
file type icon A&E Spec - Modero X Series G5 7" Wall/Tabletop Touch Panels
업데이트: 2018년 6월
96.5KB 2018년 6월
Whitepapers
  크기 업로드 날짜
file type icon Digital Media Capabilities of the Modero X Series Touch Panels
업데이트: 2018년 4월
1.22MB 2018년 4월
Safety Sheets
  크기 업로드 날짜
file type icon Safety Instructions - Modero X Series G5 Touch Panels
업데이트: 2020년 10월
102KB 2020년 10월
Touch Panel Files
  크기 업로드 날짜
file type icon MXT/D-701 G5 Portrait Demo Touch Panel File (600x1024)
업데이트: 2018년 7월
2.79MB 2018년 7월
file type icon G5 Listview Button/Dynamic Data Demos Touch Panel File
업데이트: 2018년 7월
66.2MB 2018년 7월
file type icon MXD-701 RMS Scheduling Touch Panel File (1024x600)
업데이트: 2018년 7월
2.42MB 2018년 7월
file type icon MXD-701 RMS Scheduling Touch Panel File (600x1024)
업데이트: 2018년 7월
2.62MB 2018년 7월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

특징

  • G5 Graphics Engine and Quad Core Processing – The most powerful processing in the industry delivers smooth gesturing, swiping, dynamic reordering, enhanced animation with transitions all at higher speeds for an experience any user will enjoy
  • Simplified Enterprise Touch Panel and Firmware Updates – Deploy and update touch panel files and firmware files from a network URL for simplified company-wide updates
  • Built-in Web Browser, Document Viewers and Enzo Sharing – Conveniently simplifies accessing and presenting real-time content and documents during meetings. Simply preview files accessed via the native web browser, USB, or cloud storage apps before sending content directly to Enzo. An upcoming firmware release will allow apps to be updated or disabled using the onboard G5 App Update Manager.
  • Adjustable Security Modes – With the ability to select from high security or custom modes, administrators can customize the panel’s security levels for access, networking and communication.
  • Perfect From Any Angle – Includes In-Plane Switching (IPS), which delivers the widest viewing angles and the most accurate color reproduction on the market
  • Enhanced User Experience – The Modero X Series features intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities
  • Generous Mounting Options – In addition to wall mount, you can mount the 7" Modero X Series Landscape Wall/Flush Mount Touch Panel directly to an equipment rack using the optional MXA-RMK-07 Modero X Series Rack Mount Kit (FG5969-63)
  • View and Select Dynamic Data with Listview Buttons – Display a listing of entries generated by a dynamic data source (e.g. phonebook contacts, call logs, RSS feed or other real time data sources) enabling the user to scroll or search to make a selection. Demos are available in the UI Resource Center

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

사양

Display Size (WH) Landscape: 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal, Portrait: 4.8" x 7.3" (122 mm x 186 mm), 8.8" (222 mm) diagonal
Viewable Area (WH) Landscape: 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal. Portrait: 3.54" x 6.05" (90 mm x 154 mm), 7.0" (178 mm) diagonal
Resolution Landscape: 1024x600, Portrait: 600x1024
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio Landscape: 16:9, Portrait: 9:16
Touch Overlay Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine AMX G5
Front Panel Components Light Sensor, Proximity Detector, Sleep button. See Data Sheet for details.
Power Consumption Full-On: 11.5 W maximum
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
Networking Support for static/dynamic IPv4 and static IPv6
FG Numbers

FG5968-55 (Landscape)
FG5968-54 (Portrait)
HARMAN Professional Solutions:
ffind_dealer
hhave_question
c컨설턴트 지원

NOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
