HPX-AV100-RGB+A (停产)

RGBHV(含立体声模块)

HPX-AV100-RGB+A

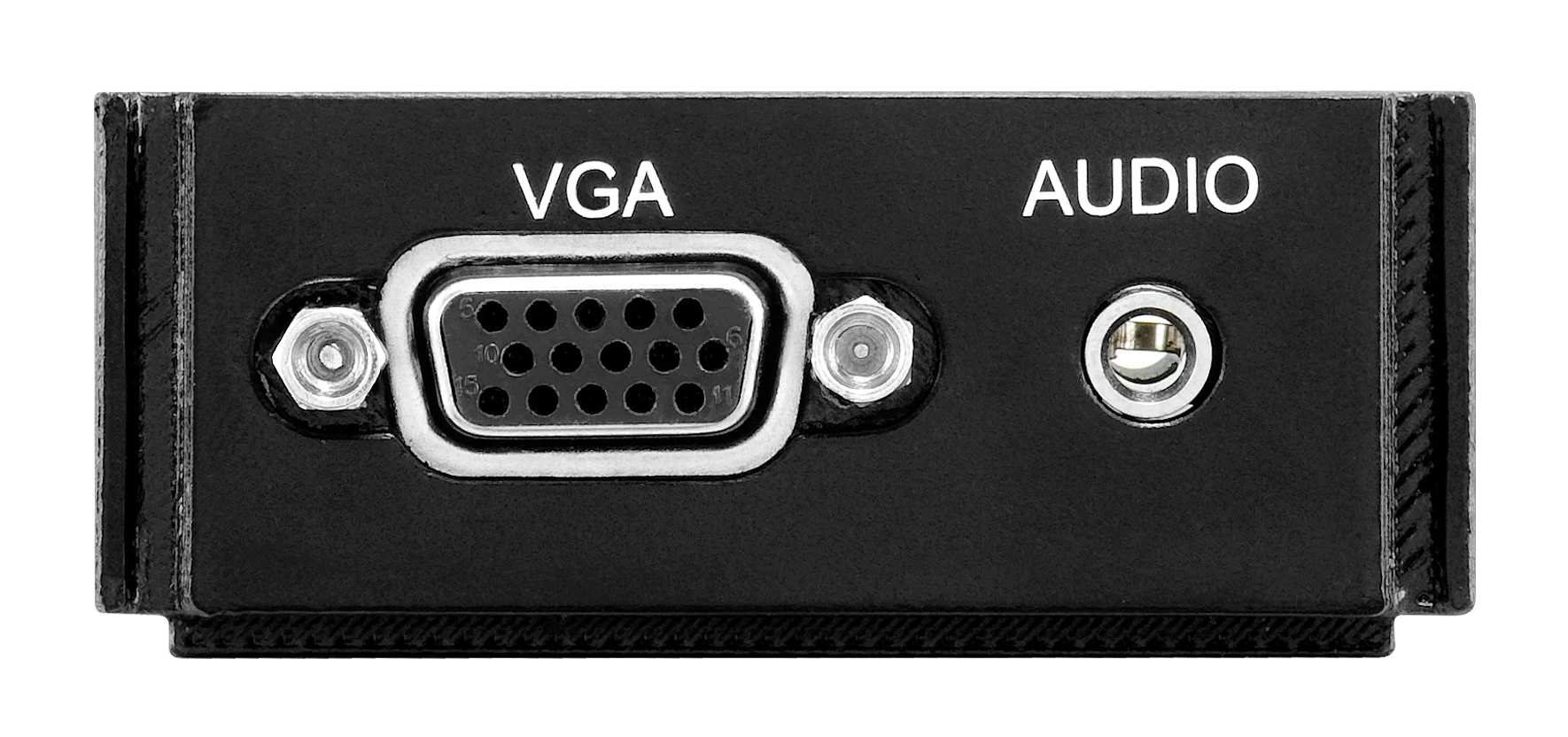

较大的图像

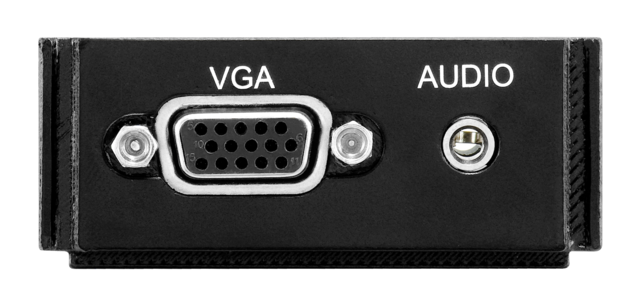

HPX-AV100-RGB+A 模块为 HydraPort® 机箱提供 RGBHV 视频和立体声音频连接。

更多详情

如需掌握重要的安装、配置和编程技巧,请学习哈曼专业大学的以下课程:

  • HydraPort 入门

如需了解本课程以及哈曼专业大学其他课程的时间安排和注册事宜,请访问 AMX 学院

Videos





configuration_tool

下载

  Version Language Size Uploaded
Data Sheets
file type icon HPX-1600 16 Module Retractable Connection Ports (english)
updated: 10月 2020
    838.3 KB 10月 2020
file type icon HPX-1200 12 Module Connection Ports (english)
updated: 10月 2020
    1.0 MB 10月 2020
file type icon HPX-900 9 Module Connection Ports (english)
updated: 10月 2020
    1.1 MB 10月 2020
file type icon HPX-600 6 Module Connection Ports (english)
updated: 10月 2020
    1007.4 KB 10月 2020
Quick Start Guides
file type icon Quick Start Guide - HPX-AV100-RGB+A RGB AV Module
version C, updated: 10月 2020
  713.5 KB 10月 2020
Safety Sheets
file type icon Safety Instructions - HydraPort
version E, updated: 1月 2024
  1.2 MB 1月 2024
Configuration Tools
file type icon HydraPort Connection Preview Configuration Tool
updated: 3月 2021
    3月 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

尺寸

1 HydraPort Unit (See the HPX-600, HPX-900, HPX-1200, HPX-1600 specifications section for an explanation of HydraPort units)

前面板组件
  • Female HD-15 VGA connector
  • Female 1/8" Stereo Mini-Jack
后面板组件
  • 9-Position Phoenix screw-terminal Connector for Video Signals
  • 3-Position Phoenix screw-terminal Connector for Audio Signals
FG Numbers FG552-11
HARMAN Professional Solutions:

HPX-AV100-RGB+A (停产)

RGBHV(含立体声模块)
