MSD-431 (停产)

 4.3" Modero X® 系列 G4 壁挂触控面板

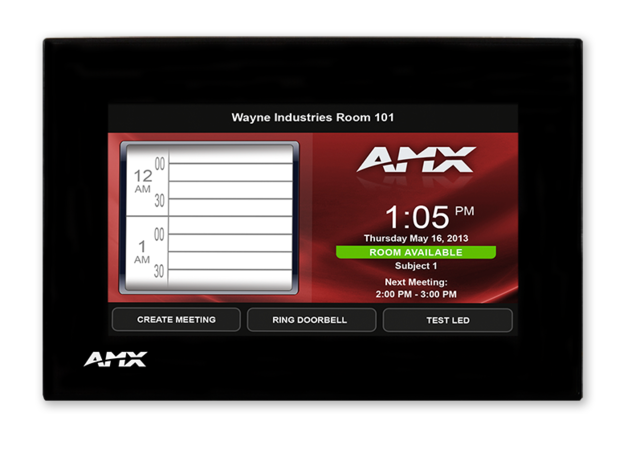

较大的图像

MSD-431/4.3” 壁挂式触控面板是一款多功能低成本控制界面,适用于调度和房间控制。MSD-431 有大量安装选项可供选择,可放置于会议室或教室内外任何平整表面(包括玻璃)上,内置房间可用性显示栏根据房间当前预订情况显示绿色或红色。主要功能包括效果极佳的 24 位色深、PoE 连接、视频流和 VoIP 支持 - 全部具有良好的性价比。

更多详情

  • MSD-431 可确保对成本最敏感的会议空间都能受益于专用调度面板,房间预订情况一目了然,用户甚至可以从面板上直接预订房间。
  • MSD-431 还非常适合用作大型会议室或教室墙壁上或指挥台或讲台内安装的辅助触控面板。

下载

  Version Language Size Uploaded
file type icon Data Sheet
updated: 9月 2023
    355.3 KB 9月 2023
file type icon Comparison Chart
updated: 9月 2023
    173.5 KB 9月 2023
Manuals
file type icon Installation Hardware Reference Manual - Modero S Series Touch Panels
updated: 10月 2020
    2.0 MB 10月 2020
CAD Drawings
file type icon Pictorial Drawing - MSD-431, 4.3" Modero S Series Landscape Wall Mount Touch Panel (DXF)
updated: 10月 2020
    1.1 MB 10月 2020
file type icon Pictorial Drawing - MSD-431, 4.3" Modero S Series Landscape Wall Mount Touch Panel (PDF)
updated: 10月 2020
    151.7 KB 10月 2020
BIM Objects
file type icon MSD-431 - BIM Object
updated: 8月 2019
    8月 2019
Software
platform icon G4 Support Files
version 3.3.62, updated: 7月 2018
3.3.62     35.7 MB 7月 2018
Firmware
platform icon Modero S Series Touch Panels Firmware
version 2.108.40, updated: 3月 2018
2.108.40     47.7 MB 3月 2018
Programming Guides
file type icon Configuration and Programming Guide - Modero S/X Series G4 Touch Panels HydraPort Touch Connection Ports
updated: 10月 2020
    2.2 MB 10月 2020
Certifications
file type icon Modero S Series 4.3"/7"/10.1" Touch Panels UL Certificate of Compliance
updated: 4月 2018
    415.8 KB 4月 2018
file type icon Modero S Series 4.3" Touch Panel CE Declaration of Conformity
updated: 4月 2018
    255.3 KB 4月 2018
file type icon Modero S Series 4.3"/7"/10.1" Touch Panels IECEE CB Test Certificate
updated: 4月 2018
    191.2 KB 4月 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: 10月 2020
    2.6 MB 10月 2020
Application Guides
file type icon AMX and the Perfect Meeting Room
updated: 10月 2020
    426.4 KB 10月 2020
Quick Start Guides
file type icon Quick Start Guide - MSD-431 Modero S Series Wall Mount Touch Panel
updated: 10月 2020
    301.3 KB 10月 2020
Touch Panel Files
file type icon MSD-431 RMS Scheduling Touch Panel File (480x272)
updated: 10月 2020
    2.2 MB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • 强大的图形功能 - Modero S 系列面板采用 G4 图形引擎,可播放流式视频并提供卓越的 24 位色深
  • 高雅的 180° 视角房间可用性指示栏 - 往大厅轻松一瞥即可知道会议室是否占用
  • 可安装到任何光滑表面(包括玻璃) - 使用选配的多安装套件将 Modero S 系列壁挂式触控面板安装至任何光滑表面
  • 优雅灵敏的用户界面 - 独创的 SmoothTouch™ 显示器支持单触控手势并提供极高的响应速度
  • 贴合建筑设计风格 - 无论预算为何,均支持在整个设施安装 Modero S 与 Modero X 触控面板,无需担心风格冲突

性能

显示屏尺寸(宽高) 5" x 3.4" (128 mm x 87 mm), 6" (152 mm) 对角线
可视区域(宽高) 3.7" x 2.1" (95 mm x 54 mm), 4.3" (109 mm) 对角线
分辨率 480x272
可视角度 40°/80°/65°/65°(上/下/左/右)
纵横比 16:9
触控覆盖 电阻式
图形引擎 AMX G4
前面板组件 休眠按钮,可编程红/绿 LED 指示灯。详情请参阅数据表。

功耗

全开:5 W(最大)
温度范围 工作温度:32° F 至 104° F(0° C 至 40° C)
FG Numbers FG2265-03
