AMX MSD-431

Größere Bilder

This product is discontinued with a projected last order date of March 31, 2019.
The suggested alternative is MD-702.

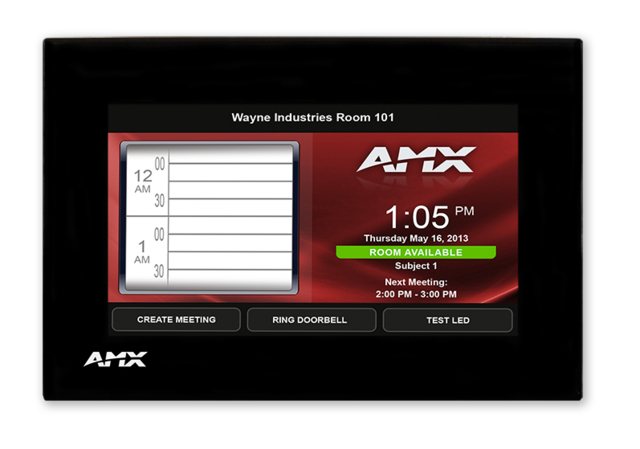

The MSD-431 / 4.3" Modero S Series Wall Mount Touch Panel is a versatile, yet affordable control surface that is equally suited for scheduling or room control. With a generous selection of mounting options, the MSD-431 can be placed on any flat surface (including glass) inside or outside a conference room or classroom, and the built-in room availability bar shows green or red depending on if the room is currently booked. Key features include a brilliant 24-color depth, PoE connectivity, video streaming, and VoIP support – all at an economical price point.

Mehr Details

The MSD-431 allows even the most cost sensitive meeting spaces to benefit from a dedicated scheduling panel, allowing users to view the room schedule at a glance and even reserve the room right from the panel.
The MSD-431 is also ideal as a second touch panel that is mounted on the wall or in a podium or lectern in a large conference room or classroom.

Downloads

Dokumente

	Größe	Hochgeladen
Data Sheet aktualisiert: Apr 2026	355 KB	Apr 2026
Comparison Chart aktualisiert: Apr 2026	173 KB	Apr 2026

CAD Drawings

	Größe	Hochgeladen
Pictorial Drawing - MSD-431, 4.3" Modero S Series Landscape Wall Mount Touch Panel (PDF) aktualisiert: Okt 2020	152 KB	Okt 2020
Pictorial Drawing - MSD-431, 4.3" Modero S Series Landscape Wall Mount Touch Panel (DXF) aktualisiert: Okt 2020	1,14 MB	Okt 2020

BIM Objects

	Größe	Hochgeladen
MSD-431 - BIM Object aktualisiert: Aug 2019		Aug 2019

Software

	Version	Größe	Hochgeladen
G4 Support Files Version 3.3.62, veröffentlicht: Jul 2018	3.3.62	35,7 MB	Jul 2018

Firmware

	Version	Größe	Hochgeladen
Modero S Series Touch Panels Firmware Version 2.108.40, veröffentlicht: Mär 2018	2.108.40	47,7 MB	Mär 2018

Quick Start Guides

	Größe	Hochgeladen
Quick Start Guide - MSD-431 Modero S Series Wall Mount Touch Panel aktualisiert: Okt 2020	301 KB	Okt 2020

Certifications

	Größe	Hochgeladen
Modero S Series 4.3"/7"/10.1" Touch Panels IECEE CB Test Certificate aktualisiert: Apr 2018	191 KB	Apr 2018
Modero S Series 4.3" Touch Panel CE Declaration of Conformity aktualisiert: Apr 2018	255 KB	Apr 2018
Modero S Series 4.3"/7"/10.1" Touch Panels UL Certificate of Compliance aktualisiert: Apr 2018	416 KB	Apr 2018

Touch Panel Files

	Größe	Hochgeladen
MSD-431 RMS Scheduling Touch Panel File (480x272) aktualisiert: Okt 2020	2,19 MB	Okt 2020

Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.

Eigenschaften

Powerful Graphics – Powered by the G4 graphics engine, the Modero S Series features streaming video and brilliant 24-bit color depth
Elegant Room Availability Bar with 180° Visibility – Easily glance down the hall to see if meeting spaces are occupied
Mount to Any Smooth Surface Including Glass – Use the optional Multi Mount Kit and mount the Modero S wall touch panel to any smooth surface
Elegant & Responsive User Interface – Exclusive SmoothTouch™ display supports single touch gesturing and delivers responsive performance
Architectural Design Consistency – Install both Modero S and Modero X touch panels throughout a facility for consistent style on any budget

Spezifikationen

Display Size (WH)	5" x 3.4" (128 mm x 87 mm), 6" (152 mm) diagonal
Viewable Area (WH)	3.7" x 2.1" (95 mm x 54 mm), 4.3" (109 mm) diagonal
Resolution	480x272
Viewing Angle	40°/80°/65°/65° (Up/Down/Left/Right)
Aspect Ratio	16:9
Touch Overlay	Resistive
Graphics Engine	AMX G4
Front Panel Components	Sleep Button, Programmable Red/Green LEDs. See Data Sheet for details.
Power Consumption	Full-On: 5 W (max)
Temperature Range	Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers	FG2265-03
