MSD-431 (discontinued)

4.3" Modero S® Series G4 Wall Mount Touch Panel

Larger Images

This product is discontinued with a projected last order date of March 31, 2019.
The suggested alternative is MD-702.

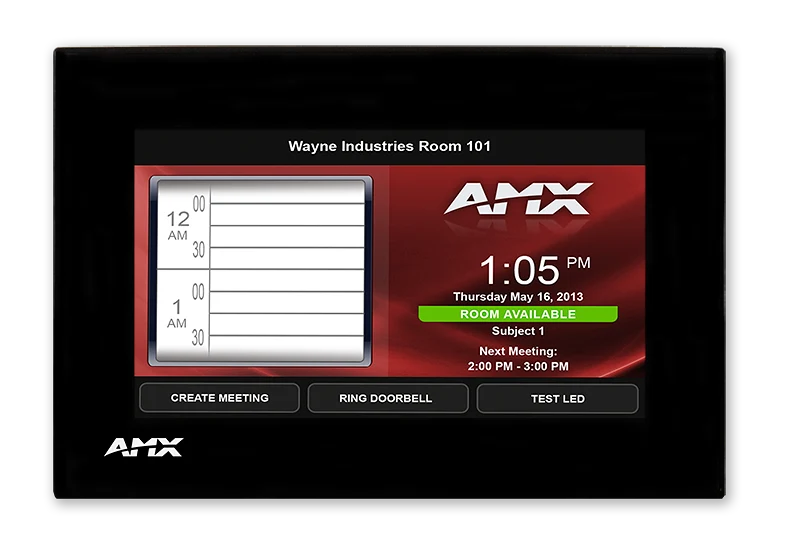

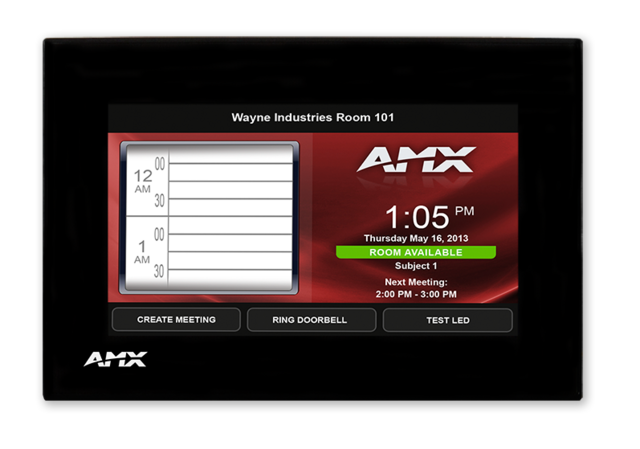

The MSD-431 / 4.3" Modero S Series Wall Mount Touch Panel is a versatile, yet affordable control surface that is equally suited for scheduling or room control. With a generous selection of mounting options, the MSD-431 can be placed on any flat surface (including glass) inside or outside a conference room or classroom, and the built-in room availability bar shows green or red depending on if the room is currently booked. Key features include a brilliant 24-color depth, PoE connectivity, video streaming, and VoIP support – all at an economical price point.

Common Applications

  • The MSD-431 allows even the most cost sensitive meeting spaces to benefit from a dedicated scheduling panel, allowing users to view the room schedule at a glance and even reserve the room right from the panel.
  • The MSD-431 is also ideal as a second touch panel that is mounted on the wall or in a podium or lectern in a large conference room or classroom.

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 09, 2018
    355 KB Jul 09, 2018
Comparison Chart
updated: Jul 09, 2018
    173 KB Jul 09, 2018
Manuals
Installation Hardware Reference Manual - Modero S Series Touch Panels
updated: Mar 30, 2018
    2.04 MB Mar 30, 2018
CAD Drawings
Pictorial Drawing - MSD-431, 4.3" Modero S Series Landscape Wall Mount Touch Panel (DXF)
updated: Apr 03, 2018
    1.14 MB Apr 03, 2018
Pictorial Drawing - MSD-431, 4.3" Modero S Series Landscape Wall Mount Touch Panel (PDF)
updated: Apr 03, 2018
    152 KB Apr 03, 2018
Bim Objects
MSD-431 - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Software
G4 Support Files
version 3.3.62, updated: Jul 16, 2018
3.3.62    35.7 MB Jul 16, 2018
Modero S Series Touch Panels Firmware
version 2.108.40, updated: Mar 16, 2018
2.108.40    47.7 MB Mar 16, 2018
Programming Guides
Configuration and Programming Guide - Modero S/X Series G4 Touch Panels HydraPort Touch Connection Ports
updated: Mar 30, 2018
    2.16 MB Mar 30, 2018
Certifications
Modero S Series 4.3"/7"/10.1" Touch Panels UL Certificate of Compliance
updated: Apr 26, 2018
    416 KB Apr 26, 2018
Modero S Series 4.3" Touch Panel CE Declaration of Conformity
updated: Apr 26, 2018
    255 KB Apr 26, 2018
Modero S Series 4.3"/7"/10.1" Touch Panels IECEE CB Test Certificate
updated: Apr 26, 2018
    191 KB Apr 26, 2018
Whitepapers
AMX AV/IT Administrator's Guide
updated: Apr 25, 2018
    2.61 MB Apr 25, 2018
Application Guides
AMX and the Perfect Meeting Room
updated: Apr 12, 2018
    426 KB Apr 12, 2018
Quick Start Guides
Quick Start Guide - MSD-431 Modero S Series Wall Mount Touch Panel
updated: Mar 30, 2018
    301 KB Mar 30, 2018
Touch Panel Files
MSD-431 RMS Scheduling Touch Panel File (480x272)
updated: Jul 18, 2018
    2.19 MB Jul 18, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Powerful Graphics – Powered by the G4 graphics engine, the Modero S Series features streaming video and brilliant 24-bit color depth
  • Elegant Room Availability Bar with 180° Visibility – Easily glance down the hall to see if meeting spaces are occupied
  • Mount to Any Smooth Surface Including Glass – Use the optional Multi Mount Kit and mount the Modero S wall touch panel to any smooth surface
  • Elegant & Responsive User Interface – Exclusive SmoothTouch™ display supports single touch gesturing and delivers responsive performance
  • Architectural Design Consistency – Install both Modero S and Modero X touch panels throughout a facility for consistent style on any budget

Specifications

Display Size (WH) 5" x 3.4" (128 mm x 87 mm), 6" (152 mm) diagonal
Viewable Area (WH) 3.7" x 2.1" (95 mm x 54 mm), 4.3" (109 mm) diagonal
Resolution 480x272
Viewing Angle 40°/80°/65°/65° (Up/Down/Left/Right)
Aspect Ratio 16:9
Touch Overlay Resistive
Graphics Engine AMX G4
Front Panel Components Sleep Button, Programmable Red/Green LEDs. See Data Sheet for details.
Power Consumption Full-On: 5 W (max)
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers FG2265-03

MSD-431 (discontinued)

4.3" Modero S® Series G4 Wall Mount Touch Panel
